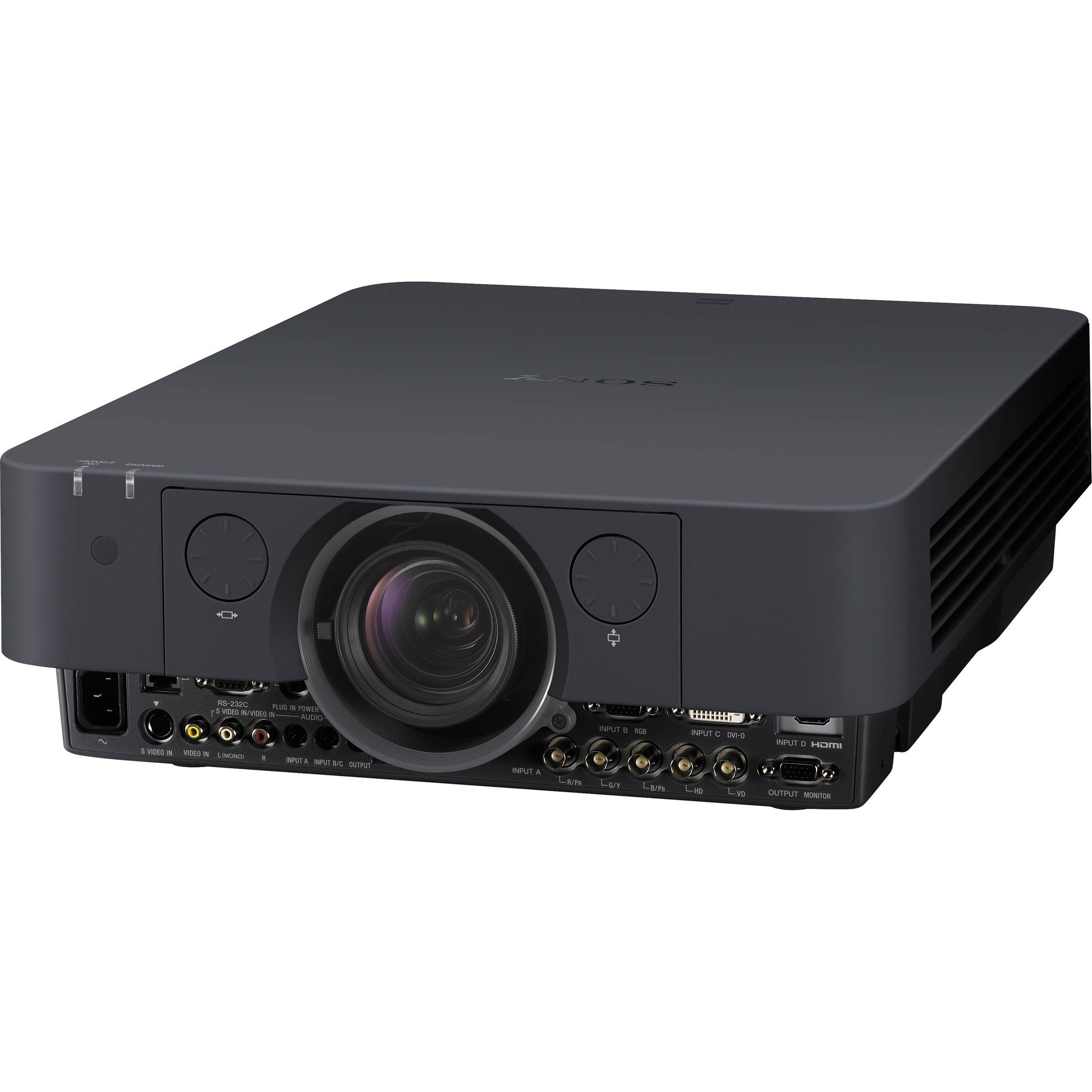

The VPL-FHZ55 4000 Lumen WUXGA Data 3LCD Projector from Sony uses a laser light source and 3LCD optical system to produce bright images with vivid colors. Its laser light has an approximate 20,000 hour life span in auto mode. This projector features a native WUXGA 1920 x 1200 resolution and has a notable 8000:1 contrast ratio, showcasing its ability to handle light and dark on-screen content. The VPL-FHZ55 also features a 1.6x and a 1.39 to 2.23:1 throw ratio. Furthermore, this projector can project up to a 600" image, providing an immersive viewing experience.
This unit is OPEN BOXED in new condition.
Sony VPLFHZ55/W
Image Display
| Display System | -Chip 0.76" LCD |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Supported Resolutions | 640 x 350 640 x 400 640 x 480 800 x 600 832 x 624 1024 x 768 1152 x 864 1152 x 900 1280 x 960 1280 x 1024 1400 x 1050 1600 x 1200 1280 x 768 1280 x 720 1920 x 1080 1366 x 768 1440 x 900 1680 x 1050 1280 x 800 1600 x 900 1920 x 1200 |
| Max Brightness | 4000 Lumens 3000 Lumens |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 8000:1 |
| Scan | Horizontal: 14 to 93 kHz Vertical: 47 to 93 Hz |
Lens
| Focus | Manual |
| Lens Shift | Vertical: 0 to 60% Horizontal: 32 to 32% Horizontal: + 32% |
| Throw Ratio | 1.39 - 2.23:1 |
| Projection Size | 40 - 600" / 101.60 - 1524.00 cm |
Features
| Keystone Correction | Vertical: ± 30° Horizontal: ± 30° |
| Picture-in-Picture | Yes |
| Ceiling Mountable | Yes |
| Closed Captioning | Yes |
Input/Output Connectors
| Inputs/Outputs | 1 x 5BNC Video (Input) 1 x VGA (DE-15) Video (Input) 1 x DVI-D Video (Input) 1 x HDMI Video (Input) 1 x S-Video (4-Pin DIN) Video (Input) 1 x Composite (RCA) Video (Input) 1 x RCA Stereo (L/R) Audio (Input) 2 x 1/8" / 3.5 mm Mini Audio (Input) 1 x 1/8" / 3.5 mm Mini Audio (Output) 1 x RS-232C (Unspecified Connector) Control 1 x Ethernet (RJ45) LAN 1 x 1/8" / 3.5 mm Mini Control (Input) 1 x VGA (DE-15) Video (Output) |
General
| Expected Lamp Life | Medium Brightness: 20,000 Hours |
| Supported Languages | Arabic Dutch English Finnish French German Hungarian Indonesian Italian Japanese Korean Norwegian Polish Portuguese Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish Vietnamese |
| Heat Dissipation | 1528 BTU (AC 100 to 120V) 1450 BTU (AC 220 to 240V) |
| Power Consumption |
Medium Brightness: 449 W Standby Mode (Lamp Off): 8.5 W Standby Mode (Lamp Off): 0.15 W |
| Temperature | Operating 32 to 104°F (0 to 40°C) Humidity: 20 - 80% Storage 14 to 140°F (-10 to 60°C) |
| Dimensions (W x H x D) | 15.4 x 5.8 x 19.7" / 390.0 x 148.0 x 500.0 mm 15.4 x 5.3 x 19.2" / 390.0 x 134.0 x 487.0 mm Without Protrusions |
| Weight | 25.00 lb / 11.34 kg |
Packaging Info
| Package Weight | 31.44 lb |
| Box Dimensions (LxWxH) | 23.3 x 19.75 x 11.3" |
