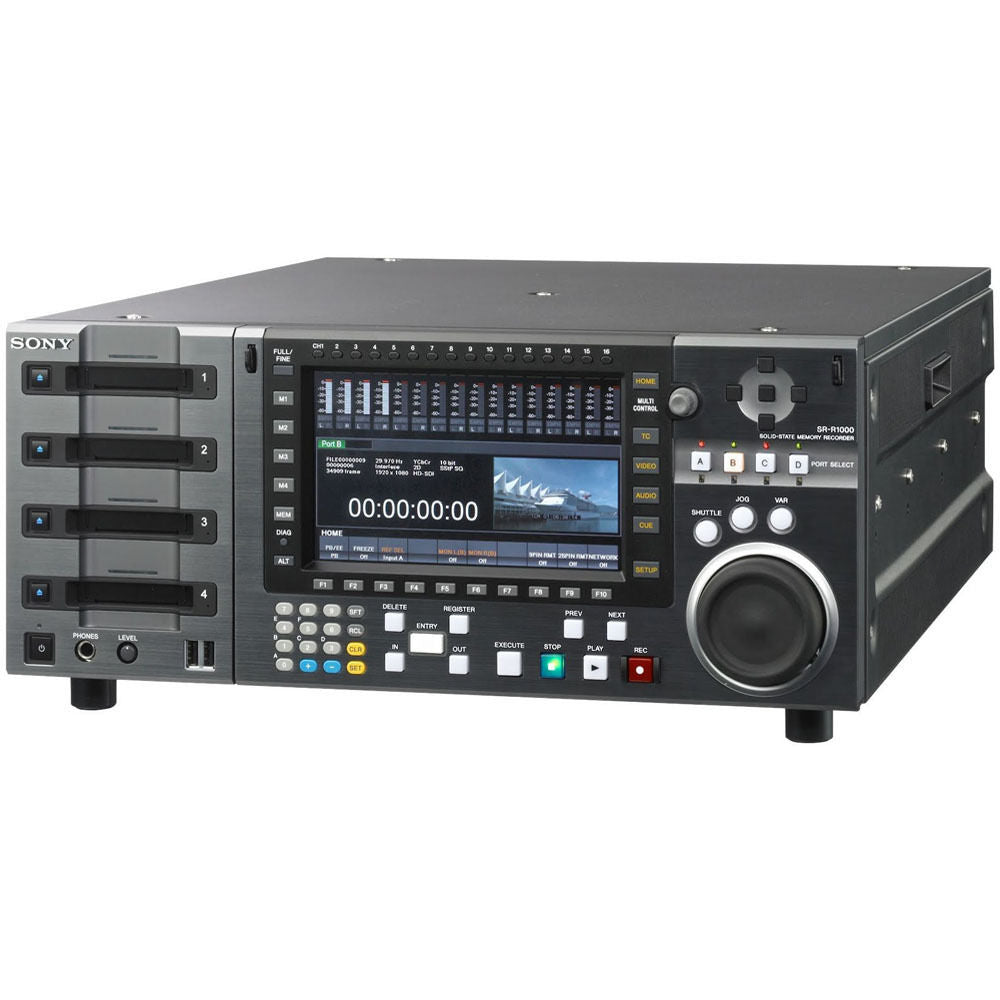

The Sony SR-R1000 is an ultra high-speed, new-generation storage system suitable for a variety of applications in live, broadcast and post-production, including multi-camera ISO recording, instant replay clip feeder, high-speed multi-ingest, cache storage and more. Thanks to the outstandingly high bandwidth of the SRMemory platform, the SR-R1000 can handle 2D, 3D, 1080p and 4K, all in one unit, offering unparalleled professional creativity.
- Recording Format
- MPEG-4 SStP format
- Power Requirements
- 100-240 V AC
- Power Consumption
- Max. 480 W
- Operating Temperature
- 41 to 104deg.F (5 to 40deg.C)
- Storage Temperature
- -4 to +140deg.F (-20 to +60deg.C)
- Humidity
- 25-90% (no condensation)
- Video (422 Format): Sampling Frequency
- Y: 74.25 MHz
Pb/Pr: 37.125 MHz - Video (422 Format): Quantization
- 10 bits/sample
- Video (422 Format): Compression
- MPEG-4 SStP
- Video (444 Format): Sampling Frequency
- RGB: 74.25 MHz
- Video (444 Format): Quantization
- 10 bits/sample
- Video (444 Format): Compression
- MPEG-4 SStP
- Digital Audio: Sampling Frequency
- 48 kHz
- Digital Audio: Quantization
- 24 bits/sample
- Digital Audio: Headroom
- 20/18/16/15/12/9 dB selectable
- Analog Audio: D/A Quantization
- 24 bits/sample
- Reference Input
- 2 BNC (including one loop-through) 75 Ohms with terminal switch
HD (tri-level sync)/SD (Black Burst) - Remote (1/2/3/4)
- 4 D-sub 9-pin (female)
- Video Control
- 1 D-sub 9-pin (female)
- GPIO (25P)
- 1 D-sub 25-pin (female)
- Network (1/2)
- RJ-45 jack (x2), 1000BASE-T
- Maintenance
- 3 USB type
1 RJ-45 jack - Analog Monitor Output
- 2 XLR-3-pin (male)
- Headphone Jack
- 1 Phone jack
- Dimensions (W x H x D)
- Eexcluding protrusion: 16.9 x 6.9 x 21.3" / 42.92 x 17.52 x 54.10cm
- Weight
- With all options: 50lbs / 22.67kg
