Sony RM-IP500/1 Professional Remote Controller

Inquire about Sony RM-IP500/1 Professional Remote Controller

Availability:
SKU: RM-IP500
Collections:

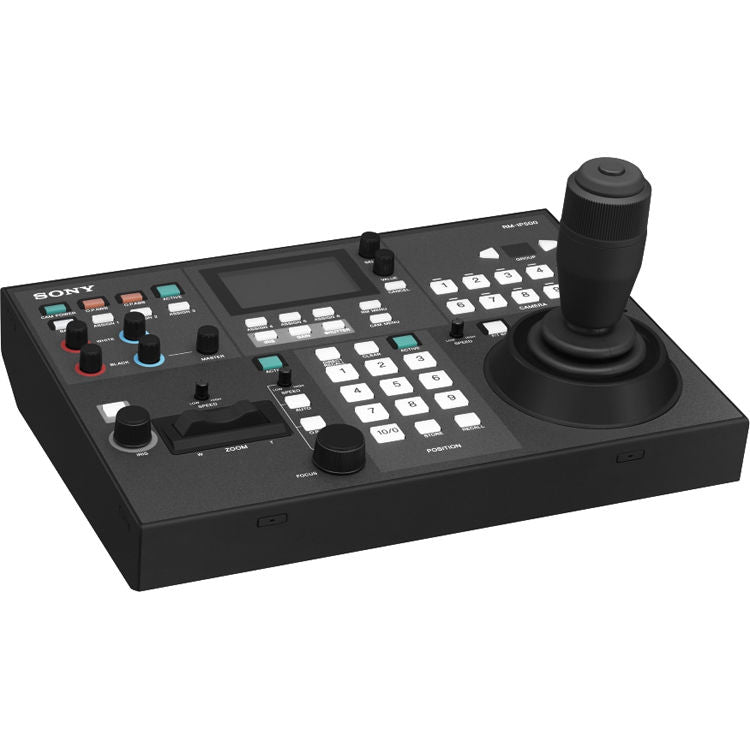

The Sony RM-IP500/1 Professional Remote Controller for Select Sony PTZ Cameras provides control of Sony BRC-X1000/1, BRC-H800/1, BRC-H900 and SRG-360SHE PTZ cameras. This compact unit incorporates a joystick for pan, tilt, and zoom control, and has the capability of controlling up to 100 separate cameras over IP. In addition to the joystick, the controller features dedicated knobs and control buttons that allow you to bypass the camera's menu systems to access frequently used functions.

The controller also incorporates many "paint" functions that enable adjusting the look of your cameras from one central point. Auto IP addressing and camera numbering make connecting to your network as simple as plugging in an Ethernet cable into your camera. The RM-IP500/1 stores up to 100 presets, has a tally indicator, and offers discrete zoom, focus, and iris controls in addition to the joystick.

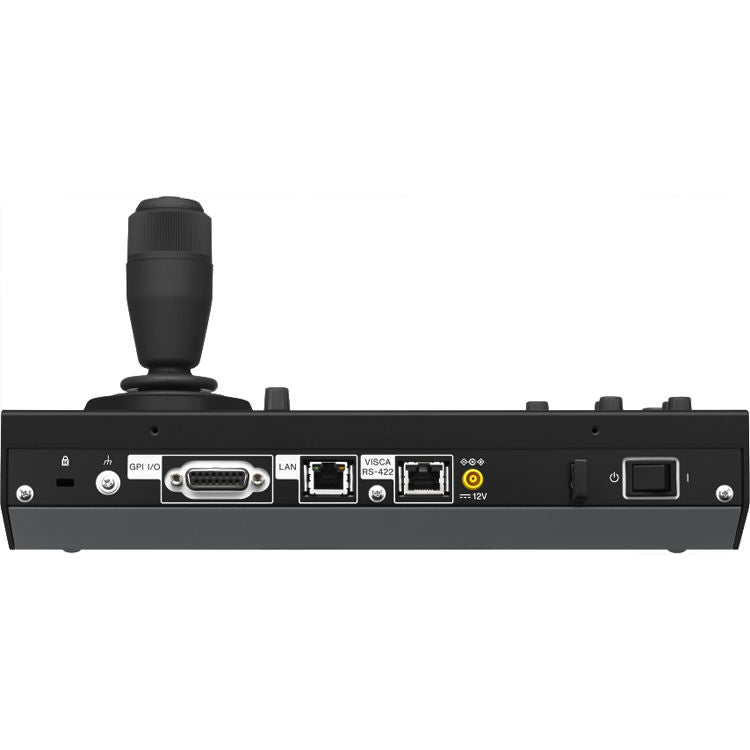

Input/output connectors
Control input/output
VISCA RS-422 OUT connector: RJ-45 x 1
LAN : RJ-45 x 1, 10BASE-T/100BASE-TX automatically detected
GPI I/O (Tally In/Contact Out): D-Sub 15-pin (female)
Control signal format
9,600 bps/38,400 bps (for RS-422 communication)
VISCA over IP communication
Power Connector
JEITA type 4 (DC IN 12V)
General
Input voltage
12V DC (10.8 to 13.2V DC)
Current consumption
0.6A max. (All lamps lit), 7.2W (at 12V DC) / 0.2A typ.(2.4W)
Operating temperature
0℃ to 40 ℃ (32°F to 104°F )
Storage temperature
-20℃ to 60 ℃ (-4°F to 140°F )
Dimensions (W x H x D)
306 mm x 159.3 mm x 224.1 mm
(12 1/8 x 6 3/8 inches x 8 7/8 inches) (excluding protrusions)
Mass
Approx. 2,400g (5 lb 4.7 oz)
User Interface
Display
Yes
Speed Control
Yes 3 dials (PT, Zoom and Focus separately)
Zoom Seesaw Lever
Yes
Zoom Ring of Joystick
Yes
Zoom Control selectable
Seesaw Lever or Ring of Joystick
ASSIGN button
6
Kensington lock hole
Yes
Camera Control
Maximum IP Connections
100
Maximum Serial Connections
7
Control Protocol
VISCA over IP/VISCA RS-422 switchable
max Controller qty (/system)
1 *1
Direct Function of Buttons/Knobs
Exposure mode selection
Yes
One-push white balance auto adjustment
Yes
One-push black balance auto adjustment
Yes
Toggle color bars output on/off
Yes
Toggle backlight compensation on/off
Yes
Toggle flicker compensation on/off
Yes
Display the status of iris,gain,shutter speed and zoom position
Yes
R gain and B gain adjustment
Yes
R black and B black adjustment
Yes
Master black adjustment
Yes
Detail level display
Yes
Detail level adjustment
Yes
Knee point display
Yes
Knee point adjustment
Yes
AE level display
Yes
AE level adjustment
Yes
Iris setting display
Yes
Iris value adjustment
Yes
Gain setting display
Yes
Gain value adjustment
Yes
Shutter speed display
Yes
Shutter speed adjustment
Yes
Supplied Accessories
*
Safety Regulations (1)
Warranty (1) *2
Download Site Information (1)
