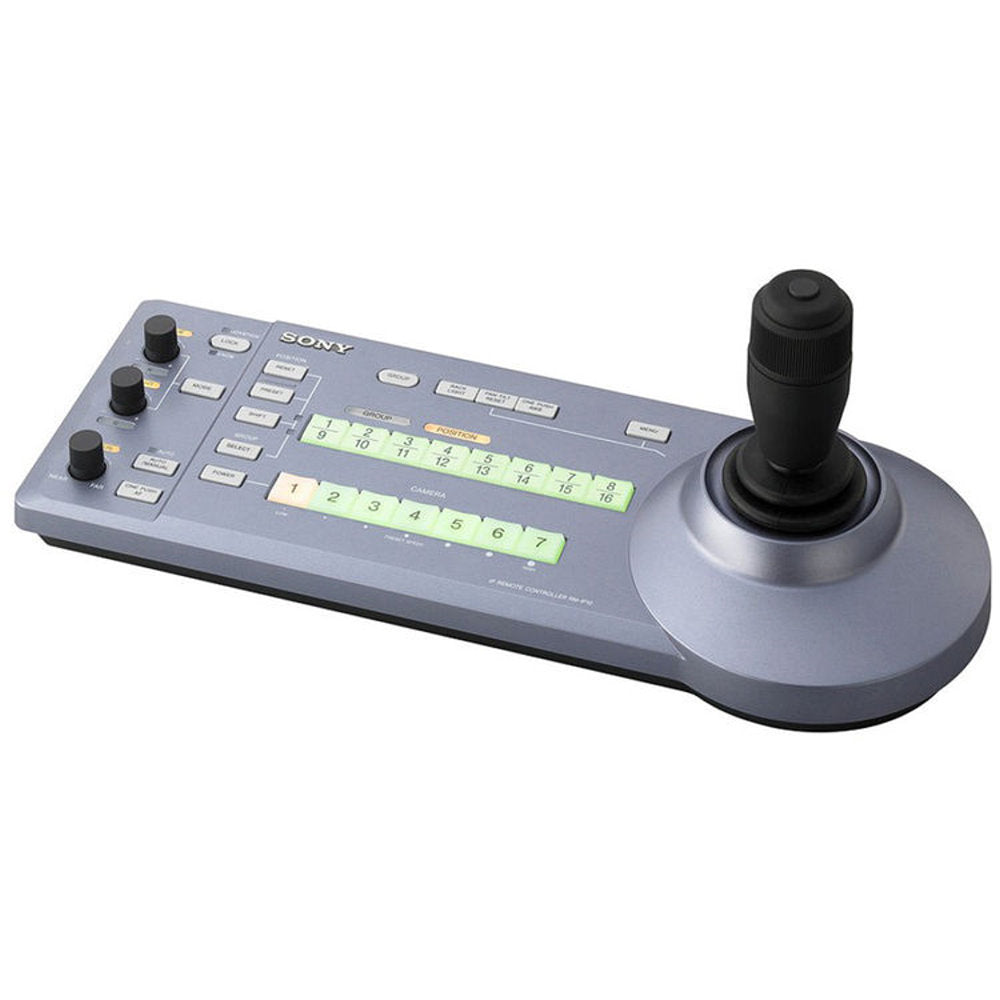

With the Sony RM-IP10 IP Remote Controller, the BRC-H900, BRC-Z700, and BRC-Z330 Remote Control Cameras can be controlled though an IP network. The use of the proper IP Control Interface Board, either BRBK-IP10 or BRBK-IP7Z (depending on camera model), is also required for compatibility. This functionality allows for flexible configurations, and enables the installation of up to 112 units of BRC cameras and up to 5 units of the RM-IP10 controller depending on customer requirements.
Input/output connectors
Control input/output
VISCA RS-232C OUT Connector : Mini DIN 8pin type
VISCA RS-422 connector: 9-pin type LAN : RJ-45, 10BASE-T/100BASE-TX automatically detected
Tally In/Contact Out: 9-pin type
Control signal format
9,600 bps/38,400 bps (for RS-232C/RS-422 communication)
VISCA over IP communication
Power Connector
JEITA type 4 (DC IN 12V)
General
Input voltage
12V DC (10.8 to 13.2V DC)
Current consumption
0.3A max. (at 12V DC), 3.6W
Operating temperature
0℃ to 40 ℃ (32°F to 104°F )
Storage temperature
-20℃ to 60 ℃ (-4°F to 140°F )
Dimensions (W x H x D)
391.3 mm x 165 mm x 145.9 mm
(15 ½ inches x 6 ½ inches x 5 ¾ inches)
Mass
Approx. 950g (2 lb 15 oz)
User Interface
Display
No
Speed Control
No
Zoom Seesaw Lever
No
Zoom Ring of Joystick
Yes
Zoom Control selectable
Ring of Joystick
ASSIGN button
0
Kensington lock hole
No
Camera Control
Maximum IP Connections
112
Maximum Serial Connections
7
Control Protocol
VISCA over IP/VISCA RS-422/VISCA RS-232C switchable
max Controller qty (/sys)
5
Direct Function of Buttons/Knobs
Exposure mode selection
No
One-push white balance auto adjustment
No
One-push black balance auto adjustment
No
Toggle color bars output on/off
No
Toggle backlight compensation on/off
Yes
Toggle flicker compensation on/off
No
Display the status of iris,gain,shutter speed and zoom position
No
R gain and B gain adjustment
Yes *1
R black and B black adjustment
Yes *1
Master black adjustment
No
Detail level display
No
Detail level adjustment
No
Knee point display
No
Knee point adjustment
No
AE level display
No
AE level adjustment
No
Iris setting display
No
Iris value adjustment
Yes *1
Gain setting display
No
Gain value adjustment
Yes *1
Shutter speed display
No
Shutter speed adjustment
Yes *1
Supplied Accessories
Supplied Accessories
Operating Instructions (1)
AC Power Adapter (SONY)(1)
AC power cord (1)
CD-ROM (1)
RS-422 connector plug (attached to the unit) (2)
