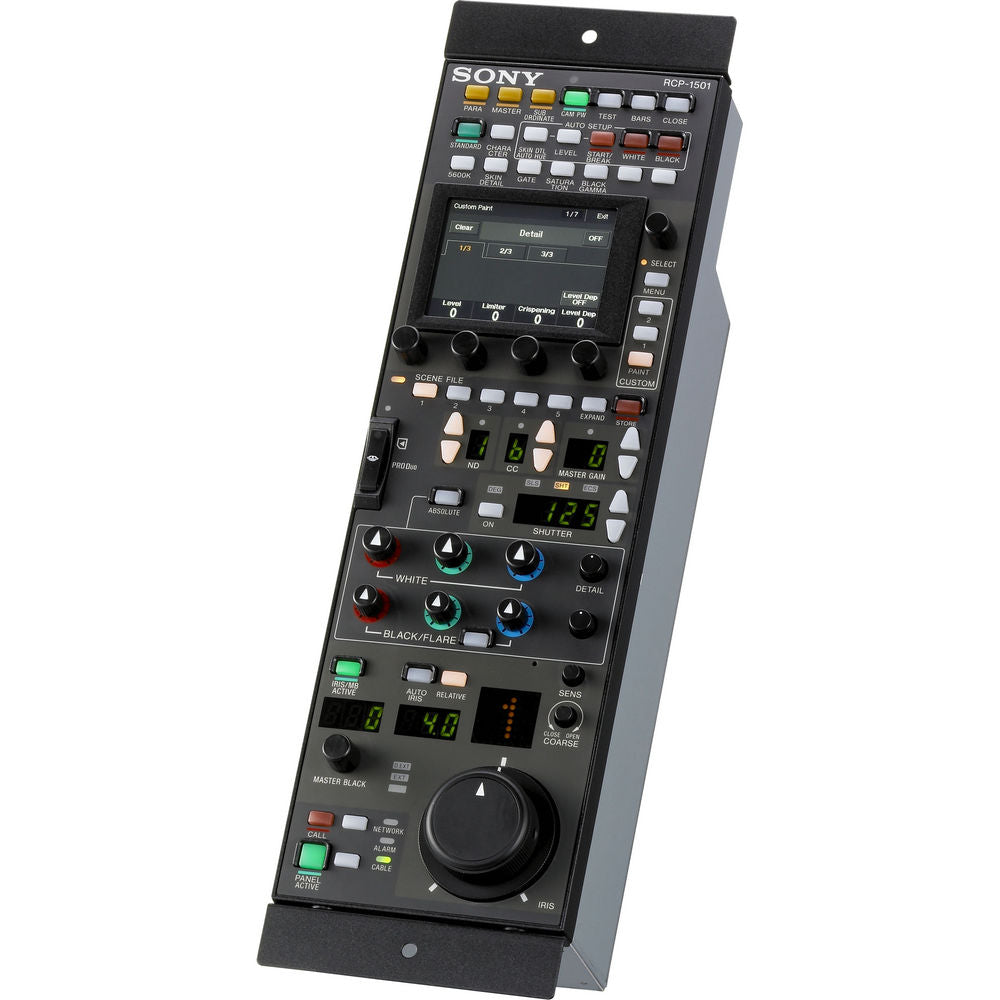

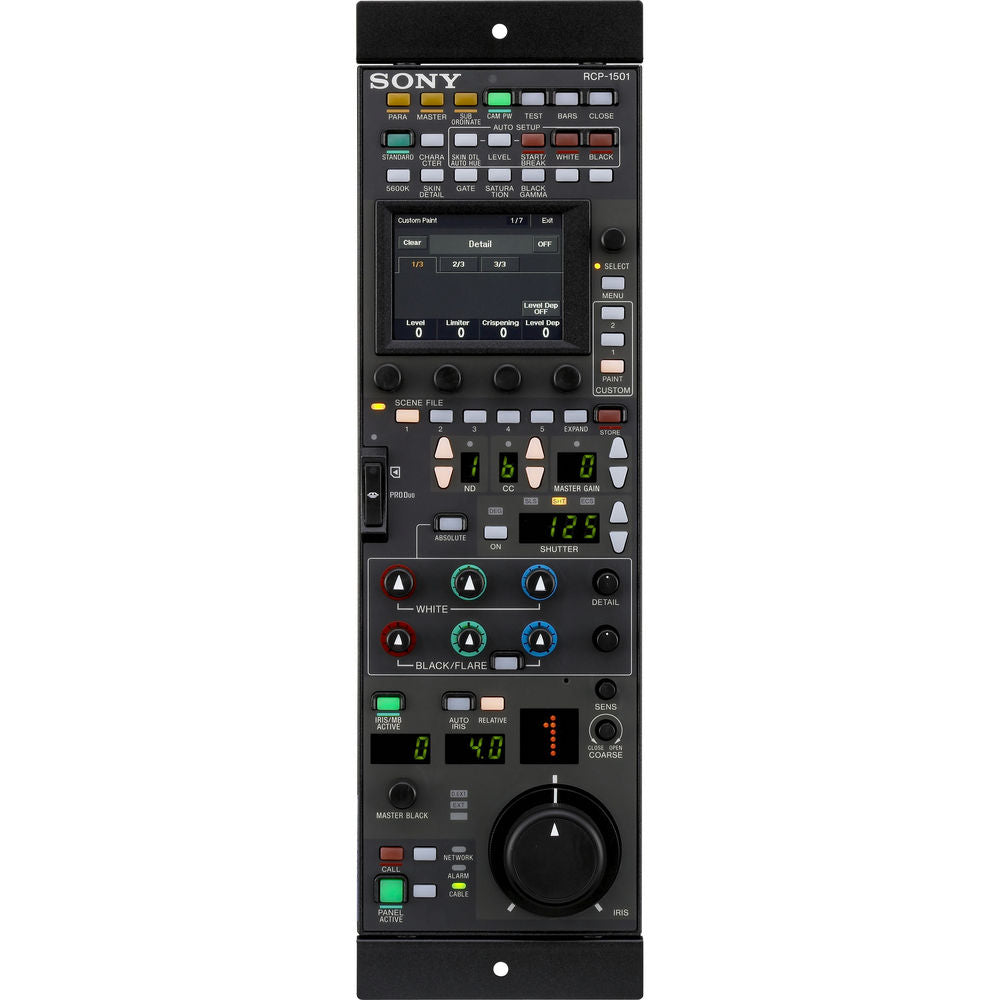

The RCP-1501 incorporates an LCD display with direct operation switches and a touch panel, which makes it a remote control panel that offers both ease of operation and multifunctionality that compares favorably with the MSU. The iris and master black adjustment block employs dial (knob) type control. Up to four units can be mounted in a 19-inch EIA rack.
General
Power supply
DC 10.5 V to 30 V
Power consumption
4 W
Operating temperature
5 °C to 40 °C (41 °F to 104 °F)
Dimensions (W x H x D) (excluding protrusions)
102 × 310 × 85 mm (4 1/8 × 12 1/4 × 3 3/8 in)
Mass
1.8 kg (3 lb. 15 oz.)
Input/output connectors
Ethernet
RJ-45 8-pin (X1)
CCU/CNU
Multi-connector 8-pin, female (x1)
AUX
Multi-connector 8-pin, female (x1)
EXT I/O
D-sub 9-pin, female (x1)
