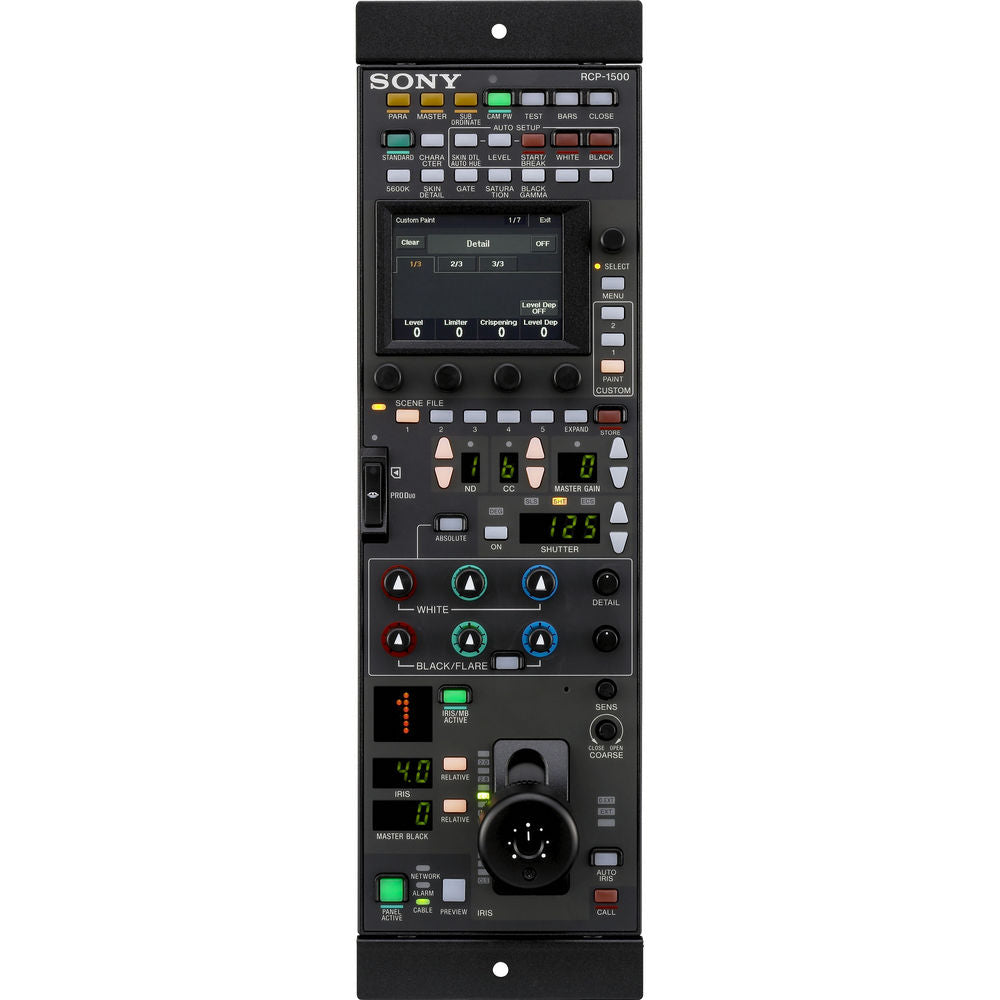

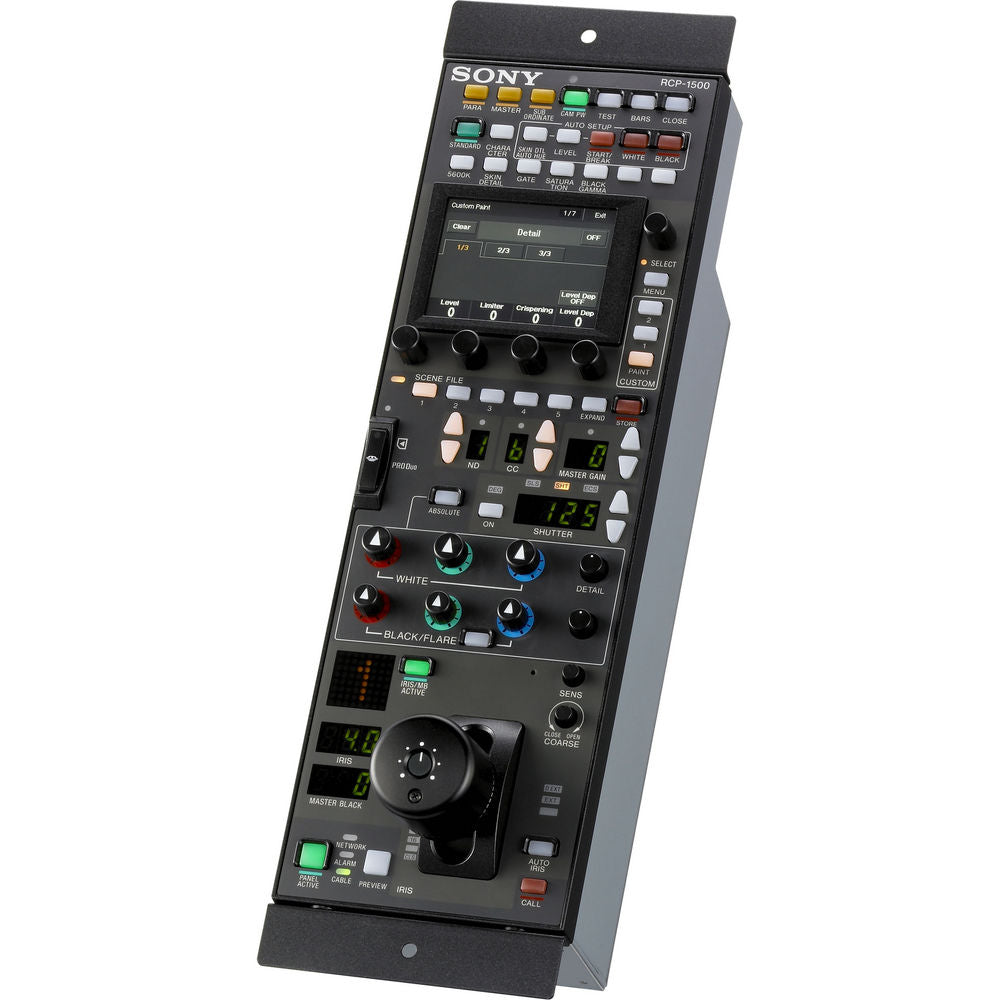

The RCP-1500 remote control panel incorporates an LCD display with direct operation switches and a touch panel, which makes it a remote control panel that offers both ease of operation and multi-functionality that compares favorably with the MSU. The iris and master black adjustment block employs joystick type control. Up to four units can be mounted in a 19-inch EIA rack.
General
Power consumption
4 W
Operating temperature
5 °C to 40 °C (41 °F to 104 °F)
Dimensions (W x H x D) (excluding protrusions)
102 × 310 × 125 mm (4 1/8 × 12 1/4 × 5 in)
Mass
1.8 kg (3 lb. 15 oz.)
Power supply
DC 10.5 V to 30 V
Input/output connectors
Ethernet
RJ-45 8-pin (X1)
CCU/CNU
Multi-connector 8-pin, female (x1)
AUX
Multi-connector 8-pin, female (x1)
EXT I/O
D-sub 9-pin, female (x1)
