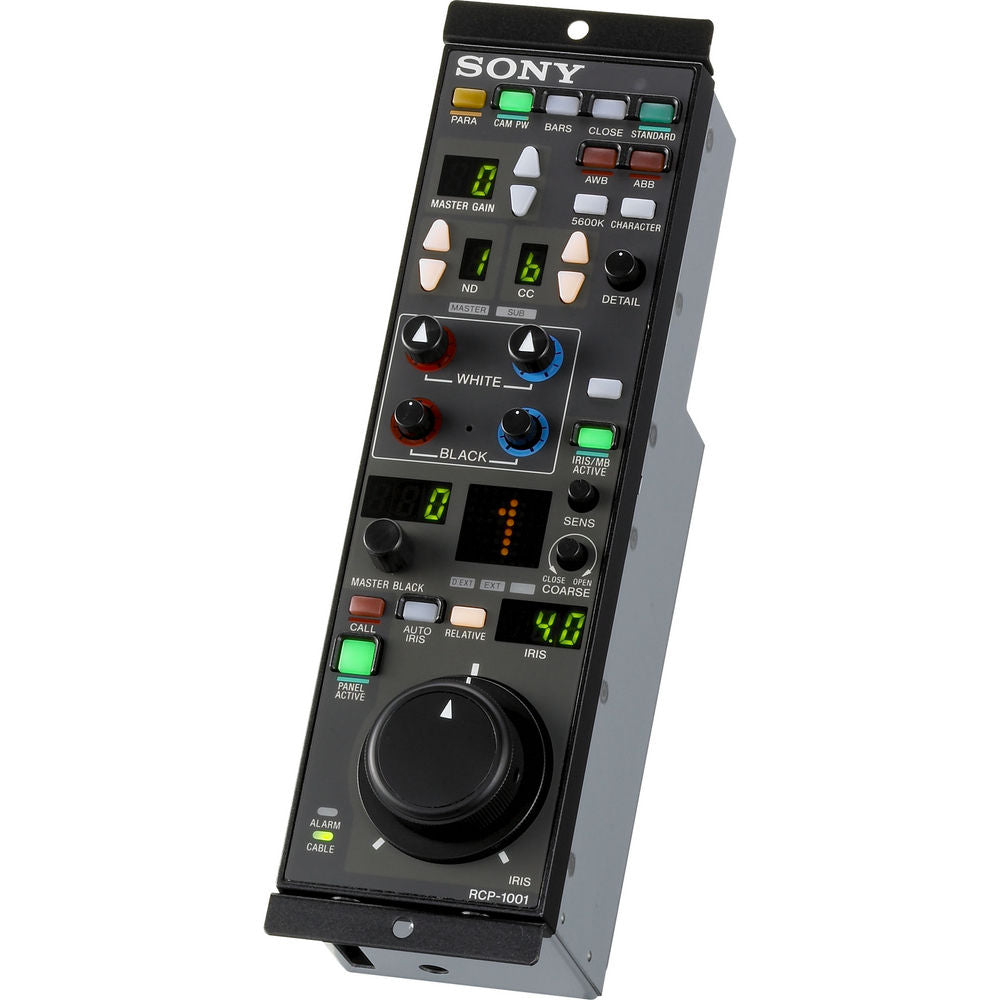

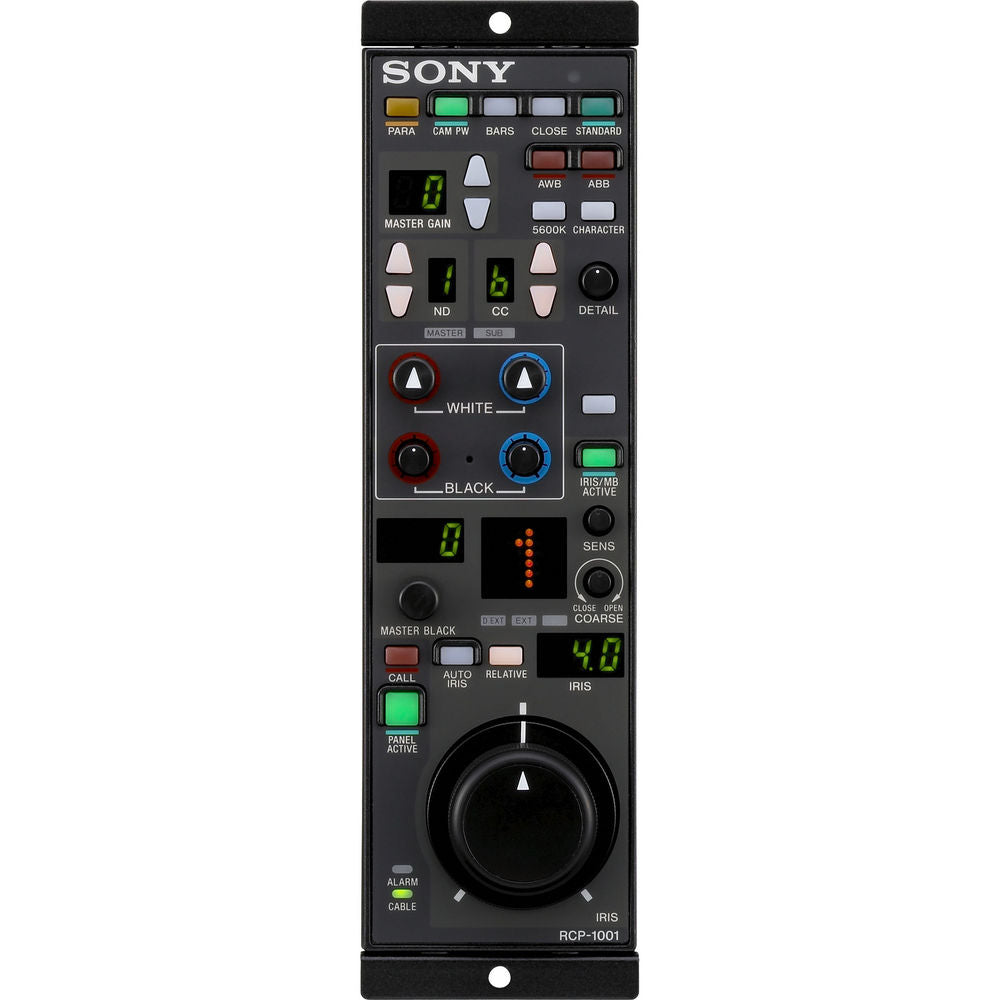

Sony RCP-1001 Simple Remote Control Panel (Dial Knob)

The RCP-1001 is a compact control panel with specialized basic operations. The iris and master black adjustment block employs a dial (knob) type control. Up to six units can be mounted in a 19-inch EIA rack. Various settings can be configured according to the operation configuration and the frequency with which functions are used.

---

General Power supply DC 10.5 V to 30 V Power consumption 2 W Operating temperature 5 °C to 40 °C (41 °F to 104 °F) Dimensions (W x H x D) (excluding protrusions) 68 × 244 × 84.4 mm (2 3/4 × 9 5/8 × 3 3/8 in.) Mass 1.1 kg (2 lb 9 oz) Input/output connectors CCU/CNU Multi-connector 8-pin, female (x1) EXT I/O D-sub 9-pin, female (x1)

---
