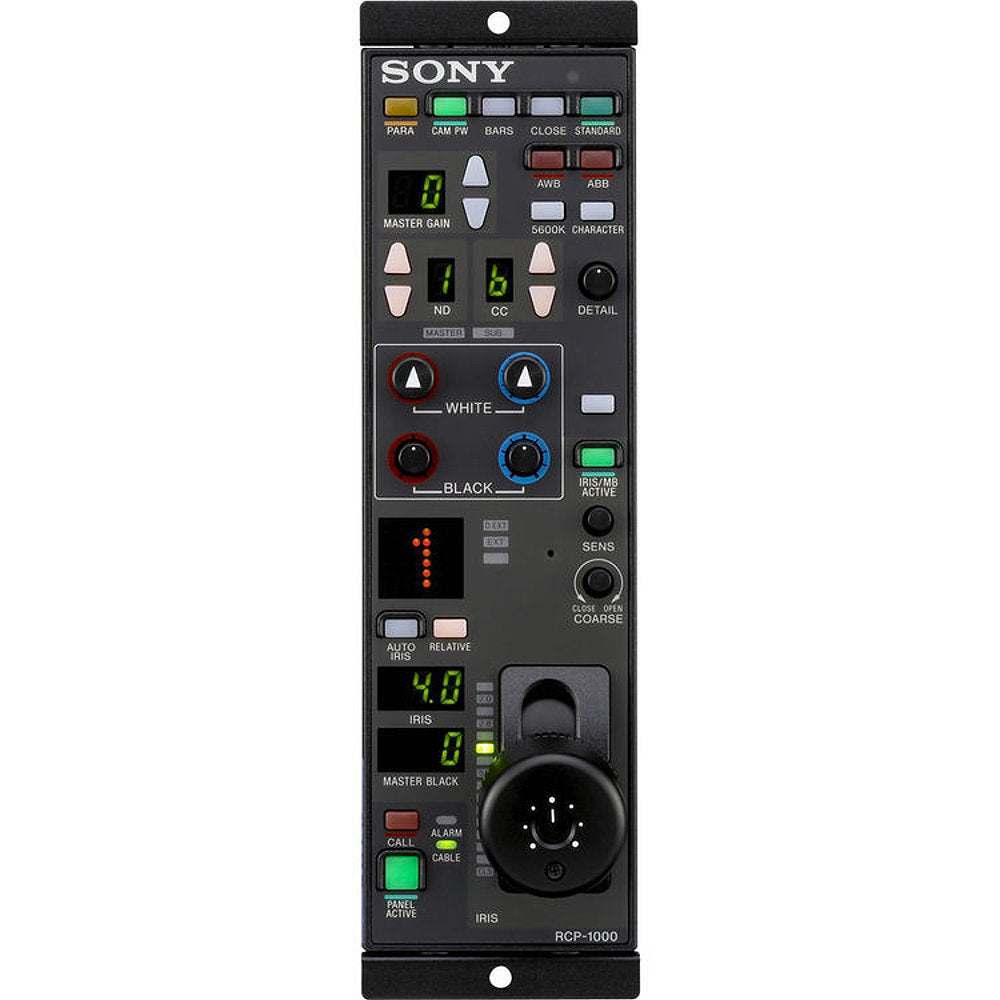

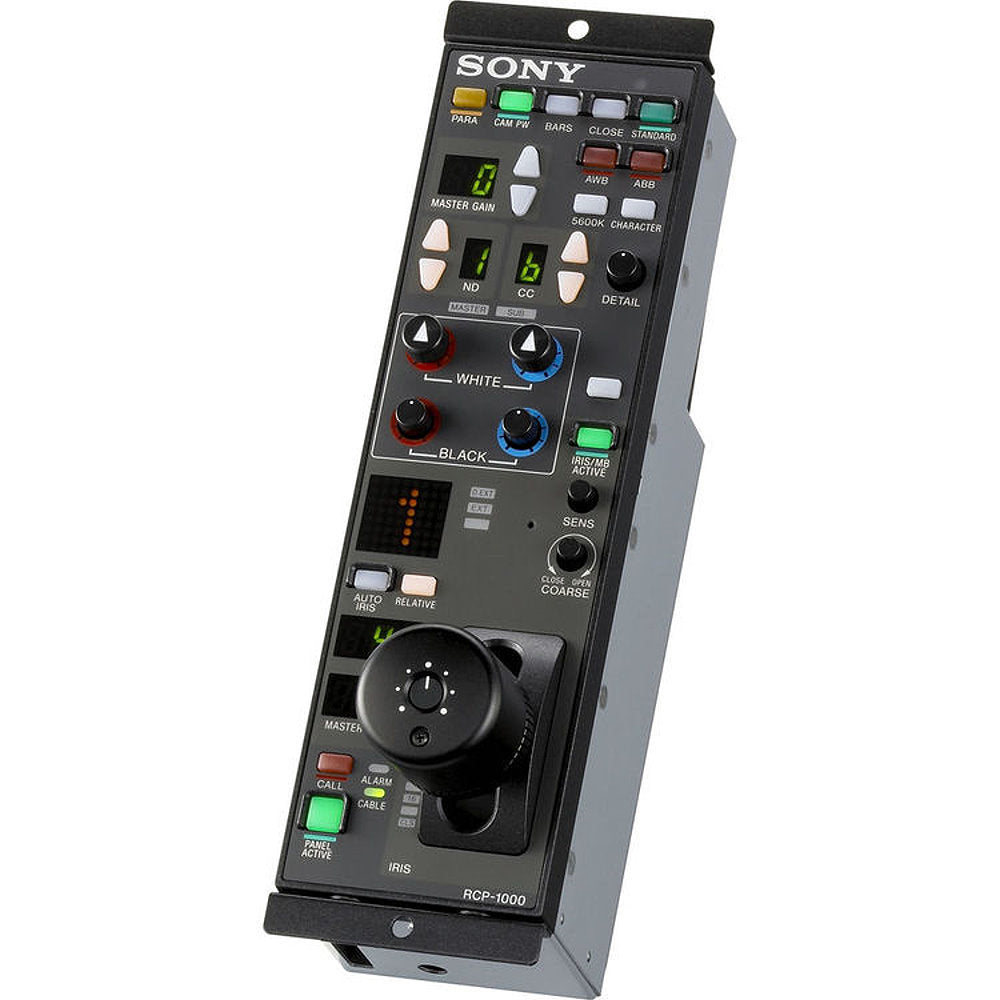

The RCP-1000 is simple remote control panel with specialized basic operations. The iris and master black adjustment block employs a joystick type control. Up to six units can be mounted in a 19-inch EIA rack. Various settings can be configured according to the operation configuration and the frequency with which functions are used.
GeneralPower supplyDC 10.5 V to 30 VPower consumption2 WOperating temperature5°C to 40°C (41°F to 104°F)Dimensions (W x H x D) (excluding protrusions)68 × 244 × 123.7 mm (2 3/4 × 9 5/8 × 4 7/8 in)Mass1.1 kg (2 lb 9 oz)Input/output connectorsCCU/CNUMulti-connector 8-pin, female (x1)EXT I/OD-sub 9-pin, female (x1)
