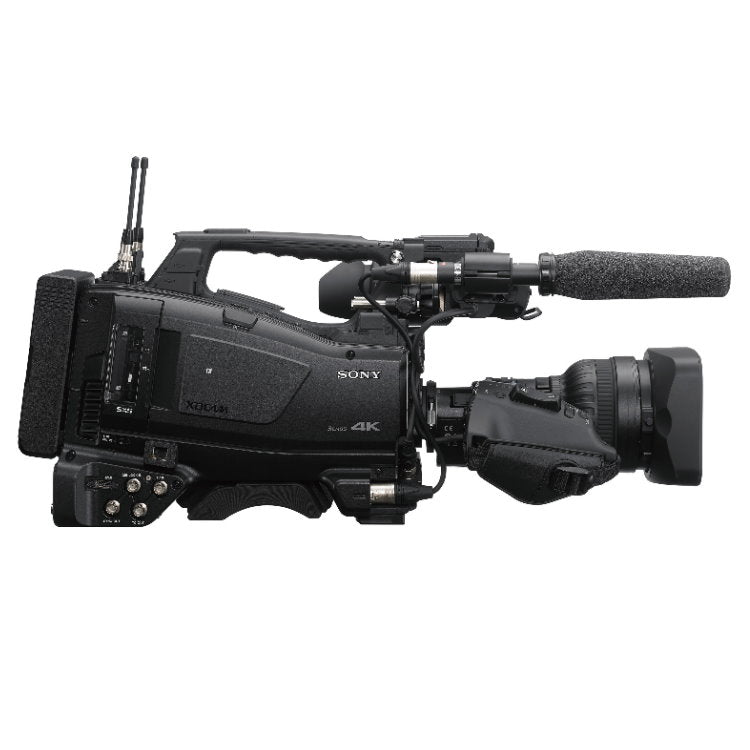

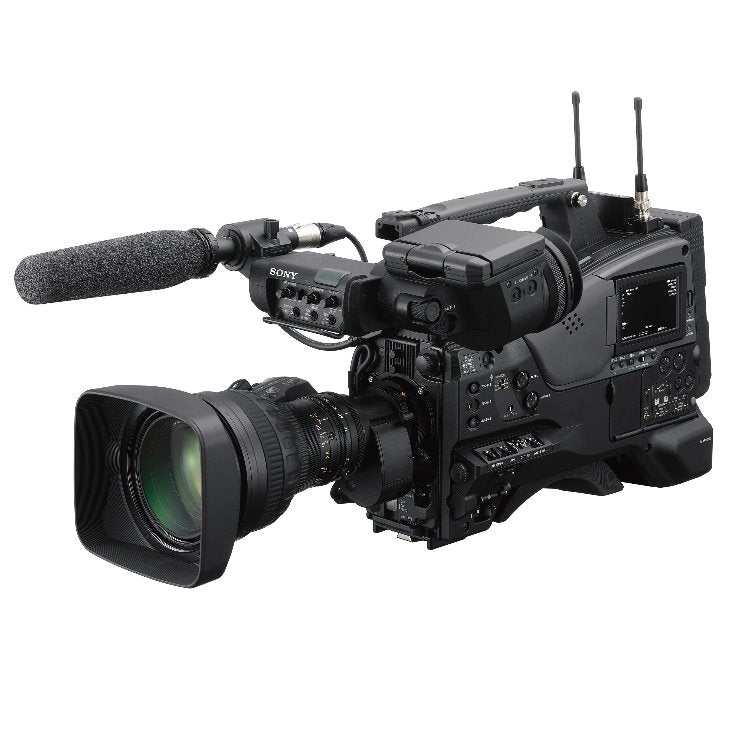

Sony PXW-Z750 4K Shoulder-Mount Broadcast Camcorder (Body Only)
Sony
29.97p: 1/40 sec to 1/2,000 sec + ECS
25p: 1/33 sec to 1/2,000 sec + ECS
23.94p: 1/32 sec to 1/2,000 sec + ECS
1080p: Frame rate selectable from 1fps to 60fps /72/75/80/90/96/100/110/120 fps
F12 (2160/59.94p), F13 (2160/50p) *High Sense Mode ON (Typical)
1,000 TV lines or higher (1920 x 1080i mode)
1280 x 720: 59.94p, 50p, 29.97p, 25p, 23.98p
1440 x 1080: 59.94i, 50i
1280 x 720: 59.94p, 50p
1920 × 1080, 6 MBps, 9 MBps (Target Rate)
1280 × 720, 6 MBps , 9 MBps (Target Rate)
640 × 360, 3 MBps (Target Rate)
480 × 270, 1 MBps, 500 kBps (Target Rate)
1.5G
Poolfeed Recording (upto 1080 59.94i)
LINE: +4, 0, -3 dBu
AES/EBU: AES3 compliant
MIC: -70 dBu to -30 dBu
Analog CH1: -40 dBu
Digital CH1/CH2: -40 dBFS
4ch Embedded Audio
-12 dBu (reference level output, maximum monitor volume, 16 Ω load)
Screen size: 8.8 cm (3.5 inch) diagonal
Aspect ratio: 16:9
Number of pixels: 960 (H) x 540 (V) for video display, audio level, TC, battery, and media remaining capacity
SDXC card (SD Card Adapter, MEAD-SD02)
Cold Shoe Kit (1)
Lens Mount Cap (1)
USB wireless LAN module (IFU-WLM3) (1)
Protective Cap (1)
Operating Instructions (CD-ROM) (1)
Before using this unit (1)
This is where your TEXT BOX 1 goes
4K 2/3-type 3-chip CMOS Shoulder-mount Camcorder with global shutter, high sensitivity, 4K/HD simultaneous recording, 120p HFR in HD, 12G-SDI and advanced wireless workflow capabilities.
New benchmark for 4K, HDR and HD image quality
Capture beautiful 4K images with the depth of field made possible by 3-chip 2/3-type CMOS sensor. The Z750 is Sony’s first shoulder-mount camcorder with a global shutter to eliminate flash banding and “jello” effects. It sets a new class-leading standard for 4K, HDR and HD image quality for reality TV, documentary, news and sports production. In fast-moving applications where a second take is impossible, the Z750 is the ideal choice.
Saving time and money
Delivering highest quality 4K with HD-era workflows wastes time and money. The Z750’s latest generation XAVC-L422 QFHD 200 codec combined with high-speed SxS Pro media radically reduce real-world turnaround times. Premium 4K becomes deliverable on almost any project using the PXW-Z750.
Transformative cloud-based collaboration
Z750 is at the vanguard of seamlessly integrating Cloud-based production tools with familiar, easy-to-use interfaces and proven Sony reliability. Build stories fast, with secure, direct access from the studio to camcorders out in the field with XDCAM air. Distribute content for preview and editing with stakeholders across the world using Sony’s Ci Media Cloud.
3-chip 2/3-type CMOS Sensor with Global Shutter
The PXW-Z750 incorporates a newly developed 3-chip 2/3″ 4K CMOS sensor optical block with a wide color gamut that provides exquisite picture quality with true-to-life color reproduction, high sensitivity and low noise level for a wide range of shooting scenarios.
Versatile B4 lens options
The 3-chip 2/3-type size sensor block of the Z750 matches the rugged, dependable B4 lens mount system, allowing you to use a wide variety of commercially available B4 4K/HD lenses. This flexibility supports a variety of shooting applications while reducing cost by leveraging your existing lens investments.
High Dynamic Range and wider, richer colors
PXW-Z750 can record HDR using Sony S-Log3 or Hybrid Log Gamma (HLG). The camera’s wide color gamut supports extended Sony S-Gamut3 and S-Gamut3.Cine color spaces, as well as the industry standard ITU-R BT.2020 color space.
S-Log3 has a proven track record for premium applications, capturing the maximum dynamic range from the sensors, for the most creative color grading processes.*
Industry standard HLG delivers content quickly without additional color grading, making it an ideal choice for day-to-day shooting, viewing, editing, and broadcasting workflows.
*QFHD only.
Superb slow motion
Ideal for sports and nature programs, the PXW-Z750 can acquire footage in 120fps in Full HD for beautifully smooth, finely detailed slow-motion playback.
Cache recording
Never miss a shot with advanced cache recording in 4K and Full HD modes. Pre-record up to 13–15 sec in MPEG HD 422 50 (at 50/59.94fps) — giving you plenty of time to catch the action when it happens.
Representative Cache Rec. Time (@50/59.94fps)
- XAVC QFHD L422 200: 2–4 sec
- XAVC-I 1920 × 1080P: 2–4 sec
- MPEG HD 422 50: 13–15 sec
High quality at lower bitrates
As well as the established XAVC-I QFHD Class 300 4K and standard MPEG HD422 codecs, the PXW-Z750 also supports the latest generation XAVC-L422 QFHD 200 codec. Compressing 4K Ultra HD images with a LongGOP frame structure, this achieves significant bitrate savings over previous Intra Frame codecs while maintaining superb 4K image quality. Lower data rates increase recording times while reducing storage requirements. Uncompromised picture quality is ensured by 10-bit quantization and 4:2:2 color sampling, making the PXW-Z750 ideal for HDR productions. A wide range of 4K codecs provide the flexibility to select the recording format that is best suited for the requirements of the production you are working on.
Lightning-fast transfers with latest generation media
The PXW-Z750 supports latest-generation SxS Pro X media, enabling very high speed file transfers at up to 10 Gbps (1250 MB/s)¹ with the SBAC-T40 Thunderbolt™ 3,* SxS card reader/writer. Transfers are approximately three times faster than previous generation media/reader combinations, dramatically accelerating workflows for any application and bringing down production costs.
*Based on Sony internal testing. Transfer speeds vary and are dependent on host devices, the OS version or usage conditions.
Next generation wireless workflow
Built-in wireless connectivity enables advanced workflow production features, including live-streaming, FTP transfer and even remote control from a smartphone or tablet* via Wi-Fi. Wireless workflow is made even more efficient using XDCAM air, Sony’s professional cloud service including dual-link cellular operation.**
*Requires Content Browser Mobile and device running iOS 9.0 (or higher) or Android 4.4 (or higher)
**Requires XDCAM air subscription and CBK-DL1 USB Extension Adaptor
Seamless wireless audio integration

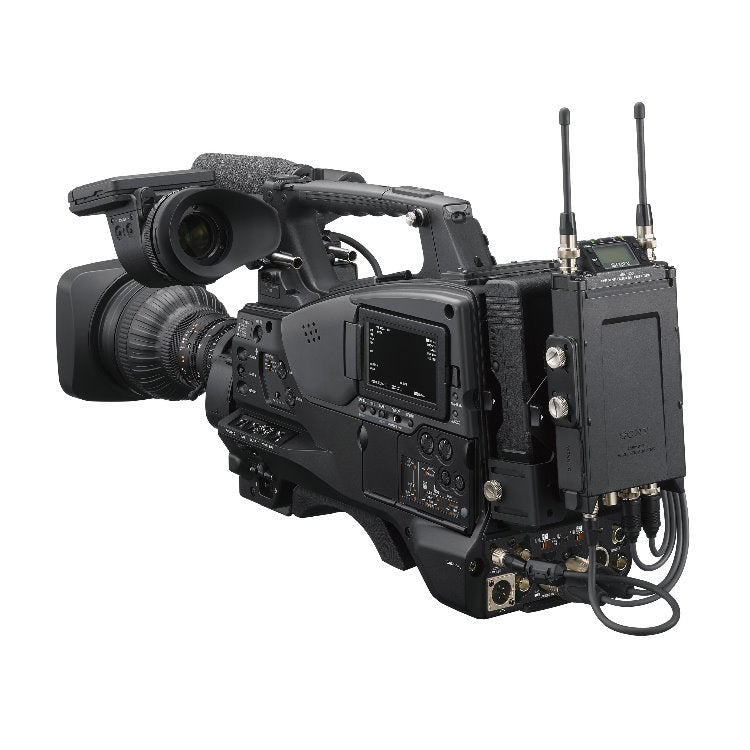

PXW-Z750 is compatible with Sony’s DWX series of digital wireless microphone systems offering ENG and documentary teams the benefits of an all-digital audio workflow, including robust end-to-end encryption for truly secure operation.*
- Wireless transmitter parameters can be controlled directly from the PXW-Z750 using the Cross Remote function
- Transmitter power save mode synchronizes with the camera’s on/off control, and is controllable by assignable buttons to save transmitter battery life
- Audio and video are precisely synchronized, ensuring no delays or lip-sync problems
- Power save status and receiver RF levels are displayed in the viewfinder
Familiar refinement, evolved

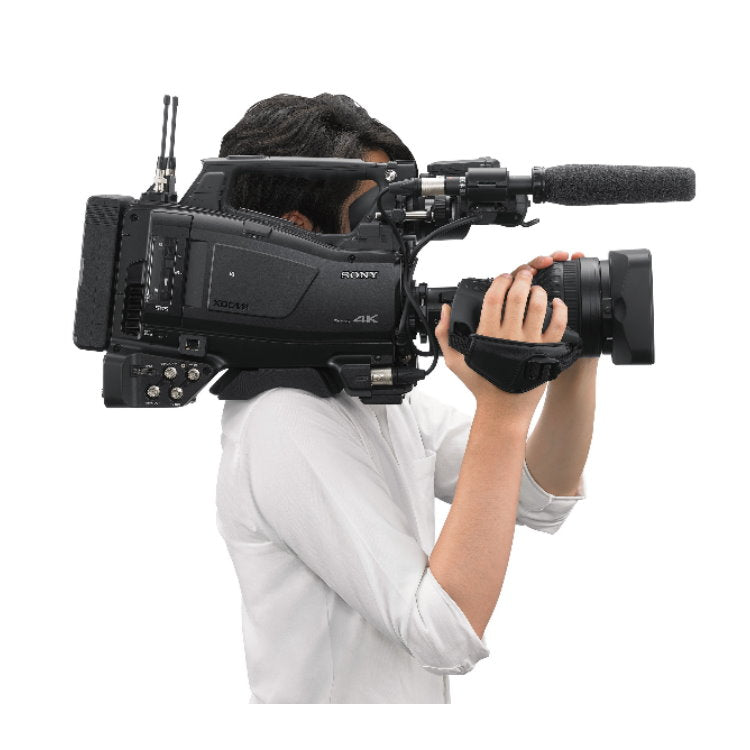

The Z750 is lighter than the previous generation PDW-700, while also being more ergonomically balanced, so it’s considerably less fatiguing for longer shooting days. All the controls and interfaces are a subtle refinement of previous shoulder camcorders, ensuring that shooting with this camcorder is easy and hassle-free. From power-on, it takes a matter of seconds to be shooting the highest quality footage, while advanced new features are easy to learn and utilize.
General Mass Approx. 3.8 kg (body only without lens, VF, Mic)
Dimensions (W x H x D) Approx. 5.91 × 10.59 × 13.07 inch (excluding protrusions, body only)
Power Requirements DC 12 V (11 V to 17.0 V)
Power Consumption Approx. 41 W (while XAVC recording, color LCD on)
Operating Temperature 32 to 104°F
Storage Temperature -4 to +140°F
Continuous Operating Time Approx. 110 min with BP-GL95B

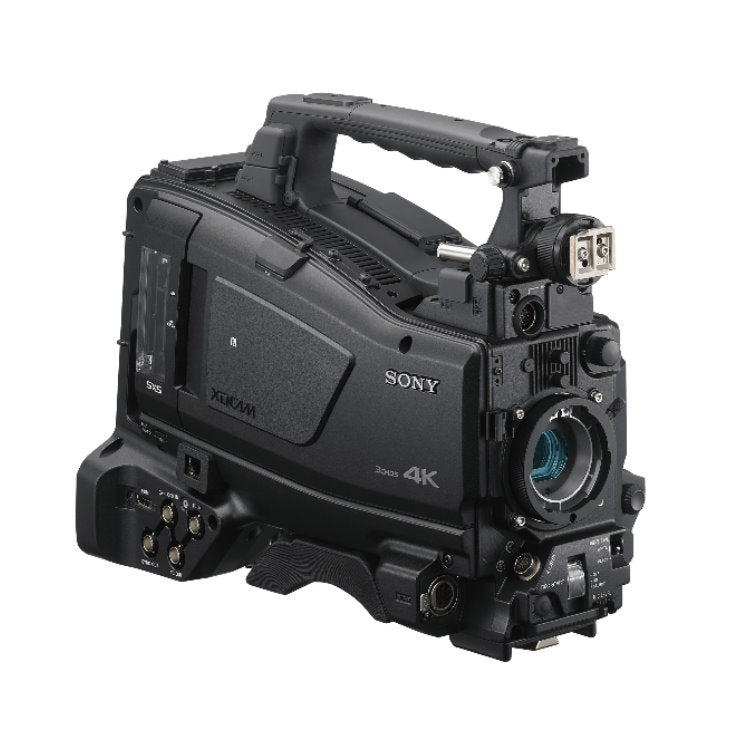

Lens Mount Sony 2/3 type bayonet mount
Camera Section Imager 2/3-type 3-chip 4K CMOS
Effective Resolution 3840 (H) x 2160 (V)
Built-in Optical Filters 1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Shutter Speed (Time) 59.94i/p, 50i/p: 1/60 sec to 1/2,000 sec + ECS
29.97p: 1/40 sec to 1/2,000 sec + ECS
25p: 1/33 sec to 1/2,000 sec + ECS
23.94p: 1/32 sec to 1/2,000 sec + ECS
Shutter Speed (Slow Shutter(SLS)) 2, 3, 4, 5, 6, 7, 8, 16-frame accumulation
Slow & Quick Motion 2160p: Frame rate selectable from 1fps to 60fps
1080p: Frame rate selectable from 1fps to 60fps /72/75/80/90/96/100/110/120 fps
Sensitivity (2000 lx, 89.9% reflectance) F12 (1080/59.94i), F13 (1080/50i) *High Sense Mode ON (Typical)
F12 (2160/59.94p), F13 (2160/50p) *High Sense Mode ON (Typical)
Minimum Illumination 0.019 lx (F1.4, +42 dB, 16-frame accumulation)
White Balance Preset (3200K), Memory A, Memory B/ATW
Gain Selection -3, 0, 3, 6, 9, 12, 18, 24, 30, 36, 42 dB
S/N Ratio 62 dB (Noise Suppression ON, 1920 x 1080 59.94i) (Typical)
Horizontal Resolution 2,000 TV lines or higher (3840 x 2160p mode)
1,000 TV lines or higher (1920 x 1080i mode)
Recording format (Video) XAVC Intra (XAVC-I QFHD 300) 3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p
XAVC Intra (XAVC-I HD 100) 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
XAVC Long (XAVC-L422 QFHD 200) 3840 x 2160: 59.94p, 50p
XAVC Long (XAVC-L420 QFHD 150) 3840 x 2160: 59.94p, 50p
XAVC Long (XAVC-L422 HD 50) 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
MPEG HD422 1920 x 1080: 59.94i, 50i, 29.97p, 25p, 23.98p
1280 x 720: 59.94p, 50p, 29.97p, 25p, 23.98p
MPEG HD420 1920 x 1080: 59.94i, 50i, 29.97p, 25p, 23.98p
1440 x 1080: 59.94i, 50i
1280 x 720: 59.94p, 50p
Recording Format (Audio) XAVC Intra (XAVC-I QFHD 300) LPCM 24 bits, 48 kHz, 4 channels
XAVC Intra (XAVC-I HD 100) LPCM 24 bits, 48 kHz, 4 channels
XAVC Long (XAVC-L422 QFHD 200) LPCM 24 bits, 48 kHz, 4 channels
XAVC Long (XAVC-L420 QFHD 150) LPCM 24 bits, 48 kHz, 4 channels
XAVC Long (XAVC-L420 HD 50) LPCM 24 bits, 48 kHz, 4 channels
MPEG HD422 LPCM 24 bits, 48 kHz, 4 channels
MPEG HD420 LPCM 24 bits, 48 kHz, 4 channels
Recording Format (Proxy Video) XAVC Proxy AVC/H.264 Main Profile 4:2:0 Long GOP, VBR
1920 × 1080, 6 MBps, 9 MBps (Target Rate)
1280 × 720, 6 MBps , 9 MBps (Target Rate)
640 × 360, 3 MBps (Target Rate)
480 × 270, 1 MBps, 500 kBps (Target Rate)
Recording Format (Proxy Audio) XAVC Proxy AAC-LC, 128 kbps, 2 channels
Input / Output Genlock Input BNC (x1), 1.0 Vp-p, 75 Ω, unbalanced
Timecode Input BNC (x1), 0.5 V to 18 Vp-p, 10 kΩ
SDI Input SMPTE ST292/ST259 standard compliant, 4-channel audio
1.5G
Poolfeed Recording (upto 1080 59.94i)
Audio Input CH1/CH2: XLR-type 3-pin (female) (x2), Line/AES/EBU/Mic +48 V selectable
LINE: +4, 0, -3 dBu
AES/EBU: AES3 compliant
MIC: -70 dBu to -30 dBu
Mic In XLR-type 5-pin, female: -70 dBu to -30 dBu
WRR (Wireless Microphone Receiver) D-sub 15-pin
Analog CH1: -40 dBu
Digital CH1/CH2: -40 dBFS
SDI Output BNC ×2 (Both SDI are selectable from 12G, 3G and 1.5G)
4ch Embedded Audio
Sync Output BNC, SD analog composite/HD-Y selectable
Audio Output XLR-type 5-pin, female: +4/0/-3 dBu
Timecode Output BNC, 1.0 Vp-p, 50 Ω
Earphone Output Stereo mini jack (×1)
-12 dBu (reference level output, maximum monitor volume, 16 Ω load)
DC Input XLR-type 4-pin, male, 11 V to 17 V DC
DC Output Round type 4-pin, 11 V to 17 V DC, 1.8 A maximum rated current
Lens 12-pin, lens power source (11 V to 17 V DC, 1.0 A maximum rated current)
Remote 8-pin
Light 2-pin
Camera Adapter D-sub, 50-pin (x1) (only for Japan model)
Ethernet RJ-45 (x1), 100BASE-TX: IEEE 802.3u, 10BASE-T: IEEE 802.3
USB 4-pin (A type) x2, 4-pin (B type)
HDMI A type, 19-pin (×1) output up to 3840 × 2160
Viewfinder 20-pin IF for HDVF Series Viewfinder
Audio Performance Frequency Response 20 Hz to 20 kHz (±3 dB or less)
Dynamic Range 90 dB (typical)
Distortion 0.08% or lower (-40 dBu input level)
Headroom 20 dB (factory default) (20, 18, 16, 12 dB), EBUL
Monitoring Viewfinder Option
Built-in LCD Monitor Color LCD
Screen size: 8.8 cm (3.5 inch) diagonal
Aspect ratio: 16:9
Number of pixels: 960 (H) x 540 (V) for video display, audio level, TC, battery, and media remaining capacity
Other Functions Built-in Speaker (x1)
Media SxS Card Slots Number of slots: 2
Media SD Card Slots Proxy (1), Utility (1)
HDR (OETF): HLG/S-Log3, (Color Space): BT.2020/S-Gamut3/S-Gamut3.cine
GPS Yes
Built-in Network Module Yes
NFC Yes
Supported Media High Resolution Video/Audio SxS card
SDXC card (SD Card Adapter, MEAD-SD02)
Proxy Video/Audio and utility SDXC/SDHC
Supplied Accessories Supplied Accessories Shoulder Belt (1)
Cold Shoe Kit (1)
Lens Mount Cap (1)
USB wireless LAN module (IFU-WLM3) (1)
Protective Cap (1)
Operating Instructions (CD-ROM) (1)
Before using this unit (1)
This is where your TEXT BOX 1 goes
This is where your TEXT BOX 2 goes
