The
Sony PVM-L2300 is a 23" LCD monitor designed for use in broadcast applications. Built on the TriMaster design concept, the PVM-L2300 monitor reproduces images consistent with the BVM-L230 TriMaster master monitor. By incorporating the same processing engine technology as the BVM-L230, the PVM-L2300 offers the superb picture performance and sophisticated features required by today's broadcast and critical picture-monitoring applications.

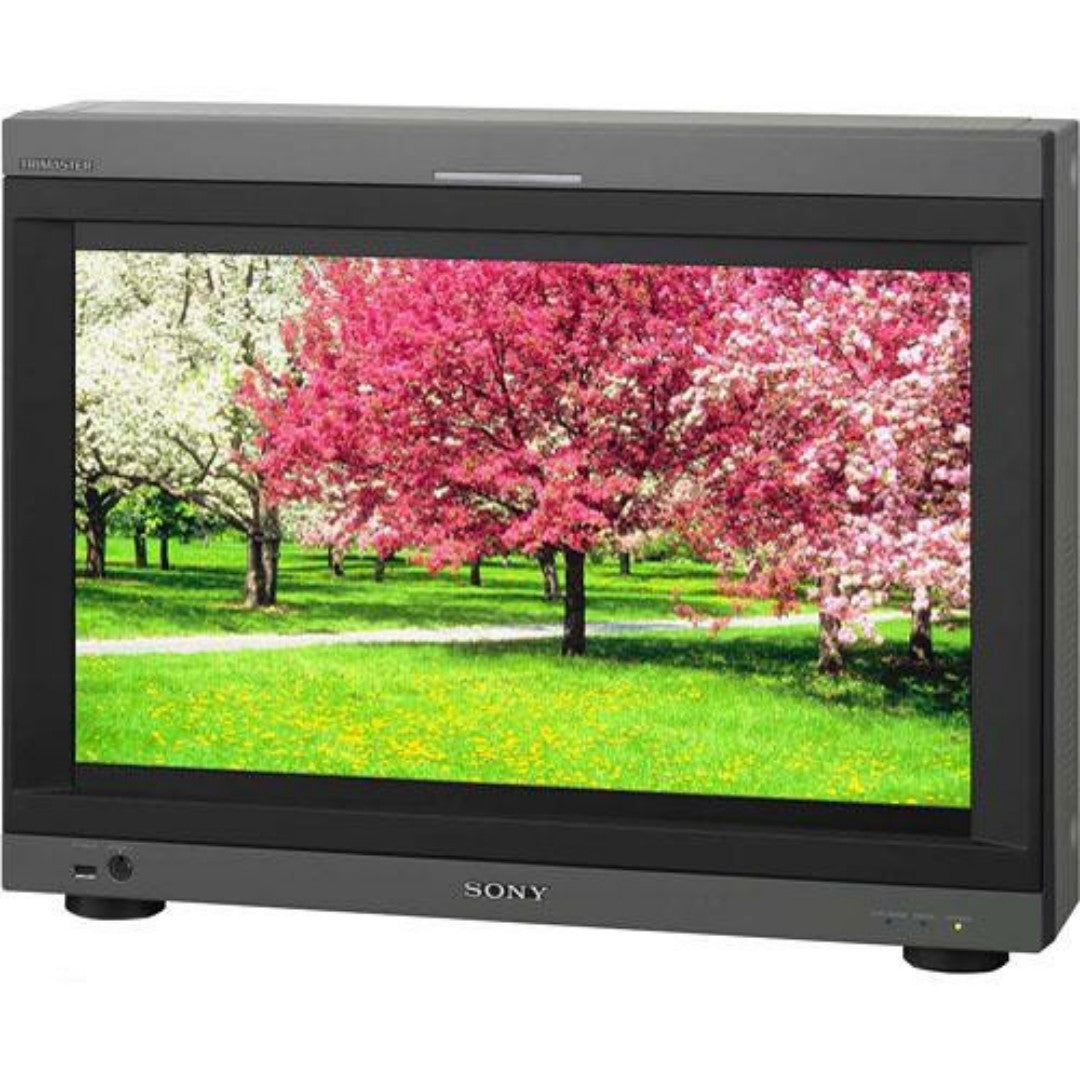

Sony PVM-L2300
| Signal System |
NTSC, PAL, SECAM, PAL-M, PAL-N |
| Application |
Studio, Commercial |
| LCD Size |
22.5" |
| Picture Elements |
1920 x 1200 |
| Input and Output Connectors |
DVI-D: DVI with HDCP
HDMI: HDMI
Ethernet: RJ-45
Parellel Remote: D-Sub 9-Pin |
| Picture Controls |
Electronic Menu |
| Remote Control |
IR, RS-232C, RS-485 |
| Power Requirements |
120-240VAC, 50/60Hz |
| Power Consumption |
140W Max |
| Dimensions (WxHxD) |
22.4 x 19 x 9.6" (56.6 x 43.5 x 24.3cm) |
| Weight |
35.3 lbs (16kg) |
Packaging Info
| Package Weight |
42.7 lb |
| Box Dimensions (LxWxH) |
27 x 21 x 14" |
