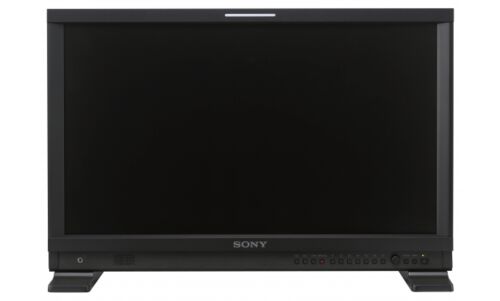

Sony LMD2041W 20" Widescreen High-Grade Broadcast LCD Monitor B-Stock

Sony

-
+

Inquire about Sony LMD2041W 20" Widescreen High-Grade Broadcast LCD Monitor B-Stock



The Sony LMD2041W B-Stock 20" Wide-Screen High-Grade Broadcast LCD Monitor is a high-definition 1600 x 900 display that offers critical functions that broadcasters and other video professionals need, such as blue-only display for calibration, one-to-one pixel display, in-monitor tally, LTC or VITC time code display, and Ethernet-based remote control. The 20" LCD monitor features dual 3G/HD/SD-SDI inputs, composite input, and outputs of both those types, enabling it to display and pass along formats as demanding as 1080/24PsF and 1080p60.

The LMD2041W is a perfect size to mount on the face of an equipment rack via the included brackets. The monitor can also be mounted on a wall or set up on a desk using the included stand. With a thin, sturdy aluminum bezel, the LMD2041W integrates well into a multi-monitor wall.

Supporting this last option is the Sony's ChromaTRU color-matching technology, which ensures display consistency across a multiple-screen setup. The LCD panel reproduces lifelike images and stunning colors and offers a wide viewing angle of 179° in all four directions.

Superb Picture Performance and Color Consistency
The 20", HD-resolution (1600 x 900 pixels), high-performance LCD panel reproduces lifelike precise images and accurate color. Sony's unique ChromaTRU color-matching technology and 10-bit signal processing deliver a stunning smooth grayscale, emulating the colors and gammas of broadcast-standard CRT monitors. Users can select the required color space within this gamut. In addition, ChromaTRU technology provides these monitors with color consistency essential for a multi-monitor system, and offers the best solution for a monitor-wall installation
Extremely Wide Viewing Angle
IPS panel technology ensures the LMD2041W offers exceptional horizontal and vertical viewing angles – ideal for group viewing
Compact Design for Monitor-Wall Installation
The LMD2041W has a compact body with a lightweight, robust aluminum slim bezel – making it an ideal choice for monitor-wall installation, both in studio sub-control rooms and OB vans.
Desktop Editing and Office Viewing
The LMD2041W can be used as a desktop monitor both for editing and office viewing with an optional SU561 monitor stand
Built-In Input Versatility
The LMD2041W has built-in standard input interfaces: two SDI (3G/HD/SD-SDI), one HDMI, and one analog composite input
Easy-to-Use Control Panel
A rotary-type switch and seven function-assignable buttons allow users speedy and intuitive operation, even in dark environments, thanks to LED indicators (which can be switched on/off)
Waveform Monitor, Audio Level Meter, and Time Code Display
The input signal's waveform, with a 2-channel audio level meter, can be displayed on screen. When an SDI interface is connected, the embedded audio level can be displayed on screen with an 8-channel audio level meter. A time code superimposed on SDI signals can be displayed on screen. Users can select either LTC or VITC. (The audio level meter function works only when receiving SDI-embedded audio signals)
Auto White Balance Calibration
Auto white balance calibration provides simple adjustment of white balance in combination with a PC and the commercially available calibration tool (X-Rite i1Pro series – sold separately)
Normal Scan and Over Scan
Scan size can be selected from normal scan (0%), over scan (5%), and native scan modes (pixel-for-pixel). The aspect ratio can be switched between 16:9 and 4:3 according to the input signal
External Remote Control
The LMD-2041W has an external remote control capability for input/output signal selection and adjustment of various items via Ethernet (10BaseT/100BaseTX) connection). Up to 32 monitors and up to four control units can be connected via Ethernet and controlled remotely




Picture Performance
Panel
a-Si TFT Active Matrix LCD
Picture Size (Diagonal)
508 mm
20 inches
Effective Picture Size (H x V)
442.8 x 249.1 mm
17 1/2 x 9 7/8 inches
Resolution (H x V)
1600 x 900 pixels
Aspect
16:9
Pixel Efficiency
0.9999
Backlight
LED
Colors
Approx.16.7 million colors
Viewing Angle (Panel Specification)
89°/89°/89°/89° (typical) (up/down/left/right contrast 10:1)
Normal Scan
0% scan
Over Scan
5% over scan
Input
Composite Input
BNC (x1), 1 Vp-p ±3dB, sync negative
SDI Input
BNC (x2)
HDMI Input
HDMI (x1) (HDCP correspondence)
Audio Input
Stereo mini jack (x1), -5 dBu 47 kΩ or higher
Parallel Remote
Modular connector 8-pin (x1)
(Pin-assignable)
Serial Remote (LAN)
RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
DC Input
XLR-type 4-pin (male) (x1), 12V DC (output impedance 0.05 Ω or less)
Output
Composite Output
BNC (x1), Loop-through, with 75 Ω automatic terminal function
SDI Output
BNC (x1), output signal amplitude: 800 mVp-p ±10%, output impedance: 75 Ω unbalanced
Audio Monitor Output
Stereo mini jack (x1)
Speaker (Built-in) Output
1.0 W (Monaural)
Headphone Output
Stereo mini jack (x1)
General
Power Requirements
100 V to 240 V AC, 0.8 A to 0.4 A, 50/60 Hz
12 V DC, 4.4 A
Power Consumption
Approx. 66 W (max.)
Inrush Current
(1) Maximum possible inrush current at initial switch-on (Voltage changes caused by manual switching): 57 A peak, 0.3 A r.m.s. (240V AC)
(2) Inrush current after a mains interruption of five seconds (Voltage changes caused at zero-crossing): 46 A peak, 0.2 A r.m.s. (240V AC)
Operating Temperature
0°C to 35°C (Recommended: 20°C to 30°C)
32°F to 95°F (Recommended: 68°F to 86°F)
Operating Humidity
30% to 85% (no condensation)
Storage/Transport Temperature
-20°C to +60°C
-4°F to +140°F
Storage/Transport Humidity
0% to 90%
Operating/Storage/Transport Pressure
700 hPa to 1060 hPa
Dimensions (W x H x D) [*1]
482.6 x 314.8 x 100.2 mm
482.6 x 332.8 x 171.4 mm (with supplied monitor feet)
482.6 x 452.0 x 269.9 mm (with SU-561 optional stand)
19 x 12 1/2 x 4 inches
19 x 13 1/8 x 6 3/4 inches (with supplied monitor feet)
19 x 17 7/8 x 10 3/4 inches (with SU-561 optional stand)
Mass
Approx. 6.7 kg (without a monitor stand)
Approx. 14 lb 12 oz (without a monitor stand)
Approx. 6.9 kg (with supplied monitor feet)
Approx. 15 lb 3 oz (with supplied monitor feet)
Approx. 8.8 kg (with monitor stand SU-561)
Approx. 19 lb 6 oz (with monitor stand SU-561)
Supplied Accessories
AC power cord (1)
AC plug holder (1)
Mounting bracket (2) (including 8 screws)
Monitor foot (2) (including 6 screws)
Operating Instructions (1)
CD-ROM (1)
Using the CD-ROM Manual (1)
Optional Accessories
SU-561 Monitor Stand
