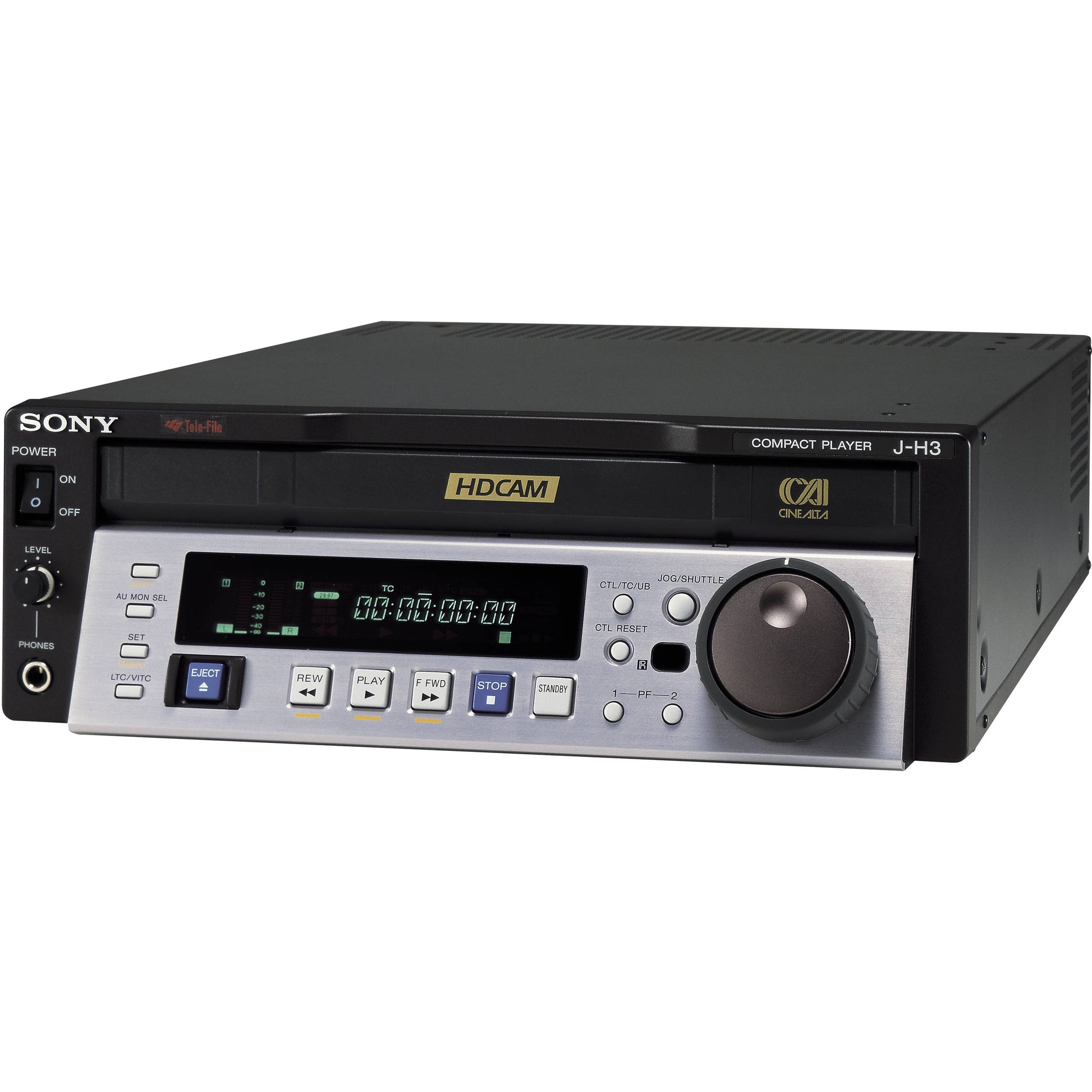

The Sony J-H3 is a compact video player for HDCAM high definition recorded video tapes. This unit is a playback only model. The deck can play-back just about any HD interlaced and progressive scan format recording including 24, 25 and 30 frame. In fact, this model can be used with Cine Alta 24/720p HDCAM recorded elements. Another deck in this series, the J-H1 covers all those progressive and interlaced capture formats except the 24-frame format. The deck has both analog and digital outputs and circuitry for down conversion to standard definition including DVCAM.
| Signal System | 50 and 60 frame Interlaced and Progressive Digital 24 Frame Progressive for Cine Alta Series |
| Tape Format | HDCAM |
| Tape Speed | 96.7 mm/second in 30 Frame Modes 80.7 mm/sec in 25 Frame Modes 77.4 mm/second in 24p Mode |
| Maximum Playback Time | 124 Minute Cassette in 30 Frame Modes 149 Minutes in 25 Frame Modes 155 Minutes in 24p Mode |
| Audio Signal Format | Analog Audio both XLR and RCA Outputs |
| Frequency Response | 20 Hz to 20 kHz |
| Signal to Noise Ratio | Not Specified by Manufacturer |
| Signal to Noise Ratio | Not Specified by Manufacturer |
| Input and Output Connectors | Digital HD Video- BNC (x 1) Analog HD Video- 3 BNC (x 1) Analog SD Video- BNC (x 1) Analog SD Video- RCA (x 1) Computer- 15-Pin (x 1) Fire Wire / iLink- Optional with HKJ-101 provides 6-Pin (x 1) Audio- RCA (x 2) Audio- XLR (x 2) Headphone- 1/4-Inch Phono (x 1) RS-232C Control- 9-Pin (x 1) RS-422A Control- 9-Pin (x 1) |
| Power Requirements | 100-240 Volts AC, 50 or 60 Hz |
| Power Consumption | 60 Watts |
| Operating Temperature | 41° to 104° F 5° to 40° C |
| Dimensions (WxHxD) | 12 1/8 x 4 x 15 3/4 Inches 307 x 100 x 397 mm |
| Weight | 15 Lbs. 9 oz. 7.5 kg |
Packaging Info
| Package Weight | 25.2 lb |
| Box Dimensions (LxWxH) | 22.5 x 18.6 x 11.1" |
