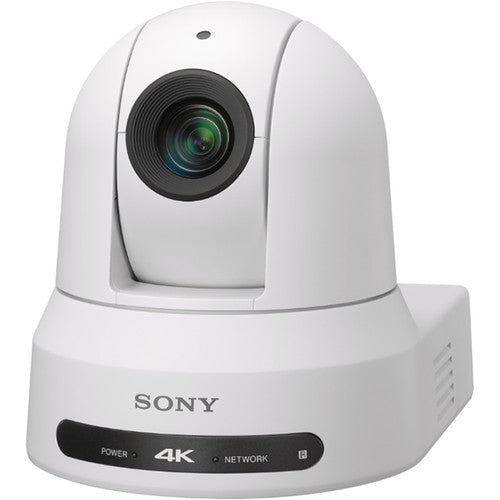

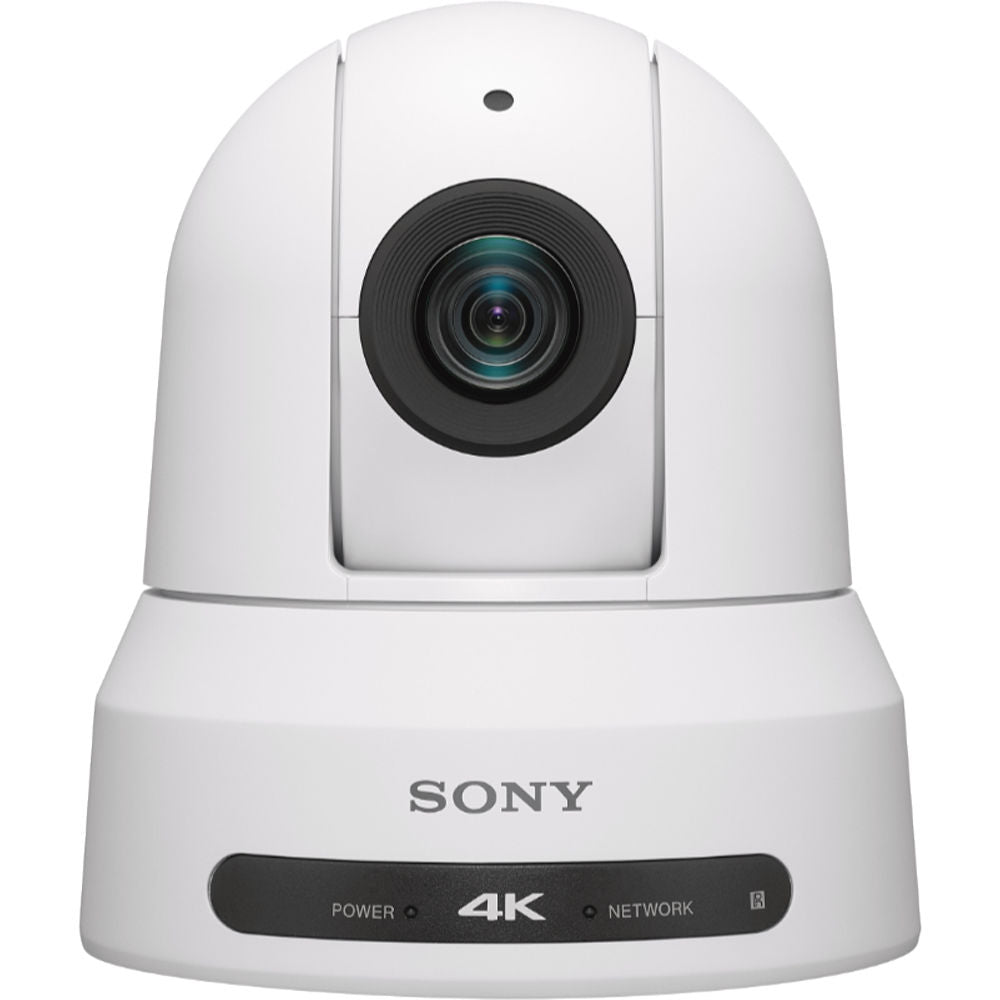

Sony BRC-X400 IP 4K PTZ Camera With NDI/HX Capability and Auto ICR (White)
MSRP: $5,995.00
Sony
Camera
Image Sensor
1/2.5 Exmor R CMOS
Image Sensor (Number of Effective Pixels)
Approx. 8.5M pixels
Signal System
2160/29.97p, 25p, 23.98p (HDMI and IP only)
1080/59.94p, 50p, 29.97p, 25p, 23.98p
1080/59.94i, 50i
720/59.94p, 50p
1080/59.94p, 50p, 29.97p, 25p, 23.98p
1080/59.94i, 50i
720/59.94p, 50p
4K capability
Yes (built-in 4K functions)
Minimum Illumination (50IRE)
1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)
Horizontal Resolution
1700 TV line (Center) (4K)
1000 TV line (Center) (FHD)
1000 TV line (Center) (FHD)
Gain
Auto/Manual (0 to +48 dB)
High Sensitivity On
High Sensitivity On
Shutter Speed
1/1 to 1/10000 sec (59.94 Hz system)
1/1 to 1/10000 sec (23.98 Hz system)
1/1 to 1/10000 sec (50 Hz system)
1/1 to 1/10000 sec (23.98 Hz system)
1/1 to 1/10000 sec (50 Hz system)
Exposure Control
Auto/Manual/Priority AE (Shutter, Iris)
White Balance
Auto1/Auto2/One Push WB/Indoor/Outdoor/Manual
Zoom capability
30x (4K with CIZ)/40x (HD with CIZ), Max. 80x (HD with CIZ* and Tele Convert Mode)
*CIZ = Clear Image Zoom
*CIZ = Clear Image Zoom
Focusing System
Auto/Manual
Horizontal Viewing Angle
Approx. 70.0° (Wide)
Focal Length
f=4.4 mm (Wide) to 88.0 mm (Tele)
F2.0 to F3.8
F2.0 to F3.8
Minimum Object Distance
80 mm (Wide)~
800 mm (Tele)
800 mm (Tele)
Pan/Tilt Angle
Pan: ±170°
Tilt: +90°/-20°
Tilt: +90°/-20°
Pan/Tilt Speed (Max.)
Pan: 300°/s
Tilt: 126°/s
Tilt: 126°/s
Pan/Tilt Speed
Pan: 1.1° to 101°/s
Tilt: 1.1° to 91°/s
Tilt: 1.1° to 91°/s
Pan/Tilt Speed (Slow)
Pan: 0.5° to 60°/s
Tilt: 0.5° to 60°/s
Tilt: 0.5° to 60°/s
Pan/Tilt Slow Mode
Yes
Preset Position
256 (CGI)
100 (VISCA)
100 (VISCA)
Picture Freeze Preset
Yes
Preset Mode1/Mode2
Yes
Network
IP Video resolution
3840x2160, 1920x1080, 1280x720, 720x576, 720x480, 640x360
Compression Format
H.264 High/Main/Baseline Profile
H.265: Main Profile
H.265: Main Profile
Maximum Frame Rate
H.264: 60fps
H.265: 60fps
H.265: 60fps
Bitrate Compression Mode
CBR/VBR (selectable)
Range of Bitrate Setting
512 Kbps ~50 Mbps
Multi Streaming Capability
3
Maximum Number of Clients
5
Protocols
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, UPnP, VISCA over IP
NDI®|HX Capability
Yes Optional (requires a license)
Camera Features
Auto ICR
Yes (available through future upgrade planned in early 2020)
Day/Night
Yes
Visibility Enhancer
Yes
Image Stabilization
Yes
Image Flip
Yes
Picture Profile Preset
Yes
Color Gain
Yes (15 step)
Color Hue
Yes (15 step)
Color Matrix
Yes (Standard, HIGH SAT, FL LIGHT, MOVIE, STILL, CINEMA, PRO, ITU709, B&W)
Gamma
Standard/Straight/512Pattern/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709
Gamma Level
Yes (15 step)
Black level
Yes (97 step)
Black Gamma
Yes (15 step)
Knee Point
Yes (15 step)
Knee Slope
Yes (15 step)
Flicker Cancel
On/Off
B&W
Yes
Color Bar
On/Off
Web UI
Ver Up
Yes
Audio
Channel
2ch
Audio Codec
AAC LC 128kbps/ST (IP)
AAC LC 256kbps/ST (IP)
AAC LC 256kbps/ST (IP)
Setting Option
Auto Gain Control (AGC): On/Off
Equalizer: Off/Low Cut/Voice enhancement
Input selection: Microphone/Line
Mic volume: -10~+10 (21 steps)
Audio codec
Equalizer: Off/Low Cut/Voice enhancement
Input selection: Microphone/Line
Mic volume: -10~+10 (21 steps)
Audio codec
Embedded Audio in Baseband Video
Yes (3G-SDI, HDMI)
Embedded Audio in IP Streaming
Yes

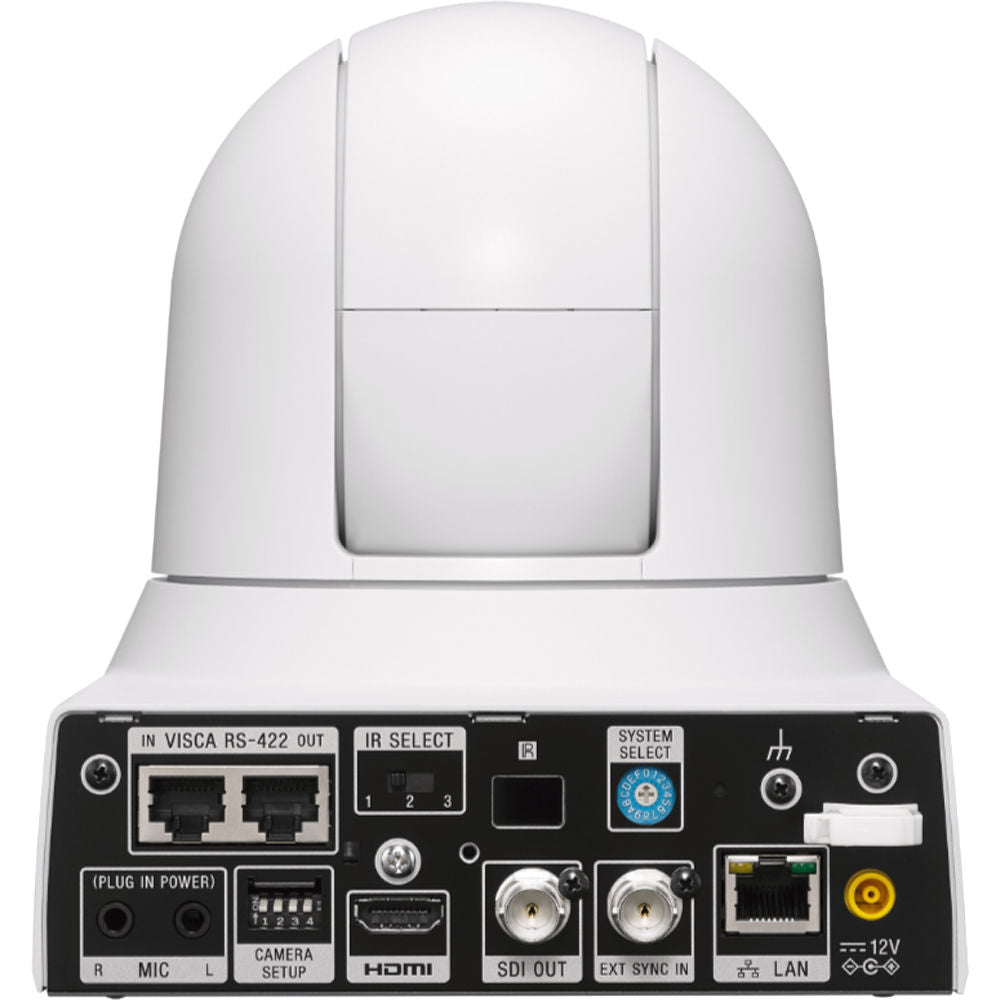

Interface
4K Video Output
HDMI x1 and IP (streaming) x1
HD Video Output
3G-SDI x1, HDMI x1, IP (streaming) x1
HDMI Color Space
YCbCr, 4:2:2 8 bit
RGB, 4:4:4 8 bit
RGB, 4:4:4 8 bit
Camera Control Interface
VISCA RS-422 RJ45 (In/Out)
VISCA over IP RJ-45
S700PTP RJ-45
VISCA over IP RJ-45
S700PTP RJ-45
IR Remote Control
Yes
Microphone Input
Mini-phone (φ3.5mm) x2 (Mic/Line Selectabe)
Sync. System
EXT/INT
External Sync. Input
BNC, 75Ω, HD 3-level sync, SD Black Burst
Tally
Front x 1
Power Connector Type
IEC60130-10 (JEITA standard RC-5320A) TYPE4
General
Power Requirements
DC 12V (DC 10.8 to 13.2V), PoE+ (IEEE802.3at compliant)
Power Consumption
25.5 W (Max)
Operating Temperature
0 °C to 40 °C
32 °F to 104 °F
32 °F to 104 °F
Storage Temperature
-20 °C to +60 °C
-4 °F to +140 °F
-4 °F to +140 °F
Dimensions (W x H x D)*1
158.4 x 177.5 x 200.2 mm
6 1/4 x 7 x 8 inch
6 1/4 x 7 x 8 inch
Mass
Approx. 1.8 kg
3 lb 15.5 oz
3 lb 15.5 oz
Body Color
White/Black
Size of Screw Hole for Tripod
1/4-20UNC x1
Mountable Angle
< ±15°
Ceiling Mount
Yes
Supplied Accessories
AC power adaptor (1)
IR Remote Commander Unit (1)
Ceiling bracket (2)
Wire rope (1)
Screw M3 x 8 (9)
Screw M2.6 x6 BLACK (1)
HDMI cable fixing plate (1)
Safety regulation (1)
Download site information (1)
Warranty (1)
IR Remote Commander Unit (1)
Ceiling bracket (2)
Wire rope (1)
Screw M3 x 8 (9)
Screw M2.6 x6 BLACK (1)
HDMI cable fixing plate (1)
Safety regulation (1)
Download site information (1)
Warranty (1)
- Excellent 4K images, even in low light
-
Up to 80x zoom
- Wide viewing angle
-
Support for NDI |HX
- Multiple control protocols
-
Remote viewing
- Simpler installation, lower costs
-
Ideal for live production
Capture every point of view in 4K with excellent picture quality and efficient IP production workflow
The versatile BRC-X400 PTZ camera is ideal for use in a wide range of environments - from broadcast studios and remote on-air suites to sports stadiums, arenas, houses of worship and lecture halls.The camera's 1/2.5-type Exmor R CMOS sensor captures broadcast quality 4K images with excellent sensitivity, very low noise and rich, natural colour reproduction. It's complemented by the integrated high-resolution lens that offers a powerful zoom capability of up to 80x in Full HD*** (30x in 4K), with an expansive approx. 70° wide angle coverage to capture every point of view.
Efficient IP-based live production is augmented with support for NDI®|HX* (via optional license), allowing flexible configuration with other networked NDI-enabled devices.
Images also can be reviewing remotely via a web browser, with support for RTSP (Real Time Streaming Protocol) ensuring smooth, stable streaming of video plus audio (from an optional microphone, available separately) over an IP network.
Installation and set-up is easy, with a new Picture Setting File** allowing the same settings to be applied to multiple cameras. Convenient integration in multi-camera live events is also simplified with genlock support and an 'on-air' tally lamp.
Camera Image Sensor 1/2.5 Exmor R CMOS
Image Sensor (Number of Effective Pixels) Approx. 8.5M pixels
Signal System 2160/29.97p, 25p, 23.98p (HDMI and IP only)
1080/59.94p, 50p, 29.97p, 25p, 23.98p
1080/59.94i, 50i
720/59.94p, 50p
4K capability Yes (built-in 4K functions)
Minimum Illumination (50IRE) 1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)
Horizontal Resolution 1700 TV line (Center) (4K)
1000 TV line (Center) (FHD)
Gain Auto/Manual (0 to +48 dB)
High Sensitivity On
Shutter Speed 1/1 to 1/10000 sec (59.94 Hz system)
1/1 to 1/10000 sec (23.98 Hz system)
1/1 to 1/10000 sec (50 Hz system)
Exposure Control Auto/Manual/Priority AE (Shutter, Iris)
White Balance Auto1/Auto2/One Push WB/Indoor/Outdoor/Manual
Zoom capability 30x (4K with CIZ)/40x (HD with CIZ), Max. 80x (HD with CIZ* and Tele Convert Mode)
*CIZ = Clear Image Zoom
Focusing System Auto/Manual
Horizontal Viewing Angle Approx. 70.0° (Wide)
Focal Length f=4.4 mm (Wide) to 88.0 mm (Tele)
F2.0 to F3.8
Minimum Object Distance 80 mm (Wide)~
800 mm (Tele)
Pan/Tilt Angle Pan: ±170°
Tilt: +90°/-20°
Pan/Tilt Speed (Max.) Pan: 300°/s
Tilt: 126°/s
Pan/Tilt Speed Pan: 1.1° to 101°/s
Tilt: 1.1° to 91°/s
Pan/Tilt Speed (Slow) Pan: 0.5° to 60°/s
Tilt: 0.5° to 60°/s
Pan/Tilt Slow Mode Yes
Preset Position 256 (CGI)
100 (VISCA)
Picture Freeze Preset Yes
Preset Mode1/Mode2 Yes
Network IP Video resolution 3840x2160, 1920x1080, 1280x720, 720x576, 720x480, 640x360
Compression Format H.264 High/Main/Baseline Profile
H.265: Main Profile
Maximum Frame Rate H.264: 60fps
H.265: 60fps
Bitrate Compression Mode CBR/VBR (selectable)
Range of Bitrate Setting 512 Kbps ~50 Mbps
Multi Streaming Capability 3
Maximum Number of Clients 5
Protocols IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, UPnP, VISCA over IP
NDI®|HX Capability Yes Optional (requires a license)
Camera Features Auto ICR Yes (available through future upgrade planned in early 2020)
Day/Night Yes
Visibility Enhancer Yes
Image Stabilization Yes
Image Flip Yes
Picture Profile Preset Yes
Color Gain Yes (15 step)
Color Hue Yes (15 step)
Color Matrix Yes (Standard, HIGH SAT, FL LIGHT, MOVIE, STILL, CINEMA, PRO, ITU709, B&W)
Gamma Standard/Straight/512Pattern/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709
Gamma Level Yes (15 step)
Black level Yes (97 step)
Black Gamma Yes (15 step)
Knee Point Yes (15 step)
Knee Slope Yes (15 step)
Flicker Cancel On/Off
B&W Yes
Color Bar On/Off
Web UI Ver Up Yes
Audio Channel 2ch
Audio Codec AAC LC 128kbps/ST (IP)
AAC LC 256kbps/ST (IP)
Setting Option Auto Gain Control (AGC): On/Off
Equalizer: Off/Low Cut/Voice enhancement
Input selection: Microphone/Line
Mic volume: -10~+10 (21 steps)
Audio codec
Embedded Audio in Baseband Video Yes (3G-SDI, HDMI)
Embedded Audio in IP Streaming Yes
Interface 4K Video Output HDMI x1 and IP (streaming) x1
HD Video Output 3G-SDI x1, HDMI x1, IP (streaming) x1
HDMI Color Space YCbCr, 4:2:2 8 bit
RGB, 4:4:4 8 bit
Camera Control Interface VISCA RS-422 RJ45 (In/Out)
VISCA over IP RJ-45
S700PTP RJ-45
IR Remote Control Yes
Microphone Input Mini-phone (φ3.5mm) x2 (Mic/Line Selectabe)
Sync. System EXT/INT
External Sync. Input BNC, 75Ω, HD 3-level sync, SD Black Burst
Tally Front x 1
Power Connector Type IEC60130-10 (JEITA standard RC-5320A) TYPE4
General Power Requirements DC 12V (DC 10.8 to 13.2V), PoE+ (IEEE802.3at compliant)
Power Consumption 25.5 W (Max)
Operating Temperature 0 °C to 40 °C
32 °F to 104 °F
Storage Temperature -20 °C to +60 °C
-4 °F to +140 °F
Dimensions (W x H x D)*1 158.4 x 177.5 x 200.2 mm
6 1/4 x 7 x 8 inch
Mass Approx. 1.8 kg
3 lb 15.5 oz
Body Color White/Black
Size of Screw Hole for Tripod 1/4-20UNC x1
Mountable Angle < ±15°
Ceiling Mount Yes
Supplied Accessories AC power adaptor (1)
IR Remote Commander Unit (1)
Ceiling bracket (2)
Wire rope (1)
Screw M3 x 8 (9)
Screw M2.6 x6 BLACK (1)
HDMI cable fixing plate (1)
Safety regulation (1)
Download site information (1)
Warranty (1)
- Excellent 4K images, even in low light
-
Up to 80x zoom
- Wide viewing angle
-
Support for NDI |HX
- Multiple control protocols
-
Remote viewing
- Simpler installation, lower costs
-
Ideal for live production
