Sony HXCU-FB80 4K/HD Camera Control Unit for HXC-FB80N Camera (Neutrik)

Inquire about Sony HXCU-FB80 4K/HD Camera Control Unit for HXC-FB80N Camera (Neutrik)

Availability:
SKU: HXCU-FB80N
Tags:
Collections:


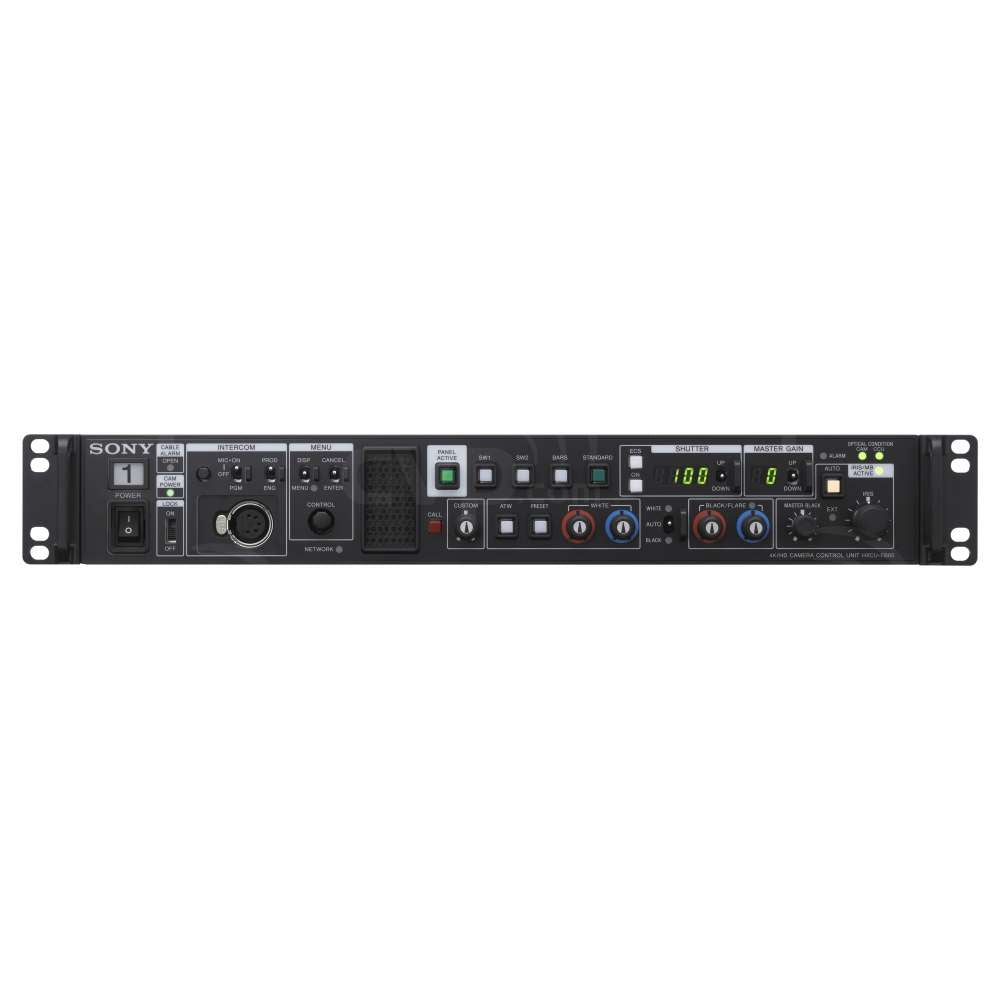

HD Studio Camera System with 4K Upscale and HD HDR Capability
The HXC-FB80 is a cost-effective high-performance HD portable camera with three Sony 2/3-inch Exmor CMOS sensors and a 3G-SDI platform capable of 1080/50p and 59.94p signal processing while achieving low power consumption. In combination with the HXC-FB80 HD Camera, HXCU-FB80 CCU offers user-beneficial expandability including 4K upscale and HD HDR support (HLG, Hybrid Log-Gamma) for a future-proof solution. The optional PC-based HZC-RCP5 Remote Control Panel is available for a simpler application system.


General
Power Requirements
AC 100 V to 240 V, 2.2A (max), 50/60 Hz
Operating Temperature
5°C to +40°C
41°F to +104°F
Storage Temperature
-20°C to +60°C
-4°F to +140°F
Dimensions (W x H x D)*1 (W: without Rack Mounting Bracket)
482 (424) x 66 x 366 mm
19 (16 3/4) x 2 5/8 x 14 1/2 inches
Mass
Approx. 6.2 kg
Approx. 13 lb 11 oz
Signal Format
4K 2160 : 59.94p, 50p (2SI, SQD, Level-A/B) HD 1080: 59.94p, 59.94i, 50p, 50i, 29.97PsF, 25PsF, 23.98PsF, HD 720 : 59.94p, 50p SD 480 : 59.94i, 576: 50i

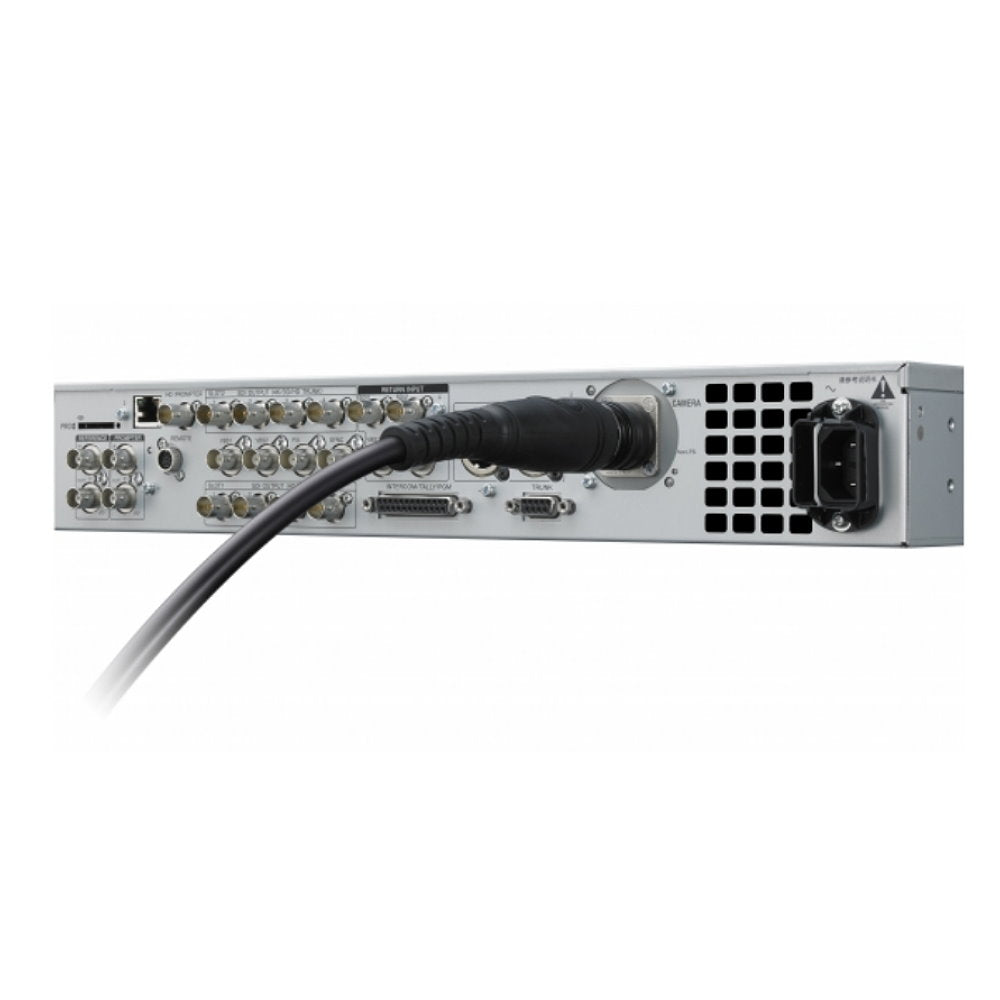

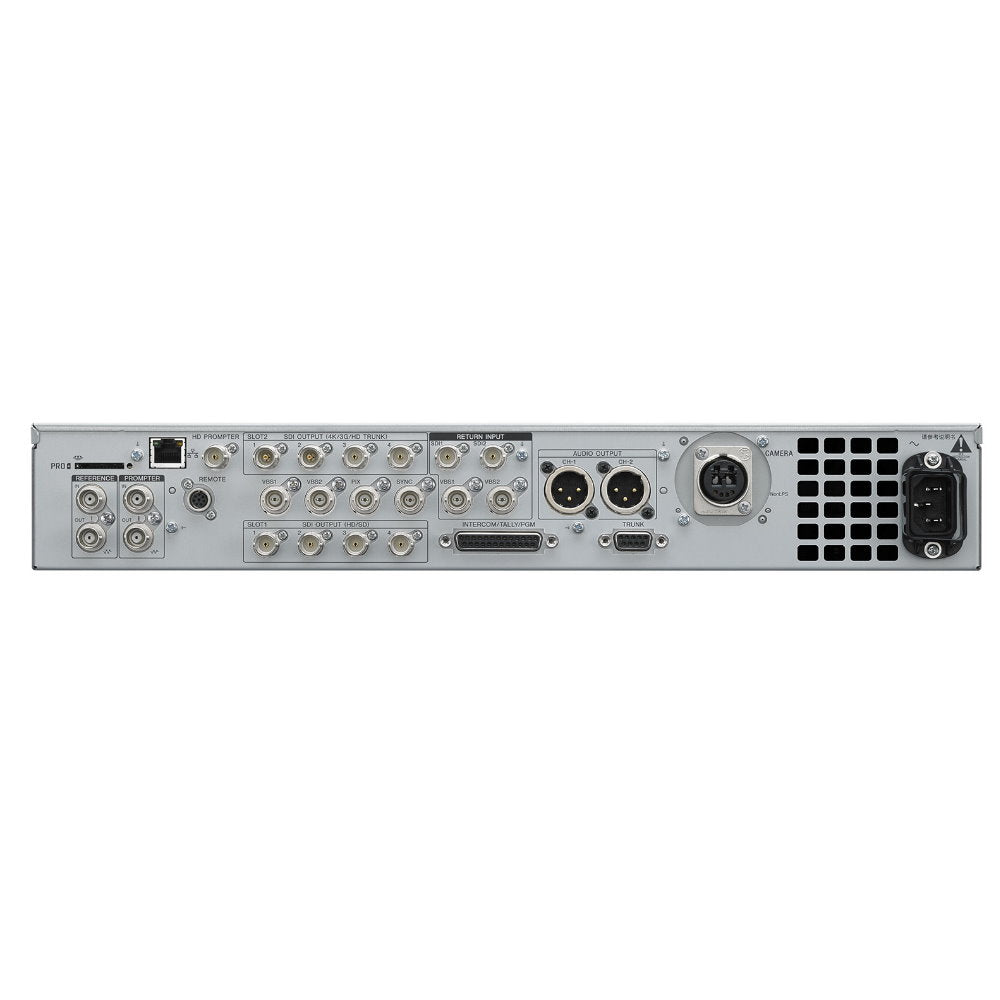

Input/Output
Camera
Optical Fiber (x1), CCFN Cable or Single Mode Fiber Cable (LC type)
Distance of Power Supply
600m (max.) by CCFN Sony Hybrid Type Fiber Cable (with Portable Lens and HXC-FB80), 1,000m (max.)by CCFN Sony Hybrid Type Fiber Cable (with Portable Lens and HXC-P70)
Distance of Fiber Cable by Local Power Supply
10km (max.) by Single Mode Fiber Cable (LC type) (with HXC-FB80)
Intercom (on the front panel)
XLR type: 5-pin, female (x1)
Intercom/Tally/Program
D-sub 25-pin, female (x1)
• INTERCOM (PROD, ENG), 4Wire/RTS/Clear-Com, 0 dBu
• PGM 1 system, -20/0/+4 dBu
• TALLY (R, G)
• PREVIEW
Remote
8-pin (x1)
Trunk
D-sub 9-pin, female (x1) RS-232C/RS-422A, 1 system
LAN
8-pin (x1)
Reference
BNC (x2), In: HD: SMPTE 274M, Tri-Level Sync, 0.6 Vp-p, 75 Ω SD: Black Burst (NTSC: 0.286 Vp-p, 75 Ω / PAL: 0.3 Vp-p, 75 Ω), Out: Loop-Through
Prompter
BNC (x2), In: VBS, 1.0 Vp-p, 75 Ω, 1 system, Out: Loop-Through
Input
AC In
(x1), AC 100 V to 240 V
Return In VBS1, VBS2
BNC (x2), 1.0 Vp-p, 75 Ω, 2 systems
Return In SDI1, SDI2
BNC (x2) HD SDI, SMPTE ST292-1, 1080: 59.94i, 50i, 29.97PsF, 25PsF, 23.98PsF
720: 59.94p, 50p SD SDI, 480 : 59.94i, 576: 50i
HD Prompter In
BNC (x1) HD SDI: SMTPE ST292-1, 0.8 Vp-p, 75 Ω
Output
SDI Out (SLOT-1) HD/SD
BNC (x4) HD SDI: SMTPE ST292-1, 0.8 Vp-p, 75 Ω, SD SDI: SMPTE 259M, 0.8 Vp-p, 75 Ω, HD SDI/SD SDI selectable
SDI Out (SLOT-2) 3G/4K/HD Trunk
BNC (x4) : 4K/3G SDI 1~4: SMPTE ST425-5, Level-A/B, 0.8 Vp-p, 75 Ω: 2160/59.94p, 2160/50p, 1080/59.94p, 1080/50p, 4K/12G SDI 1, 2: SMPTE ST2082-1, 0.8 Vp-p, 75 Ω: 2160/59.94p, 2160/50p, HD 3G SDI: SMPTE ST425-1, 0.8 Vp-p, 75 Ω: 1080/59.94p, 1080/50p, HD SDI 3, 4: SMPTE ST292-1, HD Trunk 1080/59.94i, 1080/50i, 0.8 Vp-p, 75 Ω, 4K/3G/HD Trunk: Selectable
VBS1, 2
BNC (x2), VBS 1.0 Vp-p, 75 Ω
Pix
BNC (x1), VBS/R/G/B (VBS 1.0 Vp-p, 75 Ω)
Sync
BNC (x1), SMPTE 274-1, HD: tri-level sync, 0.6 Vp-p, 75 Ω SD: composite sync, 0.3 Vp-p, 75 Ω HD SYNC/SD SYNC selectable
Audio Out CH-1, CH-2
XLR 3-pin, male (x2), 0/–20 dBu
Supplied Accessories
Supplied Accessories
Tally Number Plate 1 Set (0~9)
Operating Instructions Camera Operation Manual CD-ROM (1), JP, GB, FR, DE, IT, ES, CS
Operation Guide (1)
Warranty booklet (1)
