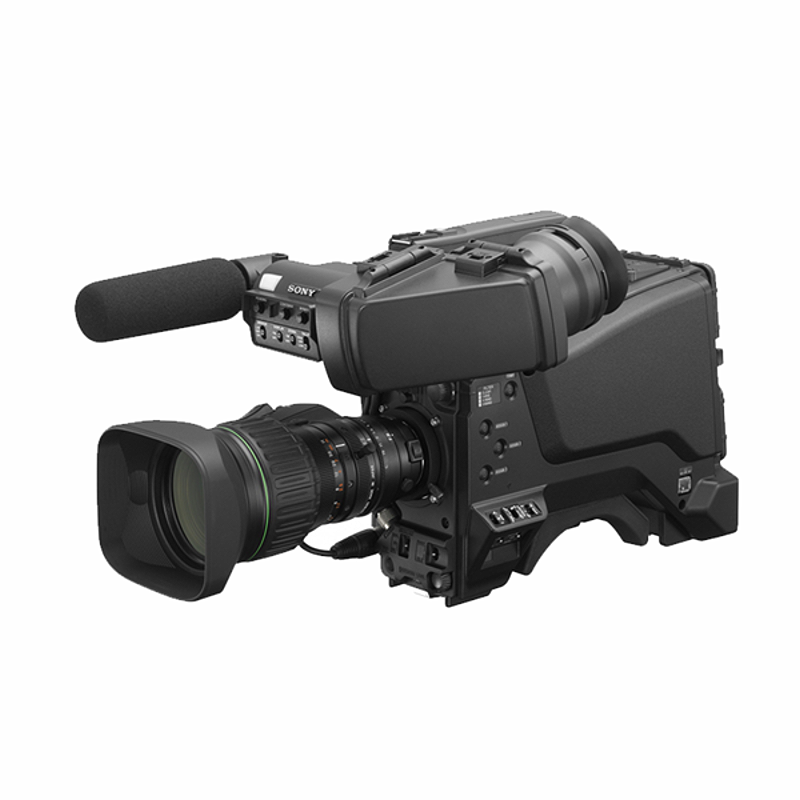

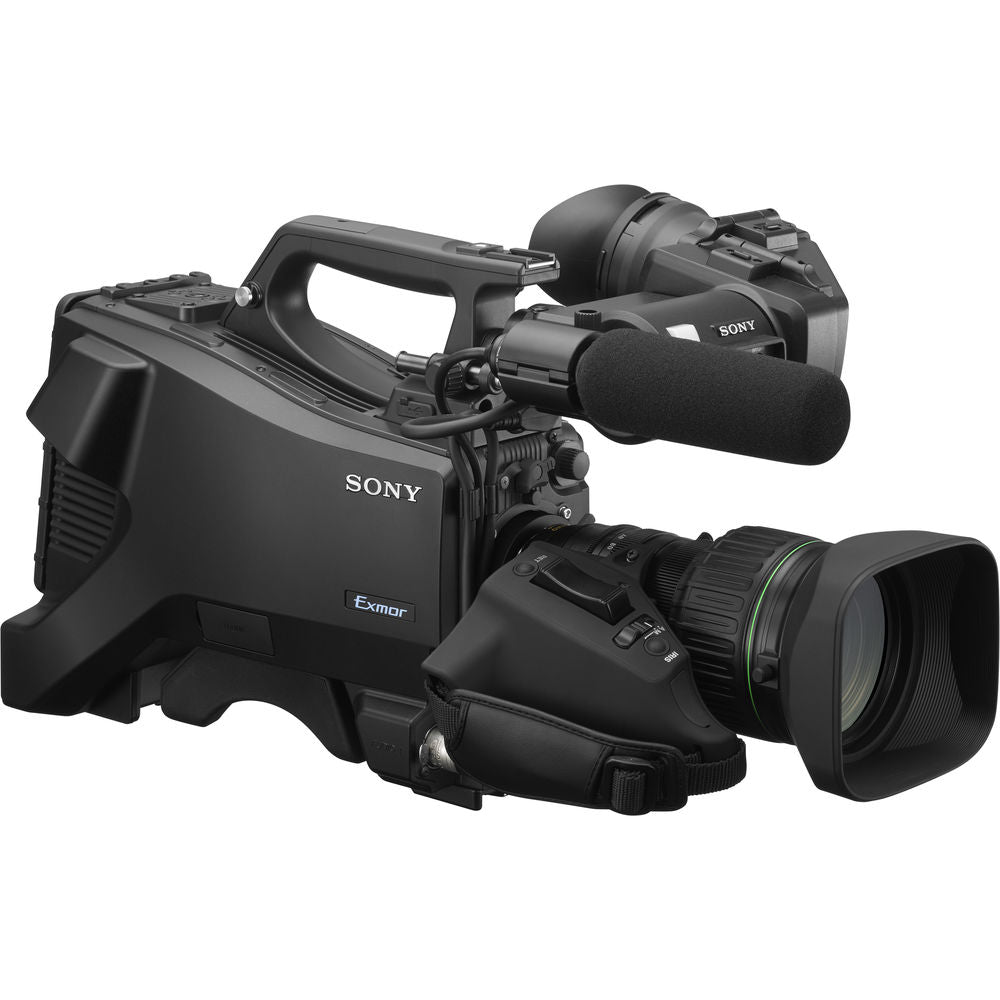

Sony HXC-FB80KN 1080/60P Hd Studio Camera With Eng Vf, Mic And 20X Lens (Neutrik)

Sony

General

Power Consumption

Approx.19W (Camera body only)
Approx. 32W (Camera body with supplied viewfinder)

Operating Temperature

-10°C to +45°C
14°F to +113°F

Storage Temperature

-20°C to +60°C
-4°F to +140°F

Dimensions (W x H x D) *1

(Body) 160 x 266 x 314 mm
(Body) 6 3/8 x 10 1/2 x 12 3/8 inches
(with Lens&VF) *2 295 x 433 x 571 mm
(with Lens&VF) *2 11 5/8 x 17 1/8 x 22 1/2 inches

Mass

(Body) Approx. 3.4 kg
(Body) Approx. 7 lb 8 oz
(with Lens&VF) Approx. 6.8 kg
(with Lens&VF) Approx. 14 lb 16 oz

Camera Section

Pickup Device

3-chip 2/3-inch type CMOS

Effective Picture Elements

1920 x 1080 (H x V)

Signal Format

HD: 1080/59.94p, 1080/59.94i, 1080/50p, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/23.98PsF, 720/59.94p, 720/50p SD: 480/59.94i, 576/50i

Spectrum System

F1.4 prism system

Lens Mount

Sony 2/3-inch type bayonet mount

Built-in Filters

CC: Electrical
ND: 1; CLEAR, 2; 1/4ND, 3; 1/16ND, 4; 1/64ND

Sensitivity (at 2000 lx, 3200K, 89.9% reflectance)

F12 (59.94 Hz), F13 (50 Hz)

Signal-to-noise Ratio

Typical 60dB *3 (1080/59.94i)

Horizontal Resolution

1,000 TV lines or higher

Gain

-3, 0, 3, 6, 9, 12 dB

Shutter Speed

1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (59.94i mode)

Shutter Speed (Slow Shutter (SLS))

2, 3, 4, 5, 6, 7, 8-frame accumulation (only in 1080 mode at 59.94i/p, 50i/p, 29.97PsF, 25PsF, 23.98PsF)

Input/Output

Audio Input (CH1)

XLR type: 3-pin, female (x1)
MIC IN: -60dBu (Up to -20dBu can be set by using menu or HXCU-FB80), balanced
LINE IN: 0dBu, balanced

Audio Input (CH2)

XLR type: 3-pin, female (x1)
MIC IN: -60dBu (Up to -20dBu can be set by using menu or HXCU-FB80), balanced
LINE IN: 0dBu, balanced

Prompter/Genlock

BNC (x1); Gen-Lock In or Prompter Out

Test Output

TEST Out (Analog output with/without characters), or HD/SD Sync Out

SDI Input/Output

BNC (x1) SMPTE ST292-1, for HD Prompter Out or HD Video Trunk In

SDI Output

BNC (x1) SMPTE ST425-1/ST292-1/259M; 3G/HD-SDI or SD-SDI selectable

CCU

Optical Fiber (x1), CCFN Cable or Single Mode Fiber Cable (LC type)

Distance of Power Supply

600m (max.) by CCFN Sony Hybrid Type Fiber Cable (with Portable Lens and HXCU-FB80)

Distance of Fiber Cable

10km (max.) by Single Mode Fiber Cable (LC type) with Local Power Supply (with HXCU-FB80)

Intercom

XLR type: 5-pin, female (x1)

Earphone Output

Stereo mini jack (x1)

Lens

12-pin (x1)

Viewfinder

20-pin (1), for HDVF only

Remote

8-pin (x1)

TRUNK Input/Output

TRUNK LINE D-sub 9-pin, female (x1) : RS-232C, or Remote 8pin : RS-422A

EXT Input/Output

(in TRUNK I/O) D-sub 9-pin, female (x1)

USB

USB 2.0 (x1)

DC Input

XLR-type 4-pin (x1), DC 10.5 V to 17 V

DC Output

4-pin (x1), DC 10.5 V to 17 V, 1.5 A (max.)

Viewfinder Display

Screen Size

155.5 x 87.5mm (7 inch diagonal)

Aspect Ratio

16:9

Picture Elements

1920(H) x 1080(V) RGB stripe array

Share:

->Build a HXCFB80 System

Description

Description

A full HD studio camera system with 4K upscale and HD HDR capability

Sony introduces an ideal solution for 4K/HD live production, delivering efficient operation and expanding applications in the business and industry market in addition to the content creation applications for broadcast and production.

Images that bring people together

Enter the world of 4K and HD HDR live production with Sony’s affordable HXC-FB80 studio camera. Ideal for low light productions, with a longer cable extension and extra functionality like paint control. The HXC-FB80 can be your low-cost entry into 4K UHD video broadcast.

Discover the new HXC-FB80

The new HXC-FB80 HD Portable Camera as well as the HXC-P70 Multi-Purpose Camera are equipped with three 2/3-inch full-HD Exmor^TM CMOS sensors to provide excellent sensitivity – F13 in 50 Hz and F12 in 59.94 Hz in 1080 mode – with a typical signal-to-noise ratio of -60 dB. With sensors common to both the HXC-FB80 and HXC-P70, you can flexibly configure these cameras as required, and you can use a wide range of output formats.

4K upscale and HD HDR

The newly developed 3G platform enhances the HXC-FB80’s capabilities in 1080/50p and 59.94p signal processing while achieving low power consumption. Furthermore, in combination with the HXCU-FB80 4K/HD Camera Control Unit, the HXC-FB80 offers useful expandability including 4K upscale and HD HDR support (HLG, Hybrid Log-Gamma)* for a future-proof solution. The optional PC-based HZC-RCP5 Remote Control Panel is also available for a simpler application system.

* Supported with the HXC-FB80 and HXCU-FB80. HD HDR support requires firmware upgrade.

5 great reasons to choose the HXC-FB80 studio camera

There are very exciting reasons to discover our HXC-FB80 Full HD studio camera. Compact, versatile and appealingly cost-effective, it’s your ideal entry to the world of 4K and HD HDR live production.

Your future-proofed 4K live production solution

The HXC-FB80 gives you a future-proofed entry point to the benefits of 4K production. Teamed with the HXCU-FB80 Camera Control Unit, detail-packed 4K resolution (3840 x 2160) images are available – making the HXC-FB80 system ideal for creating content in Ultra HD. The camera can comfortably output 3G-SDI signals including 1080/50p and 59.94p. The 3G processor can also support 1080/23.92PsF on top of 25PsF and 29.97PsF.

Ready for HDR

Future-proof your content for viewers to enjoy on the fast-growing choice of High Dynamic Range TV sets and display devices. A free firmware update (scheduled for summer 2018) enables HD HDR production, with support for HLG (Hybrid Log-Gamma).

Big on picture quality and performance

The HXC-FB80 offers impressive imaging performance and functionality in a portable camera. It’s an ideal partner for our RCP-1000/1500 series remote control panels – or team with the HZC-RCP5 remote control software for a highly convenient live 5-camera system. You’ll enjoy many advanced features like paint control that are familiar to users of our high-end HDC-series system cameras. And it’s also compatible with appealing options like the latest Sony OLED viewfinders. As a further refinement, there’s a new optical low pass filter option to reduce moiré patterning that can be caused by LED video walls often used at sports and other live events.

Great images in any light

Incorporating three 2/3-inch Exmor CMOS sensors, HXC-FB80 and HXC-P70 offer stunning Full HD picture quality, with a sensitivity of F13 at 1080/50i and a corresponding signal-to-noise ratio of just -60 dB. It’s great for shooting in low light environments, delivering extra detail with extremely low noise.

More format flexibility

The camera head can comfortably output 3G-SDI signals in a range of formats right up to 1080/50p, with 4K available via the CCU’s 12G-SDI and Quad 3G-SDI interfaces. So you can enjoy maximum production convenience – and your viewers can enjoy the best Full HD picture quality.

[lookbook handle="slider-lookbook-1328"]

[lookbook handle="slider-lookbook-1325"]

General Power Consumption Approx.19W (Camera body only)
Approx. 32W (Camera body with supplied viewfinder) Operating Temperature -10°C to +45°C
14°F to +113°F Storage Temperature -20°C to +60°C
-4°F to +140°F Dimensions (W x H x D) *1 (Body) 160 x 266 x 314 mm
(Body) 6 3/8 x 10 1/2 x 12 3/8 inches
(with Lens&VF) *2 295 x 433 x 571 mm
(with Lens&VF) *2 11 5/8 x 17 1/8 x 22 1/2 inches Mass (Body) Approx. 3.4 kg
(Body) Approx. 7 lb 8 oz
(with Lens&VF) Approx. 6.8 kg
(with Lens&VF) Approx. 14 lb 16 oz Camera Section Pickup Device 3-chip 2/3-inch type CMOS Effective Picture Elements 1920 x 1080 (H x V) Signal Format HD: 1080/59.94p, 1080/59.94i, 1080/50p, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/23.98PsF, 720/59.94p, 720/50p SD: 480/59.94i, 576/50i Spectrum System F1.4 prism system Lens Mount Sony 2/3-inch type bayonet mount Built-in Filters CC: Electrical
ND: 1; CLEAR, 2; 1/4ND, 3; 1/16ND, 4; 1/64ND Sensitivity (at 2000 lx, 3200K, 89.9% reflectance) F12 (59.94 Hz), F13 (50 Hz) Signal-to-noise Ratio Typical 60dB *3 (1080/59.94i) Horizontal Resolution 1,000 TV lines or higher Gain -3, 0, 3, 6, 9, 12 dB Shutter Speed 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (59.94i mode) Shutter Speed (Slow Shutter (SLS)) 2, 3, 4, 5, 6, 7, 8-frame accumulation (only in 1080 mode at 59.94i/p, 50i/p, 29.97PsF, 25PsF, 23.98PsF) Input/Output Audio Input (CH1) XLR type: 3-pin, female (x1)
MIC IN: -60dBu (Up to -20dBu can be set by using menu or HXCU-FB80), balanced
LINE IN: 0dBu, balanced Audio Input (CH2) XLR type: 3-pin, female (x1)
MIC IN: -60dBu (Up to -20dBu can be set by using menu or HXCU-FB80), balanced
LINE IN: 0dBu, balanced Prompter/Genlock BNC (x1); Gen-Lock In or Prompter Out Test Output TEST Out (Analog output with/without characters), or HD/SD Sync Out SDI Input/Output BNC (x1) SMPTE ST292-1, for HD Prompter Out or HD Video Trunk In SDI Output BNC (x1) SMPTE ST425-1/ST292-1/259M; 3G/HD-SDI or SD-SDI selectable CCU Optical Fiber (x1), CCFN Cable or Single Mode Fiber Cable (LC type) Distance of Power Supply 600m (max.) by CCFN Sony Hybrid Type Fiber Cable (with Portable Lens and HXCU-FB80) Distance of Fiber Cable 10km (max.) by Single Mode Fiber Cable (LC type) with Local Power Supply (with HXCU-FB80) Intercom XLR type: 5-pin, female (x1) Earphone Output Stereo mini jack (x1) Lens 12-pin (x1) Viewfinder 20-pin (1), for HDVF only Remote 8-pin (x1) TRUNK Input/Output TRUNK LINE D-sub 9-pin, female (x1) : RS-232C, or Remote 8pin : RS-422A EXT Input/Output (in TRUNK I/O) D-sub 9-pin, female (x1) USB USB 2.0 (x1) DC Input XLR-type 4-pin (x1), DC 10.5 V to 17 V DC Output 4-pin (x1), DC 10.5 V to 17 V, 1.5 A (max.) Viewfinder Display Screen Size 155.5 x 87.5mm (7 inch diagonal) Aspect Ratio 16:9 Picture Elements 1920(H) x 1080(V) RGB stripe array
