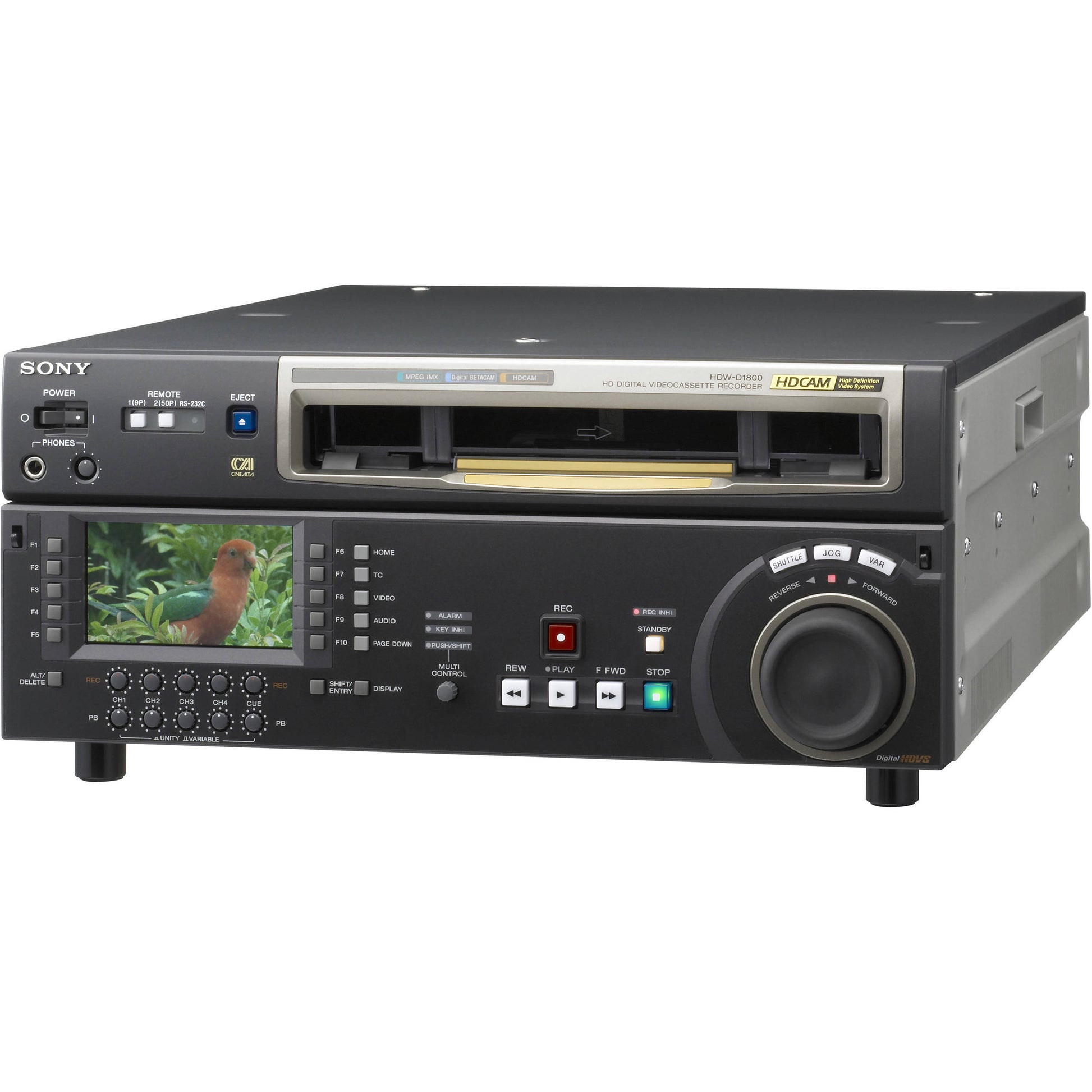

Sony HDW-D1800 CineAlta HDCAM Studio Editing Recorder with Multi-Format Compatibility and Legacy Playback

Sony

Sony HDW-D1800

Signal System 1080: 59.94i 29.97PsF, 50i, 25PsF, 24PsF, 23.98PsF
Tape Format HDCAM
Playback: Digital Betacam, MPEG IMX
Tape Speed HDCAM
59.94i, 29.97PsF: 96.7 mm/s
50i, 25PsF: 80.6 mm/s
24PsF, 23.98PsF: 77.4 mm/s

Digital BETACAM
96.7 mm/s

MPEG IMX
525/59.94i: 64.5 mm/s
625/50i 53.8 mm/s
Signal-to-Noise Ratio Analog Composite Output: 53 dB
Maximum Recording Time 59.94i, 29.97PsF: 124 min (BCT-124HDL Cassette)
50i, 25PsF: 149 min (BCT-124HDL Cassette)
24PsF, 23.98PsF: 155 min (BCT-124HDL Cassette)
59.94i, 29.97PsF: 40 min (BCT-40HD Cassette)
48 minutes (50i, 25PsF, with BCT-40HD Cassette)
50 minutes (24PsF, 23.98PsF, with BCT-40HD Cassette)
Audio Signal Format HDCAM
Frequency Response 20 Hz to 20 kHz, +0.5 dB/-1.0 dB (0 dB at 1 kHz)
Signal to Noise Ratio >45 dB
Input and Output Connectors HD-SDI: BNCx1 (x1 Input, x1 Output)
SD-SDI: BNCx3 (x1 Input, x1 Output)
Reference Video: BNCx2 (up to x2 Input)
Digital Audio Input: BNCx2 AES/EBU (x1)
Digital Audio Output: BNCx3 AES/EBU (x2, 1/2 and 3/4 Channel)
Analog Audio Input: XLR 3-Pin (x2, 1/2 and 3/4 Channel)
Analog Audio Output: XLR 3-Pin (x2, 1/2 and 3/4 Channel)
Time Code: XLR 3-Pin (x1 Input, x1 Output)
i.LINK (HDV 1080i): FireWire, 6-Pin (x1 Input)
Composite Video: BNCx3 (x1 Output)
Monitor L/R: XLR 3-Pin, Male (x1 Output)
Headphones: JM-60 Stereo Jack
Remote: D-Sub 9-Pin (x1 Input, x1 Output)
RS-232C: D-Sub 9-Pin
Remote2: Parallel D-Sub-50 (x1 Input/Output)
Video Control: D-Sub 9-Pin Memory Reader: Memory Stick
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption 150W
170W with Optional Cards
Operating Temperature 40-104°F (5-40°C)
Dimensions (WxHxD) 16.9 x 6.9 x 21.5" (42.7 x 17.4 x 54.4 cm)
Weight 48.5 lb (22 kg)
Packaging Info
Package Weight 56 lb
Box Dimensions (LxWxH) 27 x 21 x 14"

-
+





Inquire about Sony HDW-D1800 CineAlta HDCAM Studio Editing Recorder with Multi-Format Compatibility and Legacy Playback



The Sony HDW-D1800 is a CineAlta HDCAM studio editing recorder featuring a wide variety of advanced features, making the adoption of and integration of professional-grade high definition acquisition a more seamless transition than ever before. The HDCAM format has been widely accepted by top professionals as the HD format of choice and shows Sony's commitment to providing the highest quality solutions for the most demanding applications. The deck has the ability to fully integrate HDV content, as well as providing legacy playback for both Digital Betacam and MPEG IMX standard definition formats. Moreover, the HDW-D1800 can up and down-convert footage to HDCAM, making it ideal for mastering for broadcast or ingesting into an HDCAM post-production workflow.



Sony HDW-D1800

Signal System 1080: 59.94i 29.97PsF, 50i, 25PsF, 24PsF, 23.98PsF
Tape Format HDCAM
Playback: Digital Betacam, MPEG IMX
Tape Speed HDCAM
59.94i, 29.97PsF: 96.7 mm/s
50i, 25PsF: 80.6 mm/s
24PsF, 23.98PsF: 77.4 mm/s

Digital BETACAM
96.7 mm/s

MPEG IMX
525/59.94i: 64.5 mm/s
625/50i 53.8 mm/s
Signal-to-Noise Ratio Analog Composite Output: 53 dB
Maximum Recording Time 59.94i, 29.97PsF: 124 min (BCT-124HDL Cassette)
50i, 25PsF: 149 min (BCT-124HDL Cassette)
24PsF, 23.98PsF: 155 min (BCT-124HDL Cassette)
59.94i, 29.97PsF: 40 min (BCT-40HD Cassette)
48 minutes (50i, 25PsF, with BCT-40HD Cassette)
50 minutes (24PsF, 23.98PsF, with BCT-40HD Cassette)
Audio Signal Format HDCAM
Frequency Response 20 Hz to 20 kHz, +0.5 dB/-1.0 dB (0 dB at 1 kHz)
Signal to Noise Ratio >45 dB
Input and Output Connectors HD-SDI: BNCx1 (x1 Input, x1 Output)
SD-SDI: BNCx3 (x1 Input, x1 Output)
Reference Video: BNCx2 (up to x2 Input)
Digital Audio Input: BNCx2 AES/EBU (x1)
Digital Audio Output: BNCx3 AES/EBU (x2, 1/2 and 3/4 Channel)
Analog Audio Input: XLR 3-Pin (x2, 1/2 and 3/4 Channel)
Analog Audio Output: XLR 3-Pin (x2, 1/2 and 3/4 Channel)
Time Code: XLR 3-Pin (x1 Input, x1 Output)
i.LINK (HDV 1080i): FireWire, 6-Pin (x1 Input)
Composite Video: BNCx3 (x1 Output)
Monitor L/R: XLR 3-Pin, Male (x1 Output)
Headphones: JM-60 Stereo Jack
Remote: D-Sub 9-Pin (x1 Input, x1 Output)
RS-232C: D-Sub 9-Pin
Remote2: Parallel D-Sub-50 (x1 Input/Output)
Video Control: D-Sub 9-Pin Memory Reader: Memory Stick
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption 150W
170W with Optional Cards
Operating Temperature 40-104°F (5-40°C)
Dimensions (WxHxD) 16.9 x 6.9 x 21.5" (42.7 x 17.4 x 54.4 cm)
Weight 48.5 lb (22 kg)
Packaging Info
Package Weight 56 lb
Box Dimensions (LxWxH) 27 x 21 x 14"
