Large Full HD 1920 x 1080 7-inch LCD panel ideal for 4K live production in operation with Sony studio cameras, XDCAM camcorders, F65 and PMW-F55

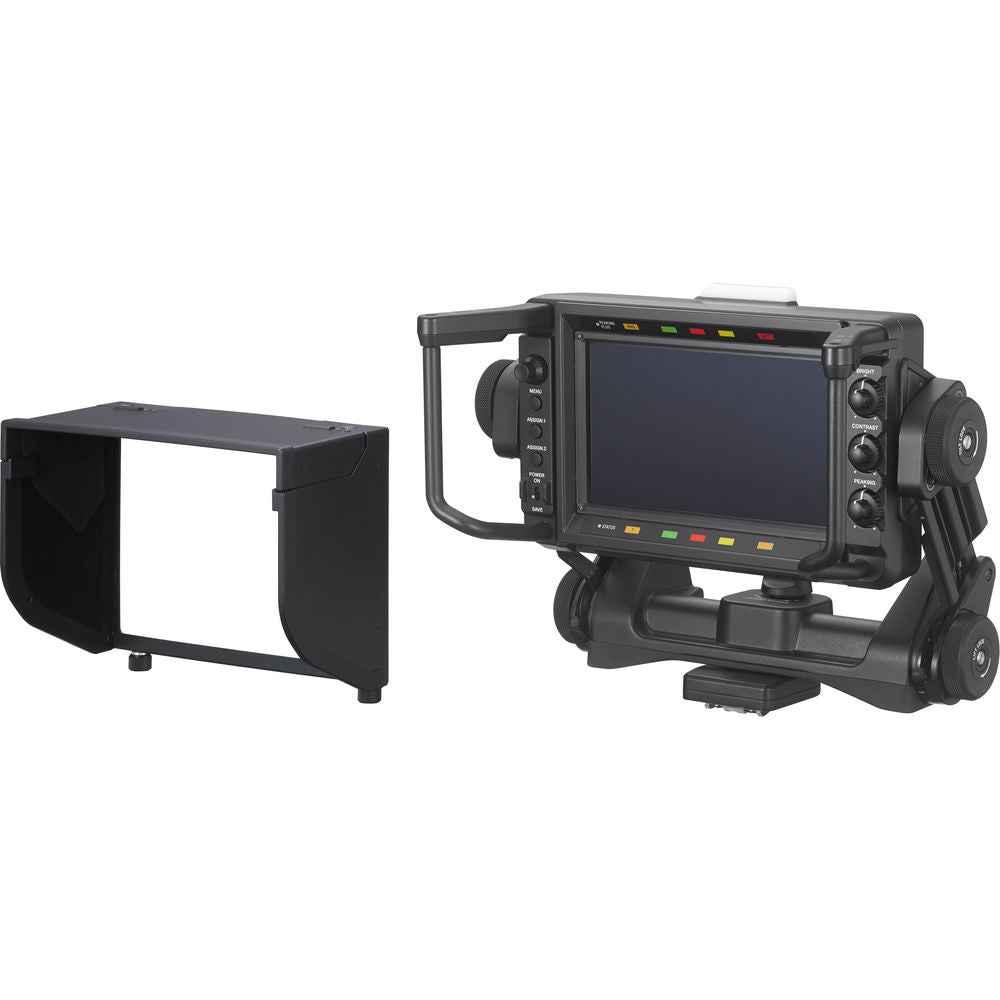

The HDVF-L770 Full HD 7-inch LCD viewfinder is usable with the whole range of Sony studio cameras, XDCAM camcorders (with optional VF cable and V-shoe adaptor), F65 and PMW series camcorders such as the PMW-F55 and PMW-F5 in 4K and HD live production configurations. The 1920 x 1080 LCD panel allows for more precise focusing, with a very high 1000:1 contrast ratio and WFM (waveform monitor) function for very precise exposure control. The viewfinder has the same chassis mechanism as the HDVF-EL75 OLED Viewfinder with a large handle, lifter and bezel, and lift/tilt lock lever for adjusting friction. A 3G-SDI input connector adds flexibility for viewing camera or external sources, while six assignable switches on the handle allow for bespoke setups. The viewfinder also has an attachable hood with a flip-up mechanism.
Full HD 1920 x 1080 7-inch LCD panel ideal for 4K and HD live production
Easier and more precise focusing, especially in 4K applications in operation with F65 and PMW-F55 cameras.
1000: 1 high contrast ratio
Better picture viewing in outside broadcast live applications.
WFM (waveform monitor) function
All-in-one picture control monitoring for very precise exposure control.
External 3G-SDI input connector
Allows you to check external video sources in the field, including third party equipment.
Adjustable mechanism and large handle
Lifter, large handle and bezel with lock lever for adjusting friction.
|Display Area (H x V)||6.1 x 3.4" (15.6 x 8.8 cm)|
|Brightness||300 cd/m2 (typical)|
|Resolution||1920 x 1080|
|Frame Rate||1080/59.94P 59.94, 1080/50P 50, 1080/29.97P 29.97, 1080/25P 25, 1080/24P 24, 1080/23.98P 23.98, 1080/59.94i 29.97, 1080/50i 25, 1080/29.97PsF 29.97, 1080/25PsF 25, 1080/24PsF 24, 1080/23.98PsF, 23.98, 720/59.94P 59.94, 720/50P 50|

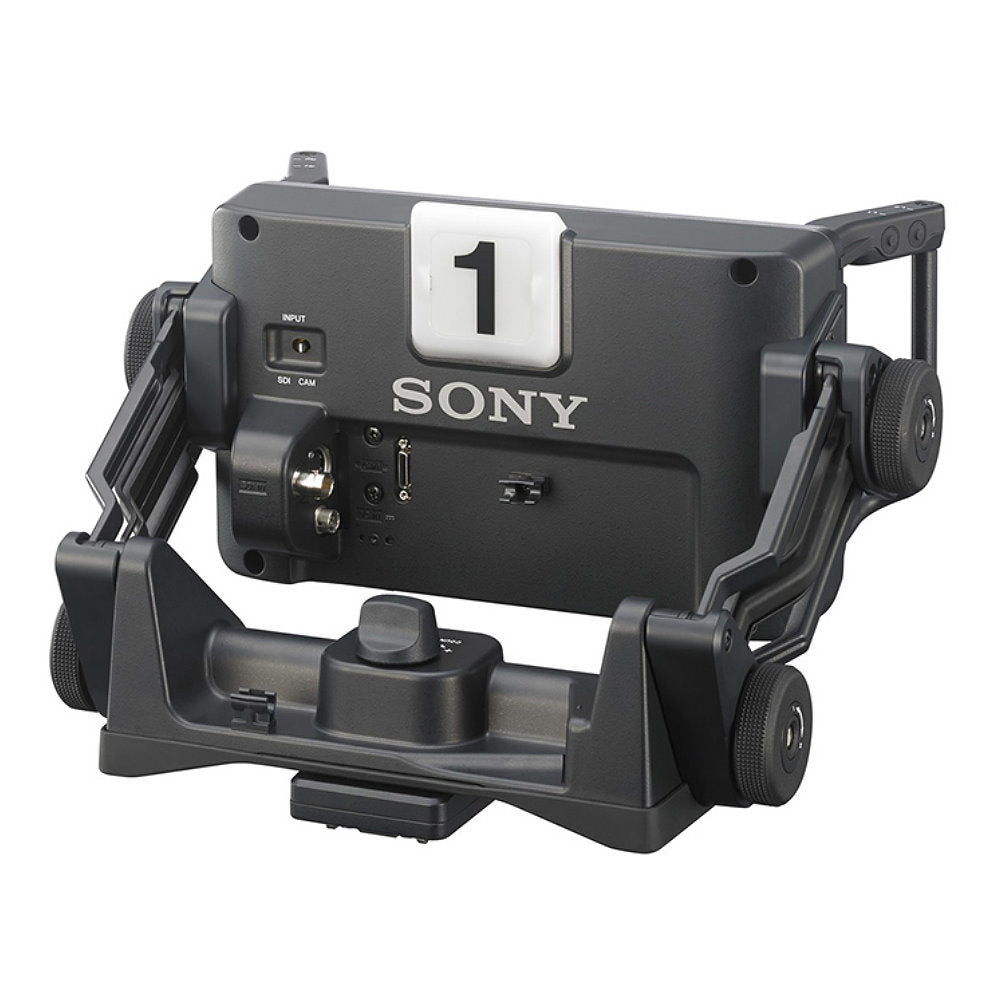

|Input Connectors||1 x 20-pin round type, CAM
1 x 26-pin rectangular type, CAM
1 x BNC, SDI
1 x 4-pin, DC power
|Operating Temperature||32 to 113°F (0 to 45°C)|
|Storage Temperature||-4 to 140°F (-20 to 60°C)|
|Power Supply||10.5 - 17.0 VDC|
|Power Consumption||13 W|
|Dimensions||12.1 x 10.0 x 6.6" (30.9 x 25.3 x 16.7 cm)|
|Weight||6.6 lb (3 kg)|
|Package Weight||9.265 lb|
|Box Dimensions (LxWxH)||15.3 x 13.5 x 10.6"|
