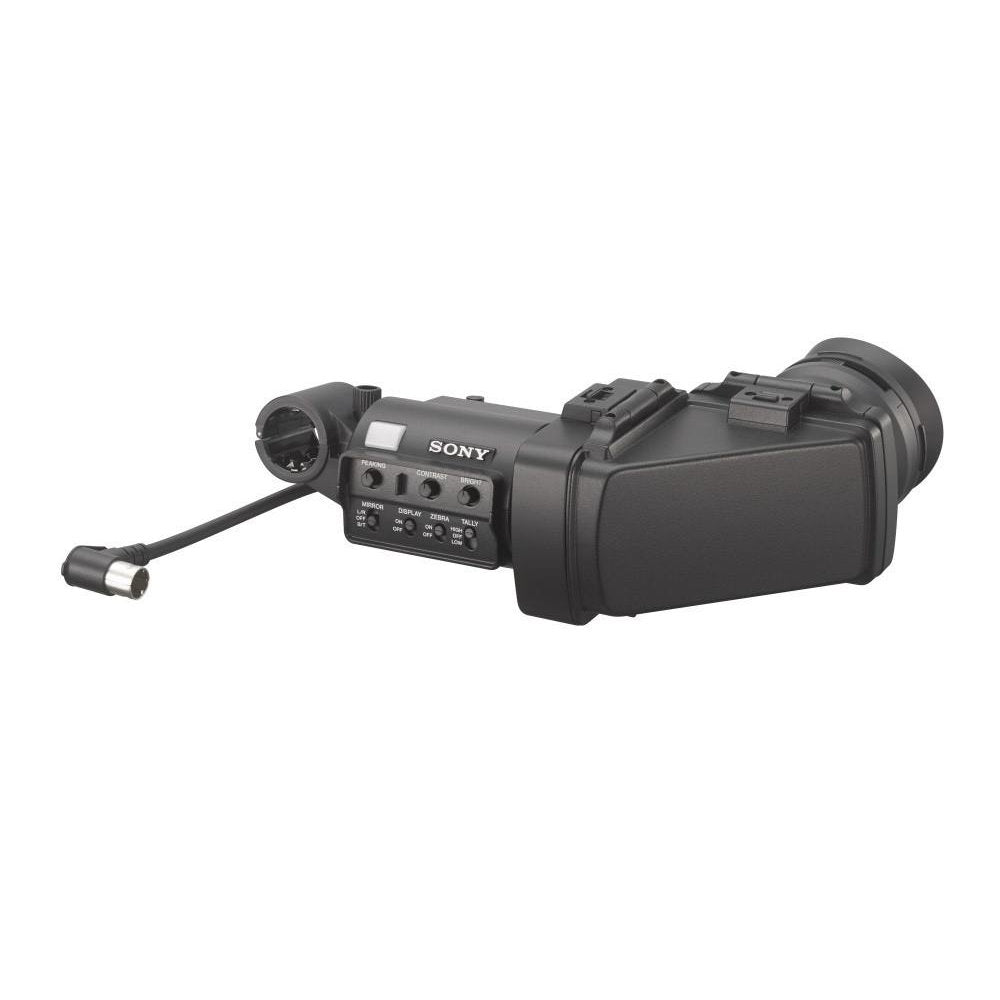

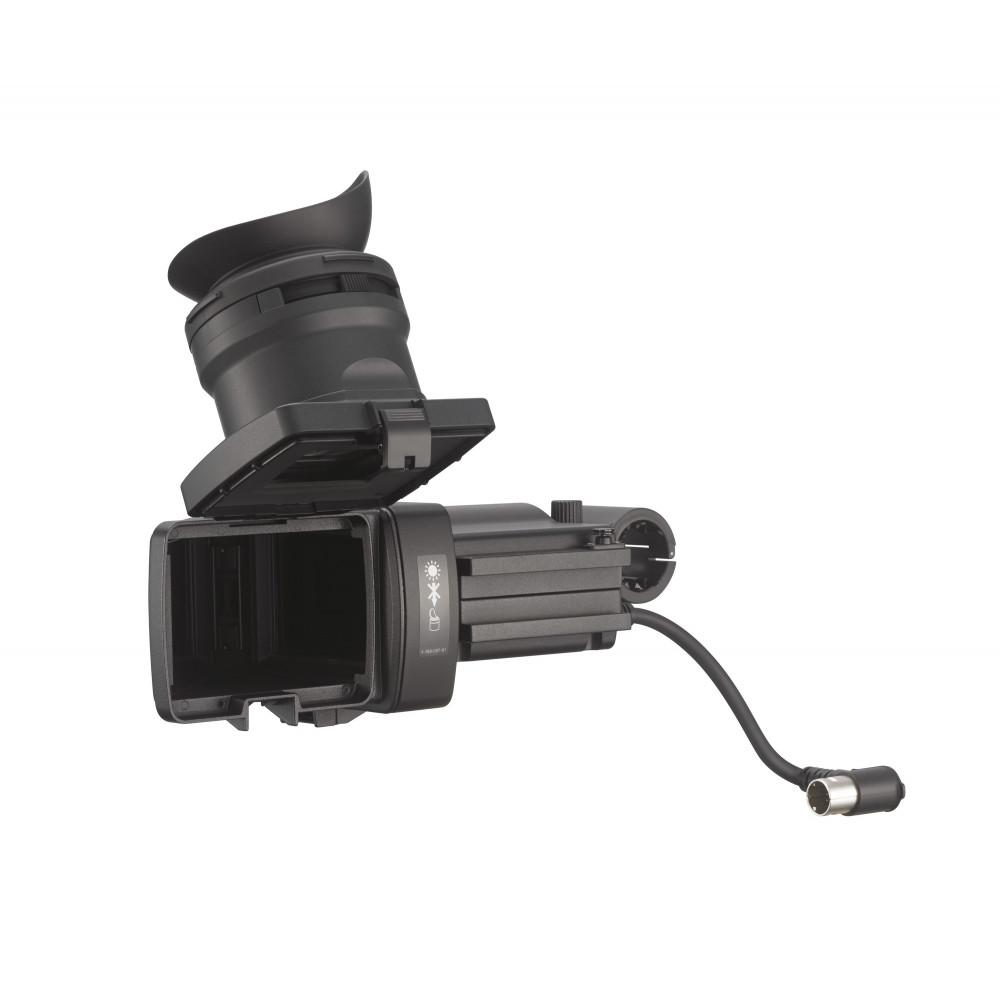

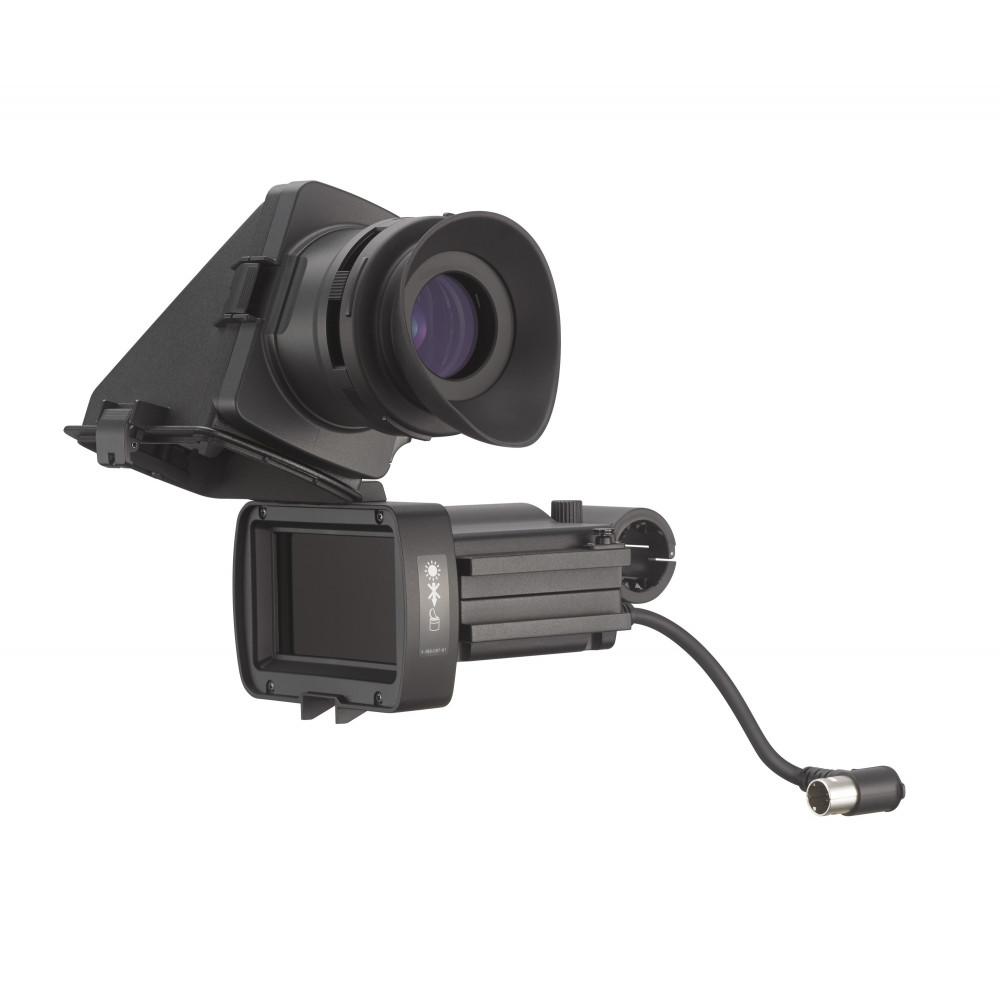

3.5" Colour LCD HD Viewfinder for cameras with a round-type 20-pin viewfinder interface. The applicable cameras output the higher resolution QHD signal to this viewfinder. Camera operators can see the LCD, directly, because the optical loupe and the elbow parts can be flipped-up.
3.5" Colour LCD QHD Viewfinder
Uses round-type 20-pin viewfinder interface
Switchable display mode
In addition to the normal display mode, this viewfinder can switch over to another display mode that shows the reduced-size screen with tally display, surrounding on it.
You can see the whole screen and tally easily when your eye is away from the eye-cup.
General
Power supply
10.5 to 17.0 V DC (supplied by the camera)
Power consumption
3.3 W
Operating temperature
-5℃ - 45℃
Storage temperature
–20C to +60C (–4 F to +140 F)
Mass
700 g
External dimensions
201mm (8 in) x 255mm (10 1/8 in) x 60mm (2 3/8 in) 89mm (3 5/8 in)
3.5-inch colour TFT transflective LCD Image display area dimensions
76.8 × 43.2 mm (31/8 × 13/4 inches) (H/V, 16:9 aspect ratio)
Performance
Brightness
200 cd/m2 (typical) (when eyepiece is attached)
Resolution
500 lines or more
Colour temperature
6500 K (typical)
Connector
Connector
Round-type 20-pin connector
Supplied accessories
Supplied accessories
Operation manual (1)
Optional accessories
Optional accessories
Viewfinder Rotation Assembly : BKW-401
Compatible products
Compatible products
HXC-FB75KC, HXC-FB75H, HDC-1700, HDC-2400, HDC-2500, HDC-2570, HDC-3300R, HDC-4300, HSC-100R, HSC-100RF, HSC-300R, HSC-300RF, PDW-680, PDW-700, PDW-850, PDW-F800, PMW-500, PXW-X400, PXW-X500
