Stunning OLED image quality

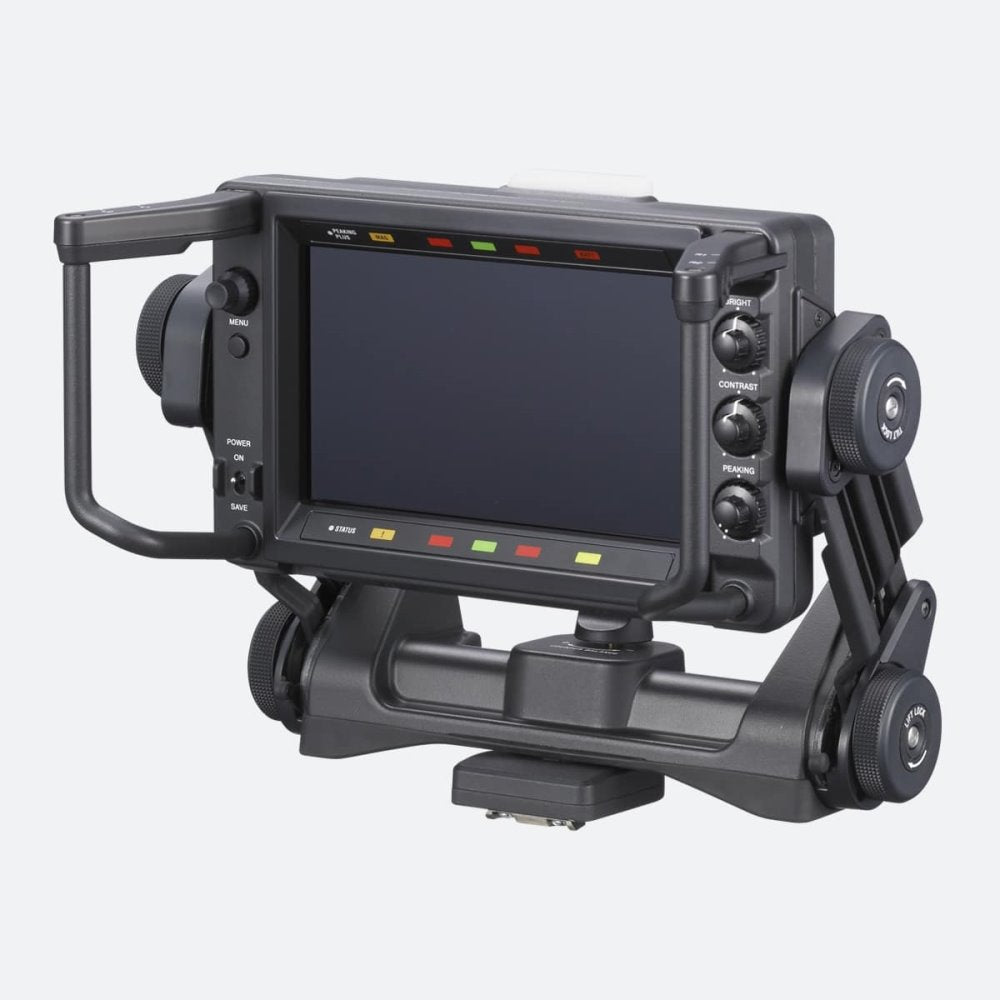

The 7.4-inch* HDVF-EL75 Viewfinder delivers strikingly high contrast, a wide dynamic range, and a fast response time thanks to the use of revolutionary Organic Light Emitting Diode (OLED) display technology.
OLED panels help prevent light emission when reproducing dark shades, resulting in very deep blacks and a contrast ratio of more than 1,000,000:1. The lack of a backlight allows the device to control all phases of light emission from zero to peak brightness. The innovative technology delivers exceptional colour expression and detail without wasting power, so it is also an exceptional energy-saver.
High Definition acquisition requires extremely precise focusing, so OLED image quality delivers significant benefits by allowing the operator to accurately see contrast and colour levels when framing a shot. A wide viewing angle aids operator comfort while an extremely fast response time is particularly useful for applications such as sports coverage.
In addition, the HDVF-EL75 is packed with a wide range of sophisticated, user-friendly features such as Focus Assist, four assignable switches and a position-adjustment mechanism with unprecedented flexibility.
General
Power requirements
10.5 V to 17.0 V DC (supplied by the camera)
Power consumption
19.5 W
Operating temperature
–20°C to +45°C (–4°F to +113°F)
Mass
3.5 kg (7 lb 11 oz)
Display Unit
Panel
7.4-inch (188 mm) colour OLED panel
Effective picture size (H/V, 16:9 aspect ratio)
164 × 92 mm (6 1/2 × 3 5/8 inches)
Effective pixels
960 (H) × 540 (V) × 3 (RGB)
Performance
Brightness (peak brightness, typical)
350 cd/m2
Resolution
500 or more lines
Colour temperature
D65
Supported Formats
1080
23.98PsF, 24PsF, 25PsF, 29.97PsF, 30PsF, 50i, 59.94i, 60i
720
50p, 59.74p, 60p
Connectors
Camera connector
Round 20-pin (x1)
Supplied Accessories
Indoor hood
Number plate
V-wedge shoe attachment
Hexagonal wrench
4 socket head cap screws
Cleaning cloth
Connecting cable
Operation manual
