Bright high-end OLED viewfinder for 4K/HD system cameras and camcorders, with additional sub-LCD display

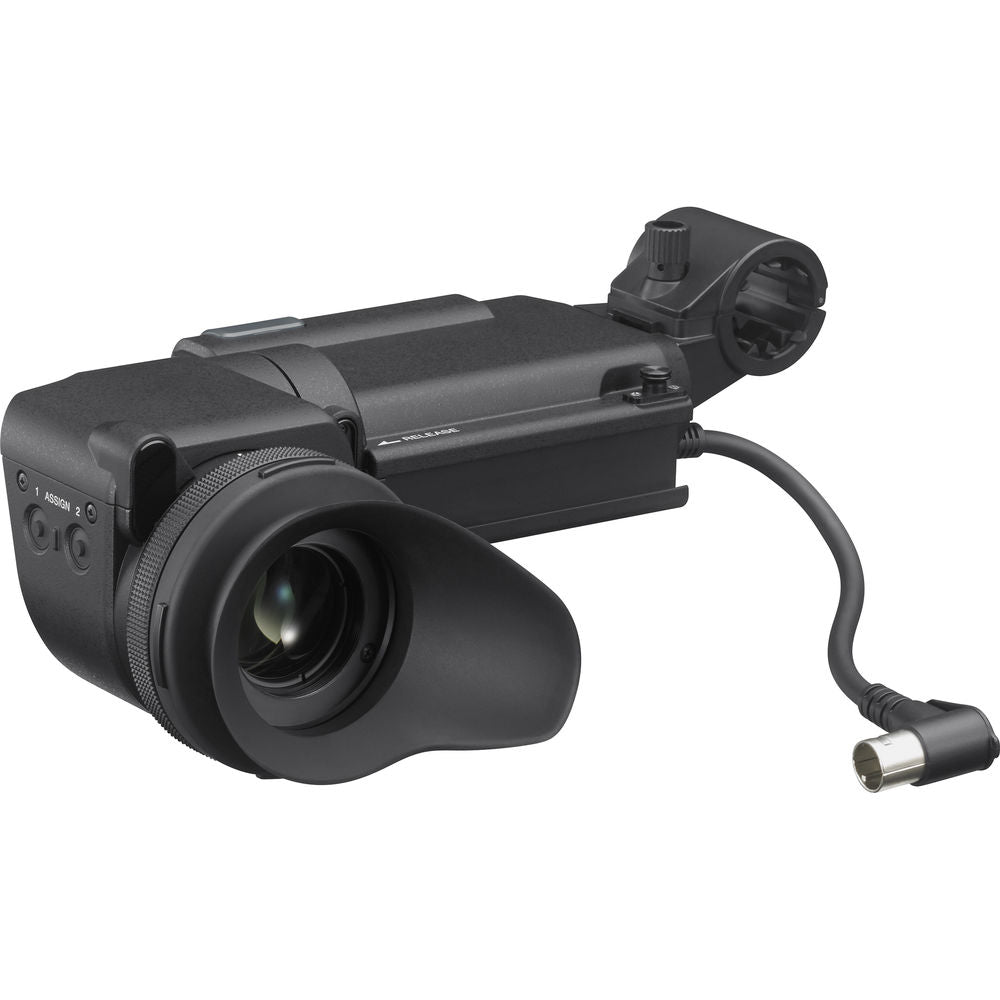

The HDVF-EL20 is a 0.7-inch (viewable area, measured diagonally) full HD OLED viewfinder, which enables quick pixel response for tracking and focusing on moving objects. It delivers outstanding high contrast and a wide dynamic range thanks to the use of revolutionary Organic Light Emitting Diode (OLED) display technology.
With its specially developed optical loupe, a high eye-point is possible. It allows operators to see a wider area of the picture if they stand back from the eye piece. The image displayed on the viewfinder can be downscaled by menu or assignable button to avoid vignetting.
The HDVF-EL20 viewfinder is compatible with a wide variety of cameras such as the F65 Sony motion picture cameras, 4K/HD system cameras and shoulder-type HD camcorders supporting the 20pin round HDVF interface.
0.7-inch 1920 x 1080 OLED panel
OLED technology – a self-emitting technology – guarantees highest contrast ratio. No smear or blur, reproduces motion with high fidelity. Easy to focus 4K image.
Works with Sony 4K/HD cameras and camcorders
Compatible with Sony F65 digital motion picture camera, 4K/HD system cameras and shoulder-type HD camcorders supporting the HDVF 20pin round analog viewfinder interface.
| Display Type |
0.7" (1.8 cm) Color OLED |
| Display Area (HxV) |
0.6 x 0.4" (1.5 x 1.0 cm)
16:9 Aspect ratio |
| Diopter Range |
For Loupe: -4.0 to +2.0 m-1
|
| Brightness |
200 cd/m2 (Typical) |
| Effective Pixels |
1920 (H) x 1080 (V) x 3 (RGB) |
| Color Temperature |
D65 |
| Digital Scanning Frequency (H / V) |
1080 Scanning Lines:
23.98PsF: 26.97 kHz / 47.95 Hz
24PsF: 27.00 kHz / 48 Hz
25PsF: 28.13 kHz / 50 Hz
29.97PsF: 33.72 kHz / 59.94 Hz
50i: 28.13 kHz / 50 Hz
59.94i: 33.72 kHz / 59.94 Hz
720 Scanning Lines:
50P: 36.00 kHz / 50 Hz
59.94P: 44.96 kHz / 59.94 Hz |
| Input Signals |
Y: 1.0 Vpp, Synchronous, 75 Ohm terminated
Pb, Pr: 0.7 Vpp, Asynchronous, 75 Ohm terminated |
| Camera Connector |
Round type 20-pin |
| Power Supply |
10.5 to 17.0 VDC (Supplied by the camera) |
| Power Consumption |
6.9 W |
| Temperature |
Storage: -4 to 140°F (-20 to 60°C)
Operating: -4 to 113°F (-20 to 45°C) |
| Folded Dimensions |
8.3 x 8.4 x 3.3" (20.7 x 21.2 x 8.0 cm) |
| Weight |
1.7 lb (0.8 kg) |
| Package Weight |
3.15 lb |
| Box Dimensions (LxWxH) |
12.9 x 10.6 x 6.2" |
