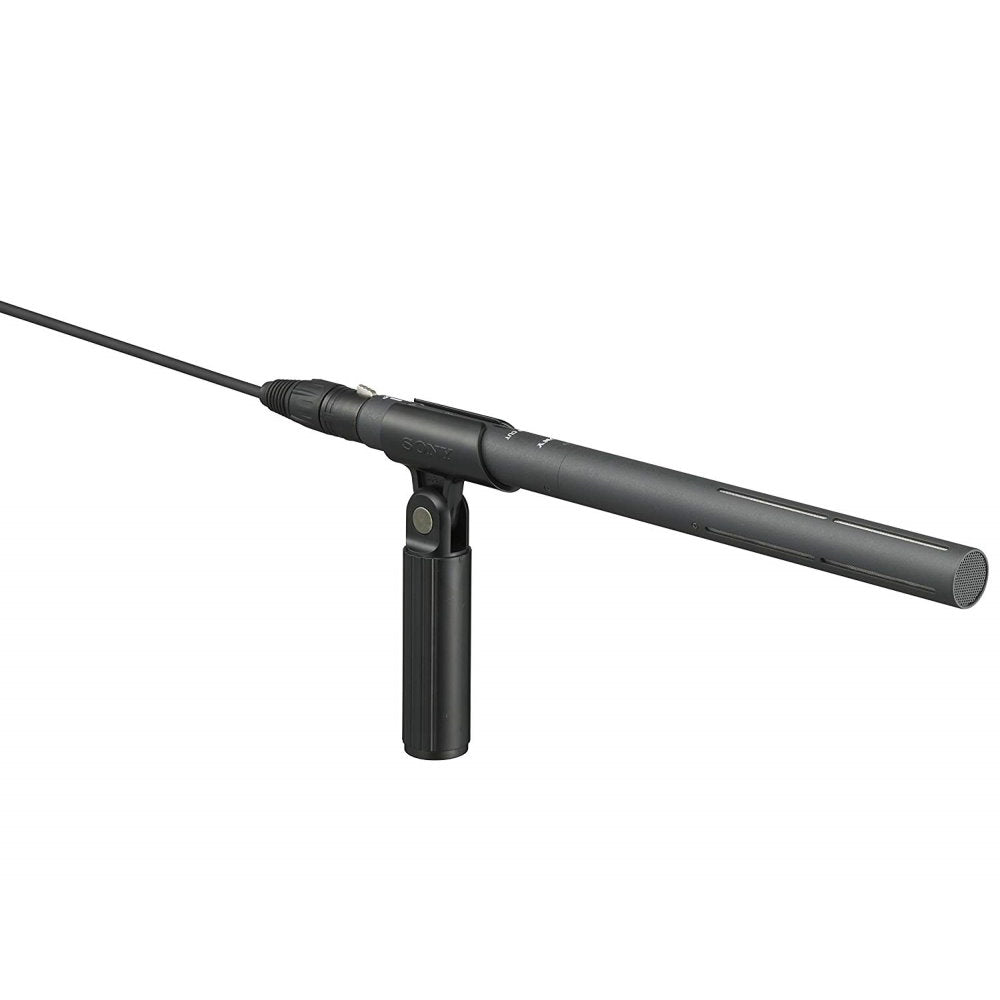

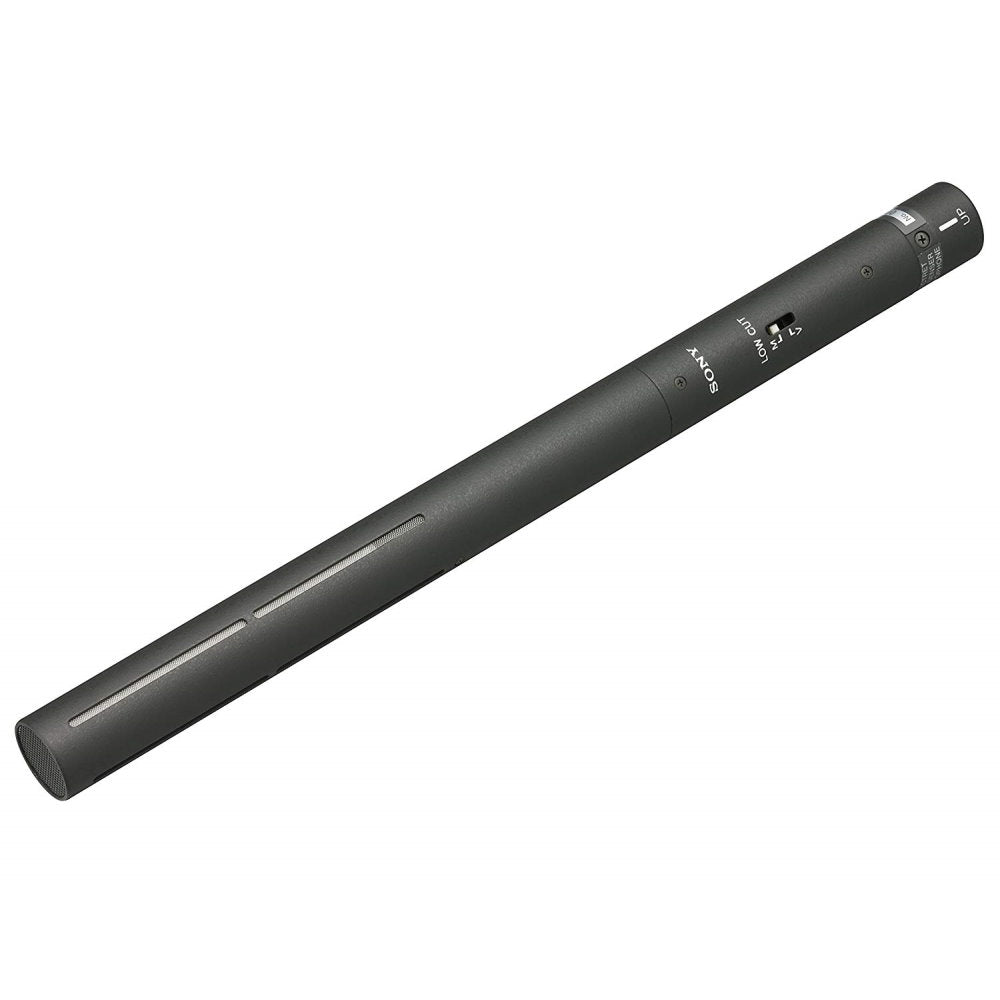

The Sony ECM-674/9X Shotgun Microphone provides professional level signal reproduction while remaining cost effective. The ECM-674/9X's compact size, audio character and sensitivity result in the level of performance suitable for use with professional and semi-professional video cameras.
The ECM-674/9X features a supercardioid polar pattern for excellent directivity and minimal noise at the off-axis sections of the capsule. The result is a detailed, audible signal while used in noisy environments. The microphone provides a wide, flat frequency response which results in smooth, accurate signal reproduction with crisp detail and no added coloration. The ECM-674/9X is powered with an internal AA-size battery or external 48-volt phantom power.
The ECM-674/9X's size and sound quality make it an excellent choice for event video shoots, film, documentary shooting, court room depositions, etc.
Audio Section
Capsule Type
Mono Electret Condenser
Frequency Response
40 Hz to 20 kHz
Directivity
Uni-directional (super-cardioid)
Sensitivity *[1]
-36 dB ±3 dB
Output Impedance *[2]
220Ω±20%, Balanced
Dynamic Range
Phantom: 107 dB or more
Battery: 98 dB or more
Signal-to-Noise Ratio *[3]
77 dB or more
Inherent Noise *[4]
17 dB SPL or less
Induction Noise From External Magnetic Field *[5]
0 dB SPL or less
Wind Noise *[6]
50 dB SPL (without windscreen)
45 dB SPL or less (with windscreen)
Maximum Input Sound Pressure Level *[7]
Phantom: 124 dB SPL
Battery: 115 dB SPL
General Section
Connector
XLR-3-12C (male)
Mic Cable
XLR-3 to XLR-3
500 mm
19.6 inches
Power Requirements
External: DC 40 V to 52 V
Battery: 1.5 V
Dimensions *[8]
φ20 x 268 mm
φ13/16 x 10 5/8 inches
Mass
Approx. 7.3 oz with battery
Approx. 6.5 oz without battery
Approx. 208 g with battery
Approx. 185 g without battery
Supplied Accessories
Windscreen (1)
Stand adaptor (2)
Short LR cable (for camcorder use) (1)
Operating instructions (1)
Mic spacer (2)
Mic holder (1)
