By Sony

Sony ECM-673/9X Shotgun Microphone

Inquire about Sony ECM-673/9X Shotgun Microphone

Availability:
SKU: ECM-673/9X
Collections:

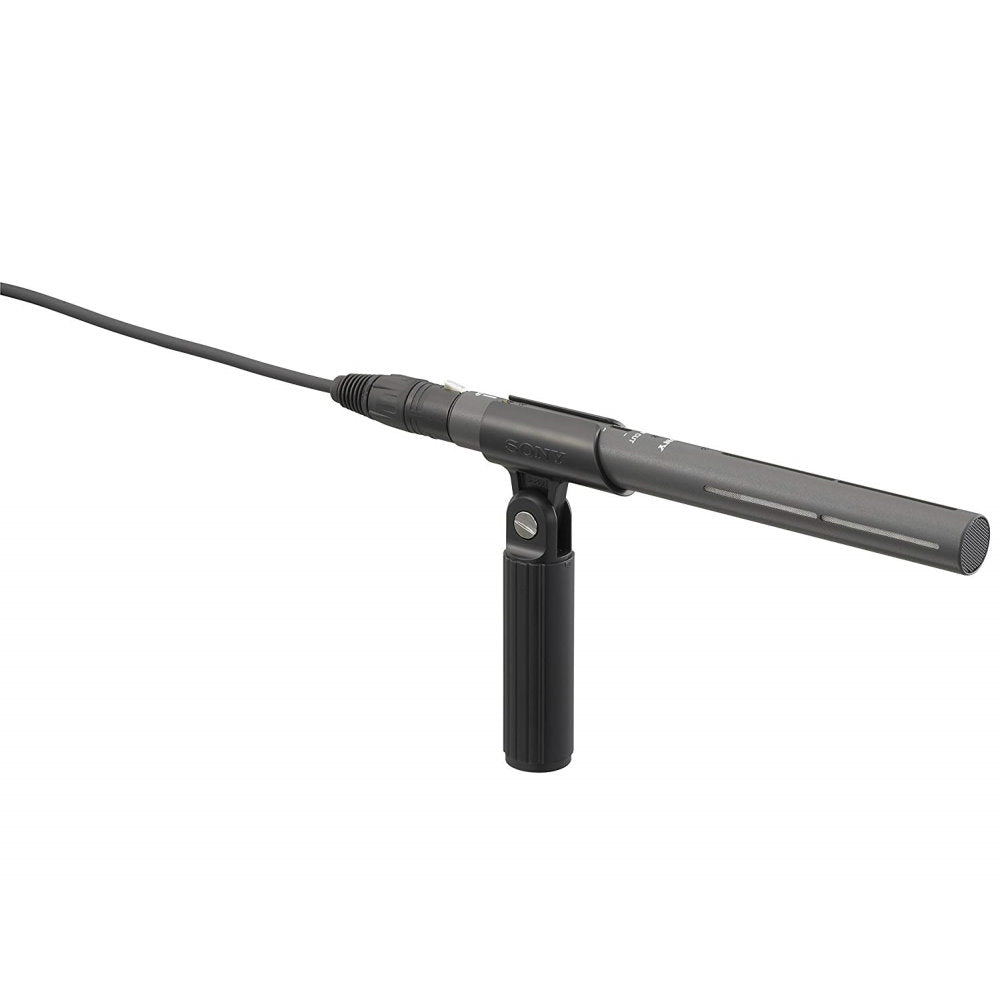

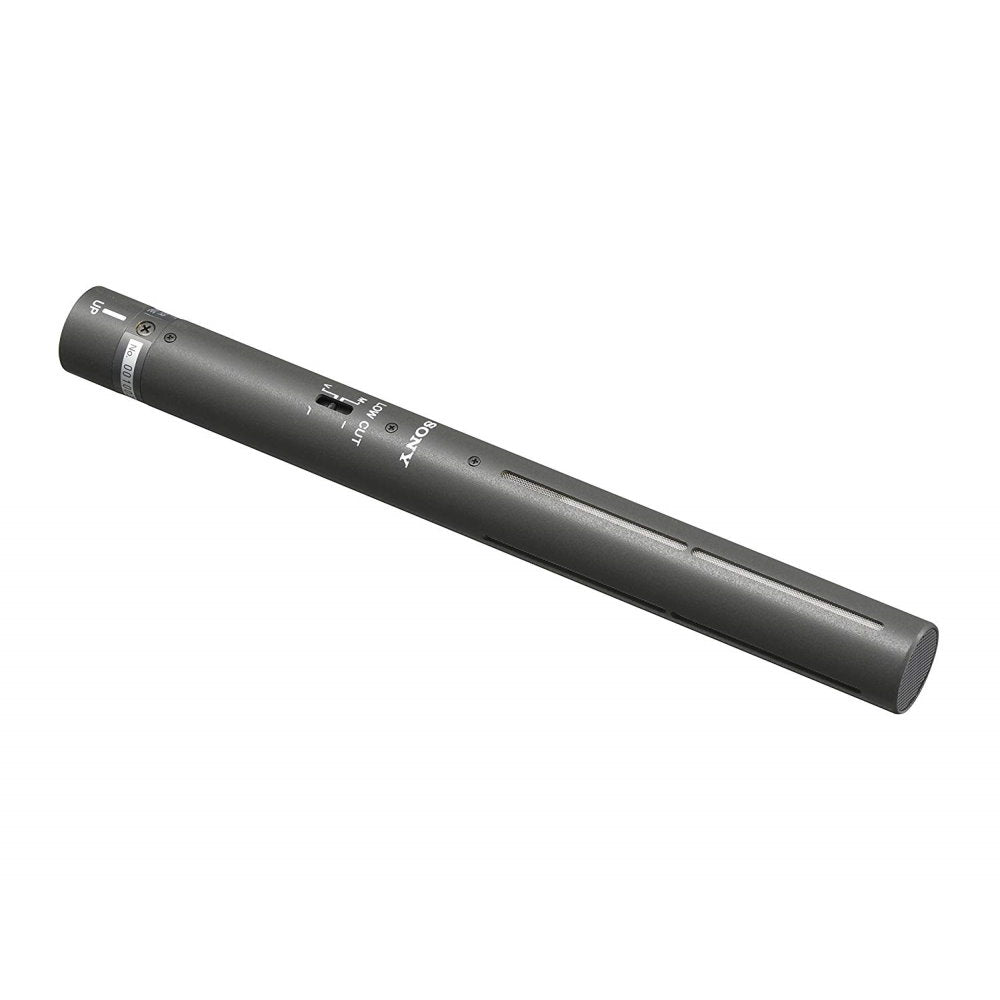

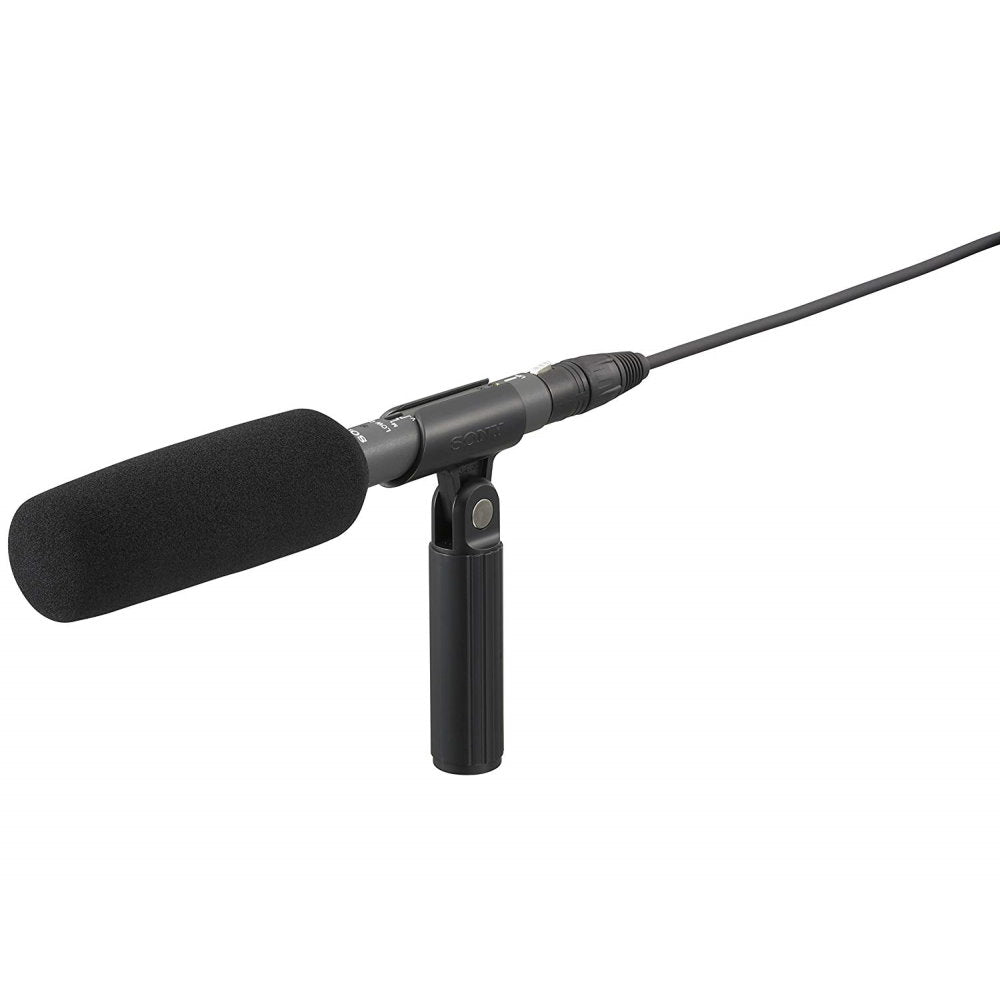

The Sony ECM-673/9X is a low cost, electret condenser shotgun microphone designed for maximum frontal pick up while minimizing off-axis (side) signal and noise. The wide frequency response and excellent sensitivity deliver superb sound for interviews, field audio and more. The ECM-673/9X features a low-cut filter switch for minimizing low frequency response and proximity effect. The ECM-673/9X is light weight and ideal for camera, boom and stand mounting.

  •     The focused pick up pattern provides maximum pickup while rejecting off-axis noise
  •     The highly sensitive capsule results in great detail and pristine audio quality
  •     The wide frequency response reproduces audio in great detail
  •     Shotgun Microphone, Phantom Powered



Audio Section
Capsule Type
Mono Electret Condenser
Frequency Response
40 Hz to 20 kHz
Directivity
Uni-directional (super-cardioid)
Sensitivity *[1]
-36 dB ±3 dB
Output Impedance *[2]
220Ω±20%, Balanced
Dynamic Range
107 dB or more
Signal-to-Noise Ratio *[3]
77 dB or more
Inherent Noise *[4]
17 dB SPL or less
Induction Noise From External Magnetic Field *[5]
0 dB SPL or less
Wind Noise *[6]
50 dB SPL (without windscreen)
45 dB SPL or less (with windscreen)
Maximum Input Sound Pressure Level *[7]
124 dB SPL
General Section
Connector
XLR-3-12C (male)
Mic Cable
XLR-3 to XLR-3
500 mm
19.6 inches
Power Requirements
External, DC 40 V to 52 V
Dimensions *[8]
φ20 x 200 mm
φ13/16 x 7 7/8 inches
Mass
Approx. 4.8 oz
Approx. 135 g
Supplied Accessories
Windscreen (1)
Stand adaptor (2)
Short LR cable (for camcorder use) (1)
Operating instructions (1)
Mic spacer (2)
Mic holder (1)
