By Panasonic

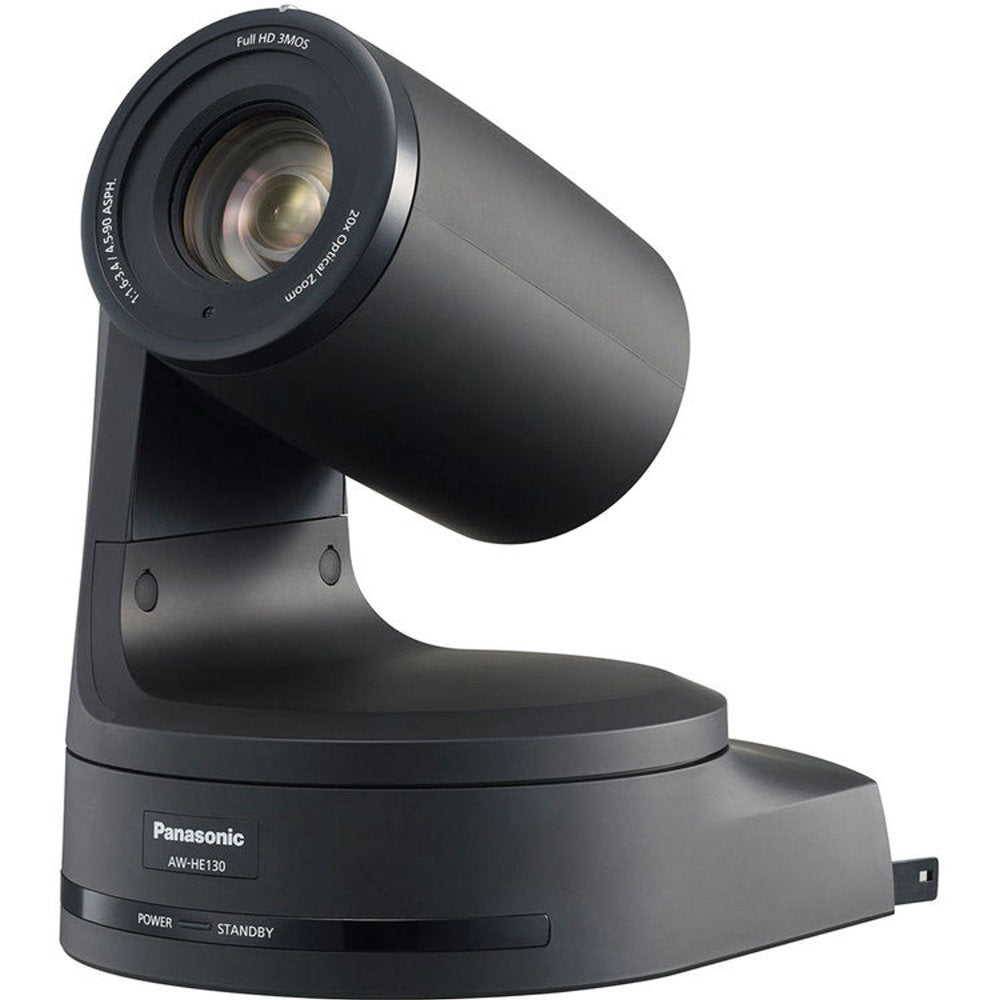

Panasonic AW-HE130 HD Integrated PTZ Camera
Regular price
$8,520.00
Regular price
Sale price
$8,520.00
Unit price
per
Couldn't load pickup availability
Regular price
$8,520.00
Regular price
Sale price
$8,520.00
Introducing a new PTZ camera capable Production Quality Full HD video output up to 1080/60p via IP transmission, in addition to 3G-SDI and HDMI. Equipped with three newly developed 1/2.86 MOS sensors for high sensitivity, a superior S/N ratio and high resolution. The AW-HE130W/K also supports PoE+*, so the camera only needs one LAN cable for its power supply, control and video output. Presenting the new standard in versatile, high-quality remote production with 3G-SDI, IP-Streaming, and POE+.
Key features
- Newly developed 1/2.86-type three MOS sensors
- 1.4x Extender Zoom
- 1,4x Extender Zoom
- PoE+ for Power, Streaming & Control via a Single Cable
- PoE+ support & one cable operation (power supply, control & video output)
| Dimensions (W x H x D) | 180 mm x 228 mm x 234 mm (7-3/32 inches x 9 inches x 9-3/16 inches) (excluding protrusions, cable cover, direct ceiling mount bracket) |
| General | - |
| Storage Temperature | –20 °C to 50 °C (–4 °F to 122 °F) |
| Power Requirements | DC 12 V (AC adaptor supplied) DC 42 - 57 V (PoE+ power supply) 1.8 A (AC adaptor supplied) 0.6 A (PoE+ power supply) |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |

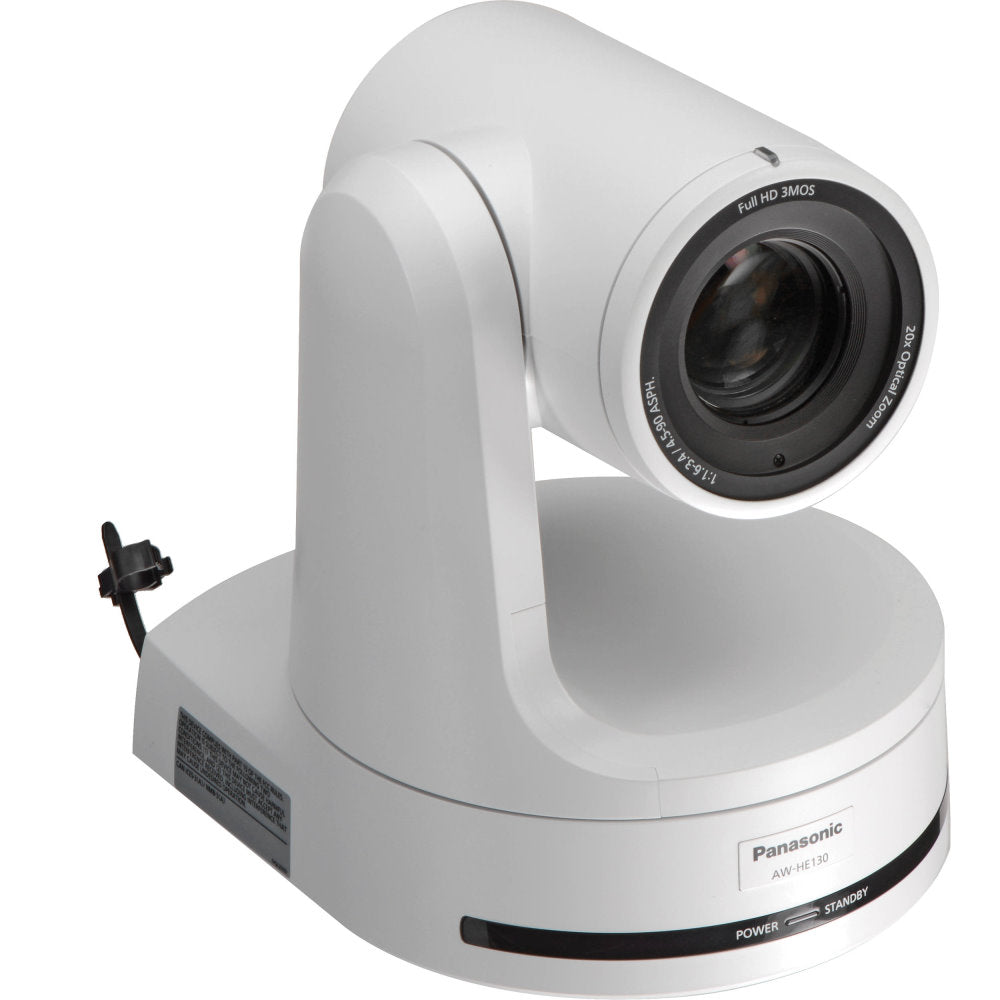

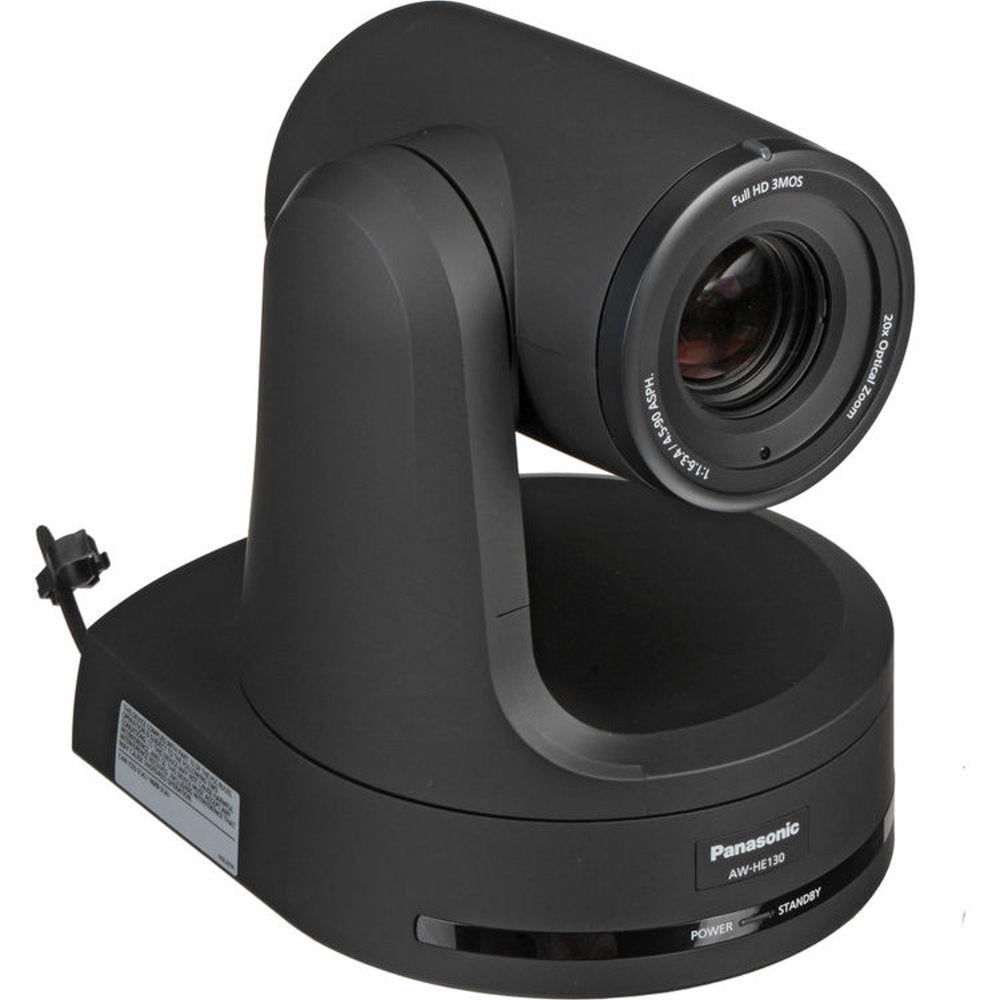

| Finish | AW‑HE130WP/AW-HE130WE: Pearl white AW‑HE130KP/AW-HE130KE: Metallic black |
| Allowable Humidity Ranges | 20 % to 90 % (no condensation) |
| Mass | Approx. 3.1 kg (6.83 lb) [Including mount bracket] |
| Controller Supported*1 | AW-RP120G, AW‑RP50, AK-HRP200G |
| Lens | Motorized 20 zoom, F1.6 to F3.4 (f=4.5 mm to 90 mm; 35 mm equivalent: 32.13 mm to 642.5 mm) |
| Minimum Illumination | 2 lx (50 IRE, F1.6, 36 dB) |
| Synchro Scan | 59.94 Hz: 60.15 Hz to 642.21 Hz 50 Hz: 50.15 Hz to 535.71 Hz |
| Horizontal Resolution | 1000 TV lines Typ (Center area) |
| Gain Selection | Auto, 0 dB to 36 dB |
| White Balance | AWB A, AWB B, ATW, 3200K, 5600K, VAR (2000K to 15000K) |
| Color Separation Optical System | 3MOS |
| Focus | Switching between auto and manual |
| Focus Distance | Entire zooming range: 800 mm (2.62 ft) Wide end: 400 mm (1.31 ft) |
| Gamma | HD, SD, FILMLIKE1, FILMLIKE2, FILMLIKE3 0.30 to 0.75 (Manual setting) |
| Scene File | Scene1, Scene2, Scene3, Scene4 |
| Electronic Shutter Speed | 59.94p/59.94i: 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 29.97p: 1/30, 1/60, 1/120, 1/250, 1/500,1/1000, 1/2000, 1/4000, 1/10000 23.98p: 1/24, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 50p/50i: 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 25p: 1/25, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 |
| Imaging Sensors | 1/2.86-type Full-HD 3MOS |
| Chroma Amount Variability | OFF, -99 % to 40 % |
| Camera Unit | - |
| Frame Mix*2 | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
| Standard Accessories | Mount bracket for installation surface (Hanging*6 / Desktop): 1, Drop-prevention wire: 1, Drop-prevention wire mounting screw (comes attached to the unit): 1, Bracket mounting screws (bind-head) M4 x 10 mm: 4, Main unit mounting screw (with flat washer,spring washer) M3 x 6 mm: 1, Cable cover: 1, Power cable: 1, AC adaptor: 1, CD-ROM |
| Input Connector | DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported • Locking to a color subcarrier is not possible with BBS. PoE+ (IEEE802.3at standard) |
| Panning Range | ±175° |
| Quietness | NC35 or less |
| Note | *1: It may be necessary to upgrade the version of the controller in order to support the unit. For details on upgrading, visit the support page on the following website. http://pro-av.panasonic.net/ *2: This cannot be configured when the format is 1080/29.97p, 1080/23.98p, 1080/29.97PsF 1080/23.98PsF, 1080/25p, or 1080/25PsF. *3: To ensure safety, the unit must be secured using the mount bracket supplied. *4: Use of an STP (shielded twisted pair) cable is recommended. *5: Depending on the pan or tilt position, the camera may be reflected in the image. *6: To ensure more safety, AW-HE130W/K can be secured by using the direct ceiling mount bracket (WV-Q105A). |

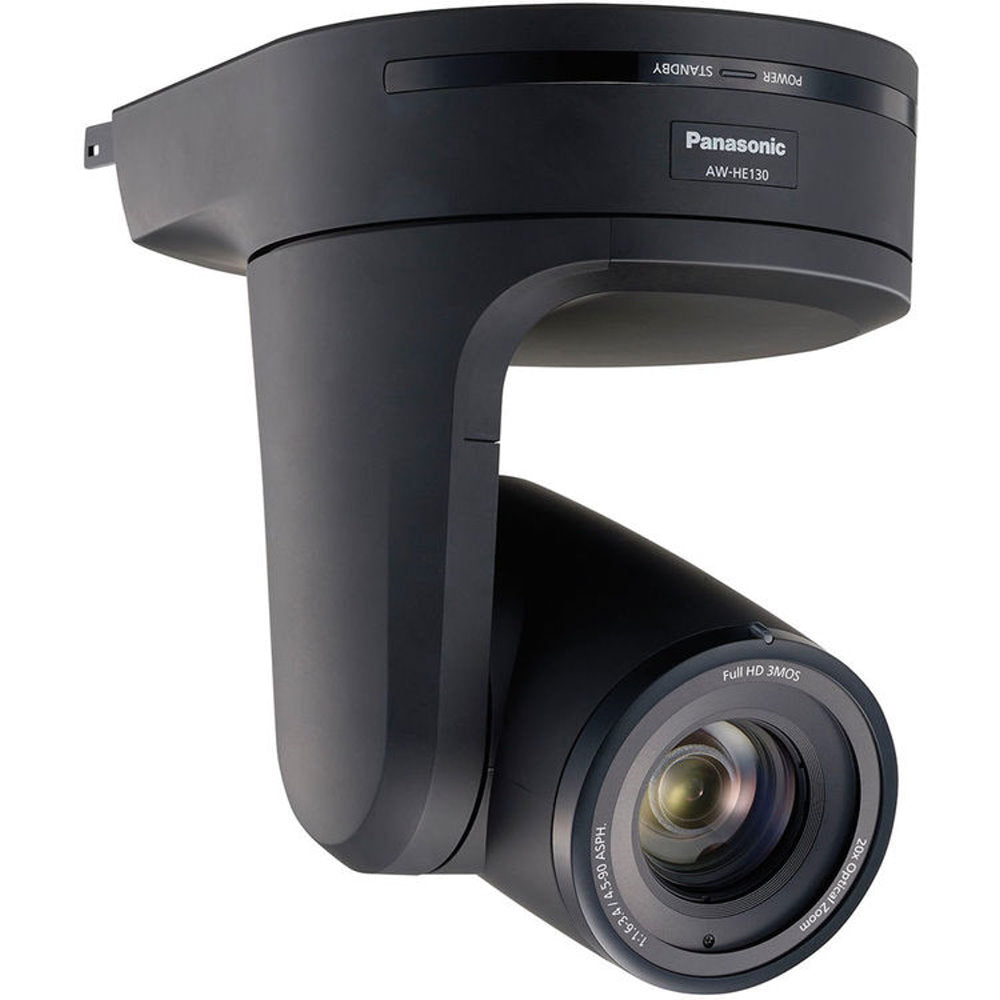

| Installation Method | Stand-alone (Desktop) or suspended (Hanging)*3 |
| Output | - |
| Input/Output | - |
| Pan-Tilt Head Unit | - |
| Camera/Pan-Tilt Head Control | IP connecting cable • When connecting through a PoE+ hub: LAN cable*4 (category 5e or above, straight cable), max. 100 m (328 ft) • When a PoE+ hub is not used: LAN cable*4 (category 5 or above, crossover cable) max.100 m (328 ft) RP connecting Cable LAN cable*4 (category 5 or above, straight cable), max. 1000 m (3280 ft) RS-422A, AW series protocol |
| Video Output | HDMI: HDMI connector • HDCP is not supported. • Viera Link is not supported. HD/SD-SDI OUT: SMPTE424/SMPTE292/SMPTE259 standards 75 Ω (BNC x 1) VIDEO OUT: NTSC/PAL 1.0 V [p-p]/75 Ω (BNC x 1) |

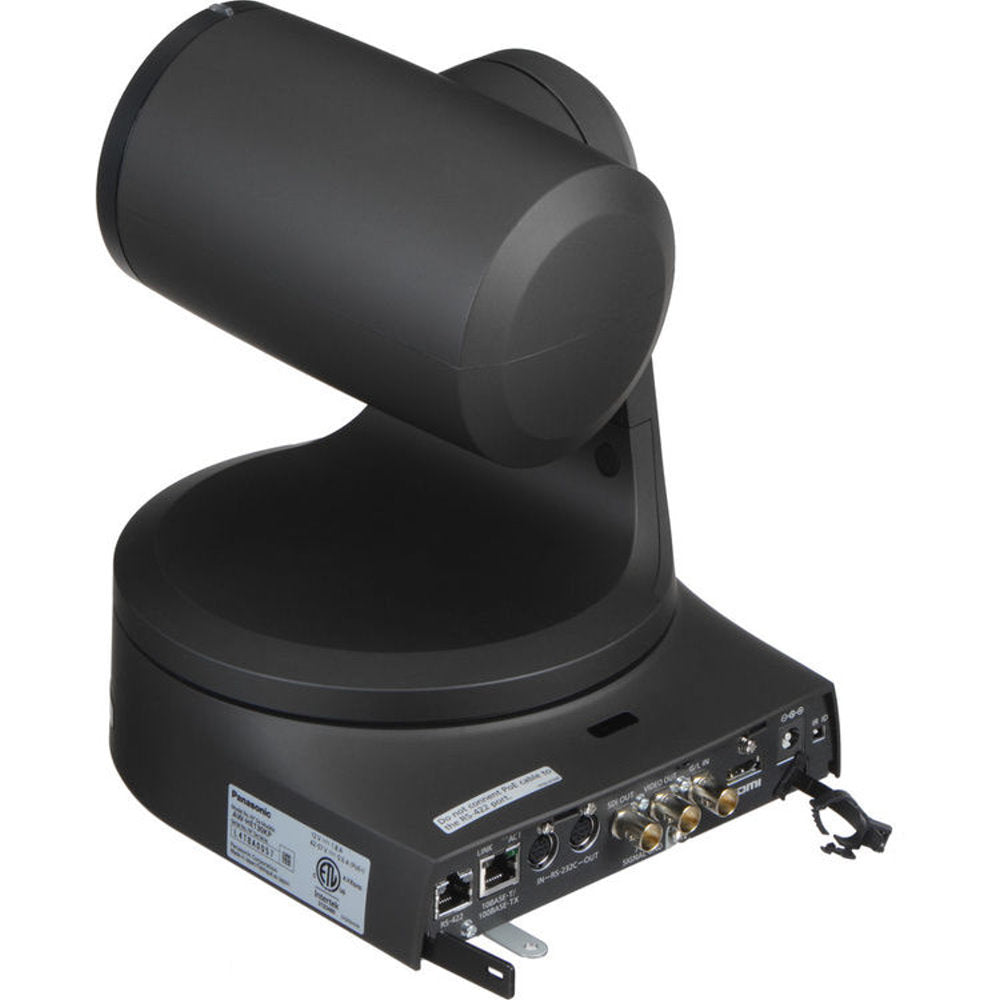

| Input/Output Connector | LAN: LAN connector for IP control (RJ‑45), PoE+ RS-422: CONTROL IN RS-422A (RJ‑45) MIC/LINE input: ø3.5 mm stereo mini jack Input impedance: High impedance • During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) • Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. -40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz) • During LINE input Input level: Approx. -10 dBV ±3 dBV |
| Pan-Tilt Operation Speed | 0.08°/s to 60°/s |
| Tilting Range*7 | –30° to 210°*5 |
