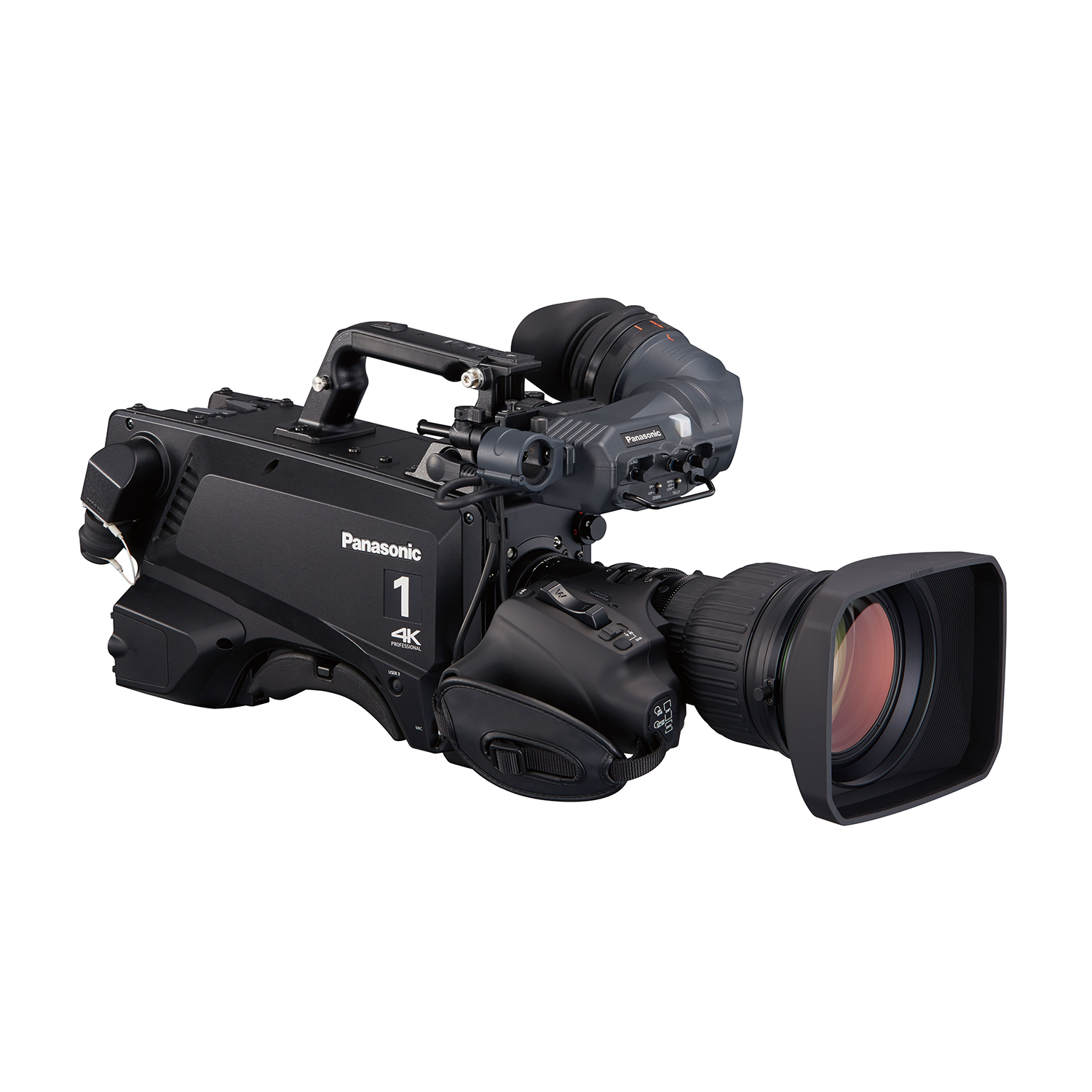

Panasonic AK-UC3000 4K HDR Broadcast Camera

MSRP: $34,000.00

Panasonic

Specs

Power supply	DC 12 V (when using an external power supply) AC 240 V, 50 Hz/60 Hz (when AK-UCU500P/AK-UCU500PS/ AK-UCU500E/AK-UCU500ES is connected)
Power consumption	119 W (maximum, when connecting to an external 12 V and including supply to an externally connected devices) 360 W (maximum, when AK-UCU500P/AK-UCU500PS/ AK-UCU500E/AK-UCU500ES is connected and including supply to an externally connected devices)
Operating temperature	-10 °C to 45 °C (14°F to 113°F) (Preheating required under a temperature 0 °C (32 °F) or below)
Storage Temperature	-20 °C to 60 °C (-4°F to 140°F)
Operating humidity	85% or less (relative humidity)
Weight	Approx. 4.4 kg (9.70 lbs.) (body only, excluding the accessories)
Dimensions (W x H x D)	Body only 151 mm x 267 mm x 371.5 mm (5-31/32 inches x 10-17/32 inches x 14-21/32 inches) (excluding protrusions)
Pickup Devices	11 million pixels, CMOS x 1
Optical Filter	CC: 3200 K, 4300 K, 6300 K, Cross, Diffusion ND: CAP, Clear, 1/4, 1/16, 1/64
Lens Mount	2/3-type bayonet
Sensitivity	Two shooting modes [HIGH SENS]: F10 (59.94 Hz)/F11 (50 Hz) [NORMAL][NORMAL]: -6, -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36 [HIGH SENS]: -6, -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36
Shutter Speed	・[59.94i]/[59.94p] mode: 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 ・[29.97p] mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 ・[23.98p] mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 ・[50i]/[50p] mode: 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 ・[25p] mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000

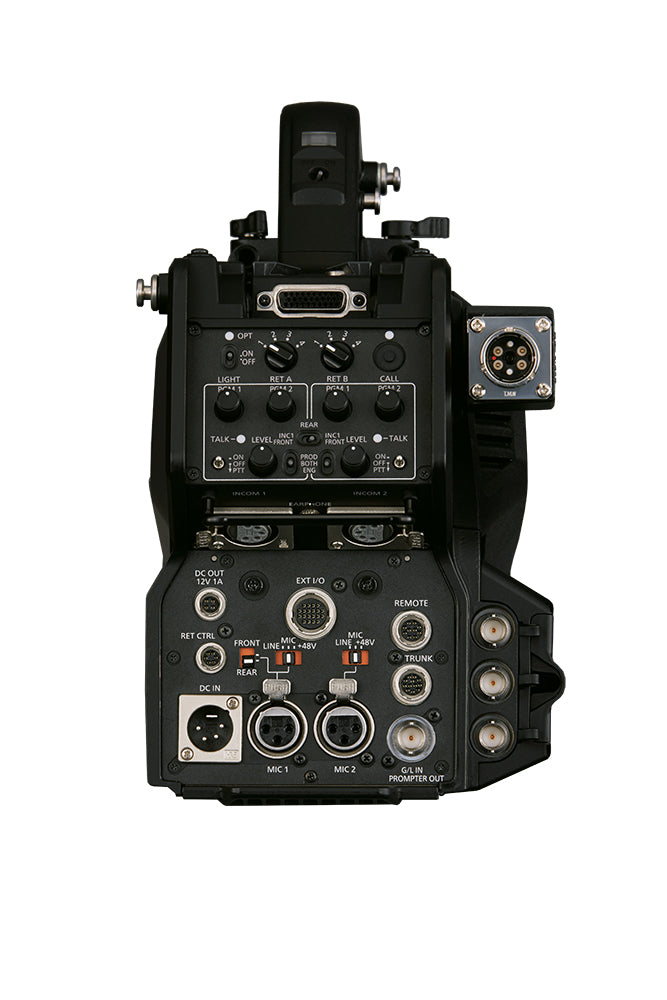

[HD SDI 1] Terminal	BNC x 1 HD (3G/1.5G): 0.8 V [p-p], 75 ohm
[HD SDI 2] Terminal	BNC x 1 HD (3G/1.5G): 0.8 V [p-p], 75 ohm
[AUX] terminal	BNC x 1 Functions as terminal/ terminal by switching the setting in the menu : HD (1.5G) : VBS signal 1 V [p-p], 75 ohm
[G/L IN/PROMPTER OUT] terminal	BNC x 1 : Tri-level SYNC or BB (black burst) : VBS signal 1 V [p-p], 75 ohm Functions as when standalone, and as when AK-UCU500P/ AK-UCU500PS/ AK-UCU500E/AK-UCU500ES is connected
[MIC 1] terminal	XLR x 1, 3-pin // switchable For , / switchable : 0 dBu, +4 dBu menu selection available : -60 dBu, -40 dBu, or -20 dBu menu can be selected
[MIC 2][MIC] terminal (front)	XLR x 1, 3-pin Switchable with terminal
[Intercom 1] Terminal	XLR x 1, 5-pin
[Intercom 2] Terminal	XLR x 1, 5-pin
[EARPHONE] terminal	Stereo mini jack x 1, 3-pin
[OPT FIBER] terminal	Optical composite connector x 1
[LENS] terminal	12-pin x 1
[VF][VF] terminal (rear)	29-pin x 1
[DC IN] Terminal	XLR x 1, 4-pin, DC 12 V
[DC OUT 12V 1A] terminal	4-pin x 1
[RET CTRL] terminal	6-pin x 1
[EXT I/O] terminal	20-pin x 1, DC 12 V, 0.5 A
[REMOTE] terminal	10-pin x 1
[TRUNK] terminal	12-pin x
[DC OUT 12V 2.5A] terminal	2-pin x 1
[LAN] Terminal	RJ-45 x 1
[USB2.0] terminal (host)	Type A connector, DC 5 V, 0.5 A
Build-up terminal	20-pin x 1

Share:

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

Description

Description

PRODUCT DETAILS

UHD system camera system for live OB and studio production, concert and live event capture, and higher education

KEY FEATURES

UHD system camera channel equipped with a newly-developed single 4K sensor
Supports 4K and HD acquisition simultaneously
The combination of larger pixels and optical expansion makes efficient use of incident light to achieve high sensitivity (F11@50p), low noise (S/N 60dB), chromatic aberration compensation and HDR capabilities
Built-in optical conversion lens allows standard 2/3-type B4 mount lenses to be used
IP streaming and IP control is supported

Designed for the Field, Studio & Today's Challenging Production Economy

The AK-UC3000 studio camera is yet another Panasonic innovation in broadcast technology. Users can operate the camera in both 4K and HD modes. In HD mode the AK-UC3000 produces HD images with high sensitivity and low noise. While including functions appreciated in the conventional model such as DRS and CineGamma, the AK-UC3000 Series adds new features such as focus assist, flash band compensation, and skew reduction, which is realized through high-speed scan from the MOS sensor. There are additional functions to improve shooting experience including enhanced shock less gain (-6 dB to 36 dB), a user gamma function, black gamma correction according to the pedestal setting, multi-step DNR, and easy matrix adjustment. AK-UC3000 Series achieves excellent image quality and operability.

The Full System

When paired with the AK-UCU500 Camera Control Unit, the AK-UC3000 is capable of 4K HDR production and uncompressed long-distance transmission. Also available to use alongside this product is the AK-HRP1000/Ak-HRP1005 Remote Operation Panel, equipped with a color LCD to provide visibility of the display for smooth control. The camera and camera control unit can be connected for an approximately 2,000-meter long-distance transmission of video signals when power is supplied from the camera control unit. The remote operation panel and the camera can be connected using a dedicated cable. The AK-HVF100 9" LCD color viewfinder has also been newly developed, equipped with a large display and diverse functions such as focus assist. Overall, this system offers superior cost performance with respect to both operability and ease of use.

Additional Key Features

Supports 4K and HD acquisition simultaneously. HD output from camera (3G-SDI): 1080/59.94p, 50p, 59.94i, 50i, 29.97psF, 25psF, 23.98p over 59.94i and 720/59.94p
Supports standard dynamic range (SDR) and High dynamic range (HDR) acquisition simultaneously via hybrid log gamma (HLG) output options
Delivers high sense sensitivity of F10 (59.94Hz), F11 (50Hz)
Equipped with a CAC (Chromatic Aberration Compensation) function capable of correcting even slight chromatic aberration at the lens periphery
The DRS (Dynamic Range Stretch) function suppresses blocked shadows and blown highlights. Black gamma function for independent color settings in dark areas
The V-REC, F-REC function provides powerful support in digital cinema production.
Features an internal digital extender (x2 magnification)
12-axis color correction, detail, skin tone detail (two-tone axis) and easy matrix adjustment
An SD Memory Card can be used to set up data and firmware version.
IP streaming (compatible with Newtek Autolink for Panasonic PTZ) and IP control is supported
Advanced trunk functions such as 3x CCU to the camera, plus 1x HD-SDI from Camera to CCU as well as a 1000Base-T LAN-Trunk
