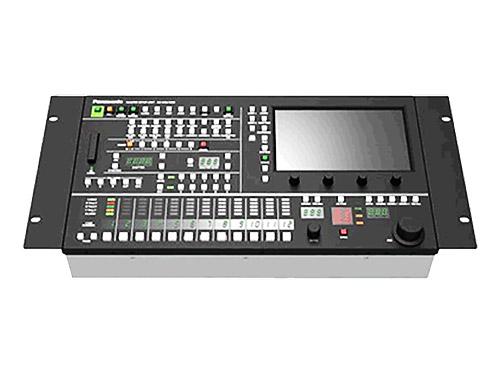

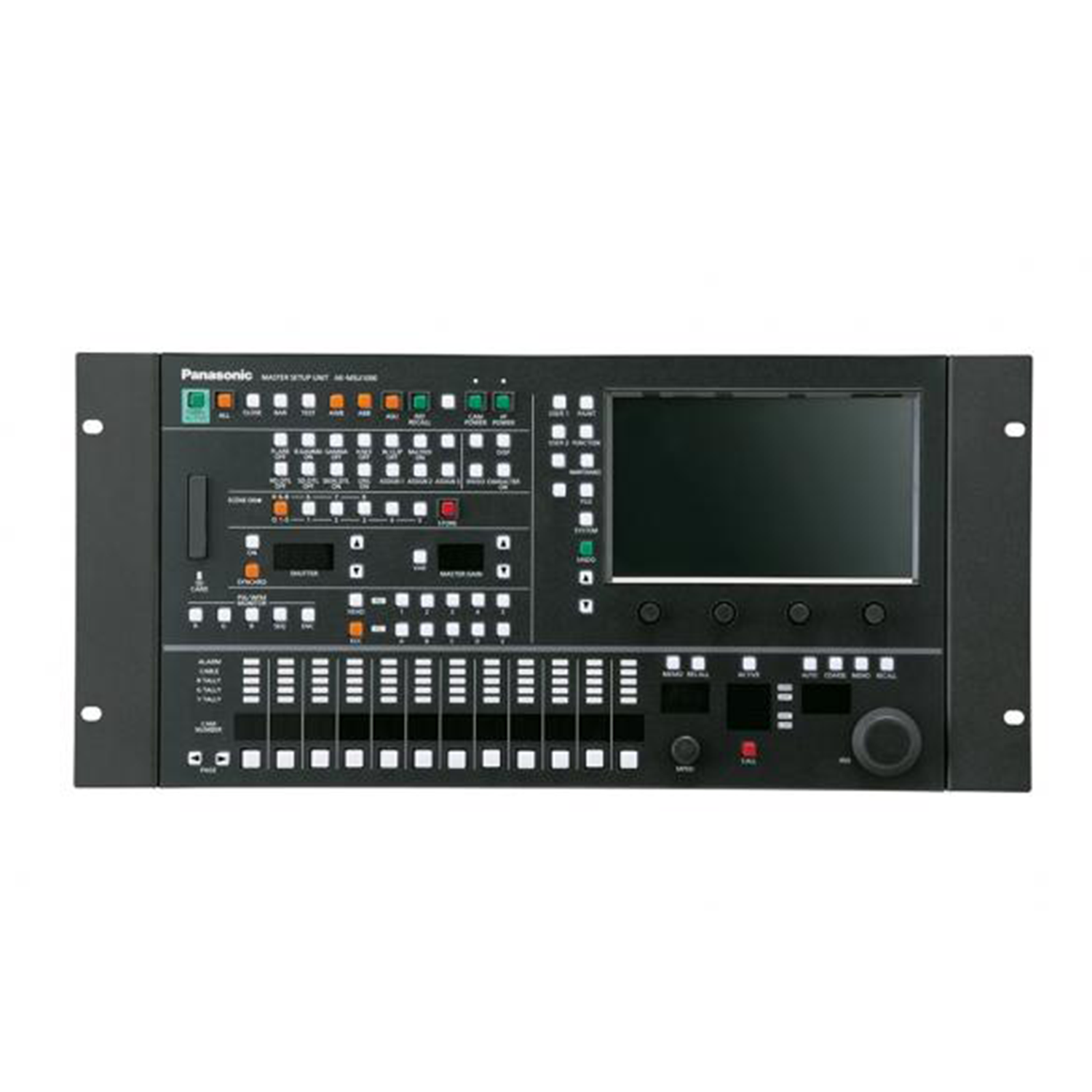

Panasonic AK-MSU1000 Camera Master Control Unit

MSRP: $18,000.00

Panasonic

-
+
PRODUCT DETAILS

Master Setup Unit (MSU) - Maximum of 20 CCU can be connected and controlled from an AK-MSU100 Plus Versatile Assist Functions Transmission Camera System to Be Configured at Low Cost

KEY FEATURES
  • Large scale 7-type color LCD Touch Panel
  • Master control of precise camera settings for the entire camera system
  • Serial & IP control (6x serial and up to 99 cameras by IP)
  • Camera/CCU Information Output (1080i)
  • HD SDI Input (Monitoring, 1080i)

Specs

Weight Approx. 4.0 kg (8.82 lb)
Dimensions (W x H x D) 482 mm x 222 mm x 81.5 mm
(18-31/32 inches x 8-3/4 inches x 3-7/32 inches)
(including mounting brackets and dial heights)
Operating temperature 1.6 A (Power supply: 12 V DC) 0.6 A (PoE+ power supply)
Power supply 12 V DC (DC input range: 10 V - 16 V DC)
42 V - 57 V DC (PoE+ power supply)
Power consumption 1.6 A (Power supply: 12 V DC)
0.6 A (PoE+ power supply)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 90% or less
Adjustment functions Scene file, ND filter, CC filter, Color temperature (COLOR TEMP), Master gain (MASTER GAIN), Shutter (SHUTTER), Master pedestal (MPED), Iris (IRIS), Camera selection
Maximum Cable Length When CCU connected: 50 m (164 ft)
CCU Control RS422 or IP
Note 1: Depending on the setting, only one of them can be selected at one time.
2: The BB (black burst) signal and tri-level sync signal of the reference input are recognized automatically.
3: IP video cannot be transmitted when [CCU MODE] is set to [2160/23.98p],
[2160/23.98PsF], [1080/23.98p], or [1080/23.98PsF].
4: Can be provided from CCU
