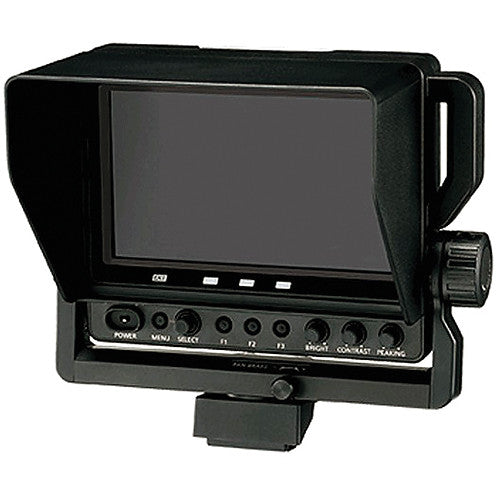

Panasonic AK-HVF70 7" LCD Color Viewfinder

$6,995.00
$6,995.00
Availability:
SKU: AK-HVF70
Tags:
Collections:
$6,995.00
$6,995.00
PRODUCT DETAILS

The AK-HVF70E is a 17,8cm (7") LCD color viewfinder with light weight, low power consumption and a high resolution plus versatile assist functions like focus-in-red and pixel-to-pixel. By direct connect functionality no separate cable is necessary to connect the VF to the studio camera.

KEY FEATURES
  • Resolution: 1024 x 600 (WSVGA)
  • Three assignable function keys
  • Focus assist functions (focus-in-red, pixel-to-pixel)
  • Tilt angle: 90° upward and 60° downward
  • Weight: 1,8kg

Specs

Weight Approx. 1.6 kg (approx. 3.53 lb) (without hood)
Dimensions (W x H x D) 243.5 mm x 212 mm x 172 mm
(9-19/32 inches x 8-11/32 inches x 6-25/32 inches)
(with hood attached)
243.5 mm x 212 mm x 85 mm
(9-19/32 inches x 8-11/32 inches x 3-11/32 inches)
(without hood)
Operating temperature 0 °C to 45 °C (32 °F to 113 °F)
Power supply DC 12 V (supplied by the camera)
Power consumption 10 W
Operating humidity 10% to 85% (no condensation)
Storage Temperature –20 °C to 60 °C (–4 °F to 140 °F)
Display Colors Approx. 16,200,000 colors
Panel size 177.8 mm (7.0 inches)
Number of Pixels 1024 pixel x 600 pixel (WSVGA)
Operation Panel POWER switch x 1, MENU button x 1
SELECT dial x1, Function buttons x 3
Picture adjusting knobs x 3
([BRIGHT], [CONTRAST], [PEAKING])
Connectors Camera I/F connector (D-Sub 29-pin x 1)
