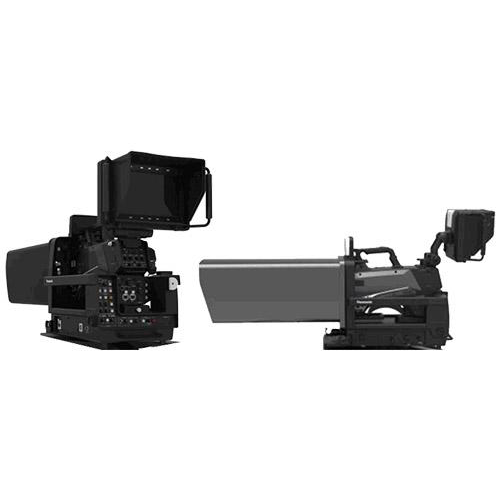

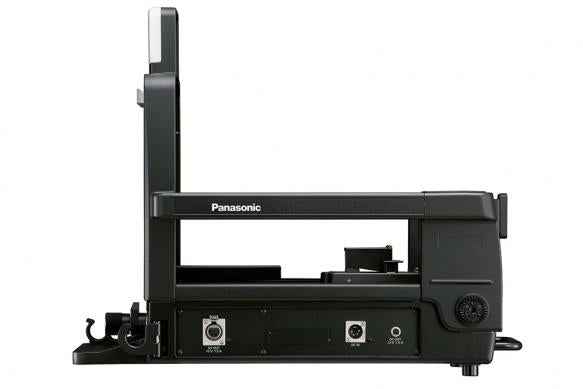

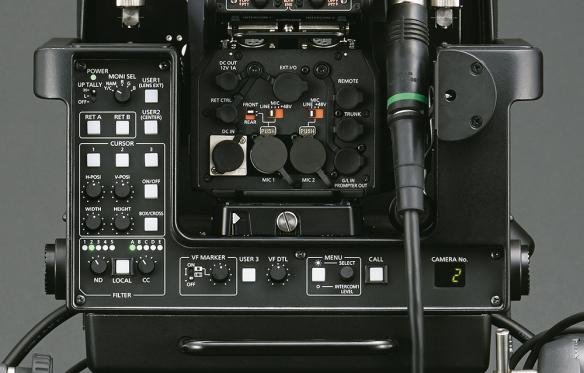

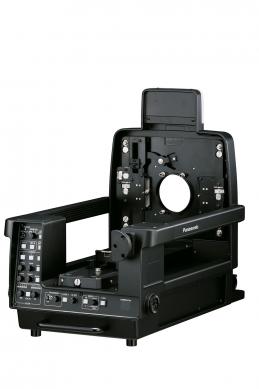

Panasonic AK-HBU500 Camera Build-Up Unit

$23,000.00
$23,000.00
Availability:
SKU: AK-HBU500
Tags:
Collections:
$23,000.00
$23,000.00
PRODUCT DETAILS

Build-up Unit - Supports Large and ENG/EFP lens adaptor

KEY FEATURES
  • Camera can be mounted fast and smoothly
  • One cable solution
  • Power Output: DC12V/7.5A and DC12V/1.5A
  • 3 User buttons
  • 3 Cursor memories/button

Specs

Weight Approx. 12.8 kg (28.22 lb) (unit only)
Dimensions (W x H x D) 300 mm x 417 mm x 510 mm
(16-7/16 inches x 20-1/16 inches x 11-13/16 inches)
Operating temperature -10°C to 45°C (14°F to 113°F)
Power supply 12 V DC (when external power is supplied)
240 V AC 50 Hz/60 Hz (when AK-UCU500 is connected)
Power consumption 70 W (when external power is supplied)
165 W (when AK-UCU500 is connected)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity Range 85% or less (relative humidity)
Camera Number Display 1 to15 (depending on system settings)
LENS I/F Connector 36-pin x 1
CAMERA I/F Connector 20-pin x 1
[DC IN] Connector XLR x 1, 4-pin, 12 V DC
[DC Out 12V 1.5A] Connector 4-pin x 1
Note *1: Depending on the setting, only one of them can be selected at one time.
*2: The BB (black burst) signal and tri-level sync signal of the reference input are
recognized automatically.
*3: IP video cannot be transmitted when [CCU MODE] is set to [2160/23.98p],[2160/23.98PsF], [1080/23.98p], or [1080/23.98PsF].
*4: Can be provided from CCU
[DC Out 12V 7.5A] Connector XLR x 1, 4-pin
