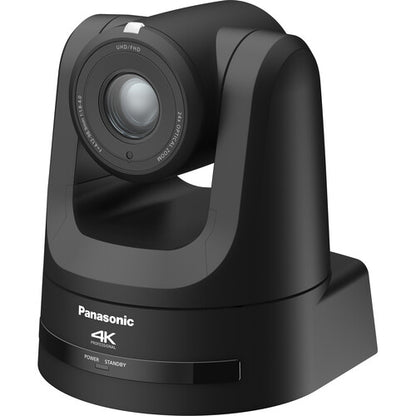

Panasonic 4K NDI Pro 12G-SDI/HDMI PTZ Camera with 24x Optical Zoom

Color: Black

Inquire about Panasonic 4K NDI Pro 12G-SDI/HDMI PTZ Camera with 24x Optical Zoom

Availability:
SKU: AW-UE100KPJ
Tags:
Collections:

The black 4K NDI Pro 12G-SDI/HDMI PTZ Camera with 24x Optical Zoom from Panasonic features a 1/2.5" 4K MOS sensor and outputs over HDMI, or you can use the NDI or NDI|HX protocols to stream video and audio, control (IP), tally, and power over a single Ethernet cable using PoE++ (Power-over-Ethernet).

  • 1/2.5" 4K MOS Sensor
  • HDMI, 12G-SDI, NDI & NDI|HX Output
  • 24x Optical Zoom, Capture up to UHD 4K
  • 3.3-74.1° Horizontal Field of View
  • ±175° Pan Range
  • -30 to 210° Tilt Range
  • Optical & Electronic Image Stabilization
  • Embedded Audio & 3.5mm Stereo Analog In
  • MJPEG/H.264/H.265/NDI/NDI|HX Streaming
Image Sensor 1/2.5"-Type MOS
Sensor Resolution Effective: 8.49 Megapixel
Shutter Speed 1/10000 to 1/24 Second
Optical Zoom Ratio 24x
Max Digital Zoom 36x ( in 1080p)
External Recording Modes SDI/BNC
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080p at 25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1920 x 1080PsF at 23.98/25/29.97 fps
1280 x 720 at 50/59.94 fps
4:2:2 10-Bit via HDMI
3840 x 2160 at 25/29.97/50/59.94 fps
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1920 x 1080PsF at 23.98/25/29.97 fps
1280 x 720 at 50/59.94 fps
Broadcast Output NTSC/PAL
IP Streaming H.264, H.265, MJPEG, NDI|HX, RTMP, RTMPS, RTP, SRT, TCP, UDP
3840 x 2160 at 23.98p, 25p, 29.97p, 50p, 59.94p
1920 x 1080 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p
1280 x 720 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p
640 x 360 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p
320 x 180 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p
Supported Control Protocols FreeD
IP
RS-422
PoE Support PoE++ 802.3bt
Mounting 1x 1/4"-20 Female
  • Panasonic 4K NDI Pro 12G-SDI/HDMI PTZ Camera with 24x Optical Zoom
  • Ceiling Mount
  • AC to DC Adapter
  • Limited 1-Year Warranty
