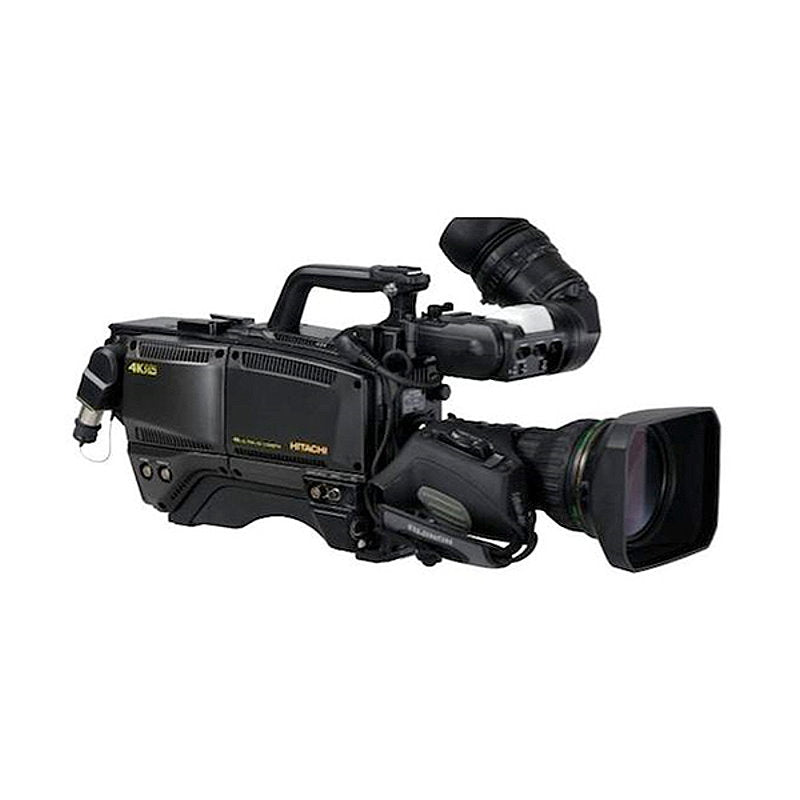

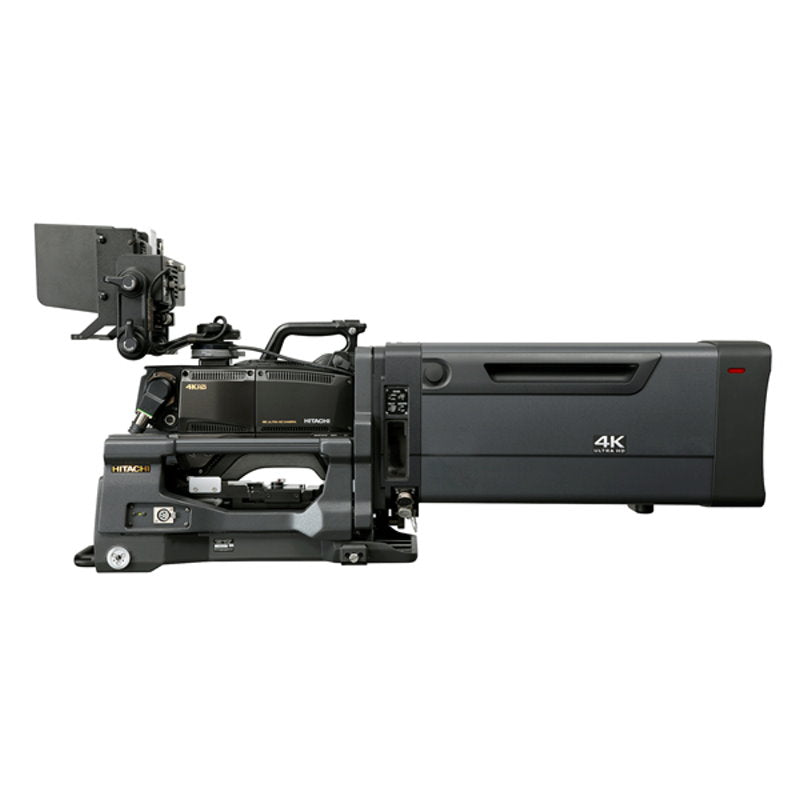

Hitachi SK-UHD4000 Ultra High Definition Studio and Field Camera Package

Name: Hitachi SK-UHD4000 Ultra High Definition Studio and Field Camera Package
Brand: Hitachi
SKU: SK-UHD4000-ST
Price: 41652.0 USD
Availability: InStock

$41,652.00

Availability:

SKU: SK-UHD4000-ST

Tags:

Collections:

$41,652.00

Description
Specification

The SK-UHD4000 was the world’s first UHD camera to employ industry-standard B4 2/3 inch bayonet lenses. 2/3 inch sensors deliver the deep depth of field and high sensitivity needed for traditional TV studio and sports production. Additionally, broadcasters, rental houses and mobile sports trucks have huge investments in existing B4-mount HD television lenses. Many single sensor 4K TV production cameras have been prohibitively expensive due to the special lenses required.

Employs B4 [BTA S-1005A] 2/3-inch industry standard lenses.

B4 lenses have a standardized image size, flange-back distance and electrical interface.

Compatible with existing and future HDTV broadcast, bayonet mount lenses from all manufacturers.

Allows 4K productions using HD B4 mount optics without any sort of attenuating adapter.

Unique Hitachi 4 port prism best preserves the lens MTF (Modulation Transfer Function) that provides the maximum contrast in 4K images.

The camera's optical block employs 'dual-green' and 'pixel offset' technologies to dramatically increase resolution in the Y (luminance) channel.

See details of Hitachi’s unique 4 port imager system.

Hitachi's advanced digital signal processing (DSP) creates ultra-high resolution images from a total of 8.8 million effective pixels.

Provides independent cut-out of HD SDI image from 4K raster that can be re-framed in real-time.

Functions as a normal HD (1920x1080/60p) camera while recording 4K in real time.

Employs the NEW HITACHI RLAC [2- Dimension Real-time Lens Aberration Correction] system that eliminates most lenses’ lateral chromatic aberrations.

Designed around the latest generation of CMOS sensors.

High Signal to Noise Ratio of 62dB.
High sensitivity of F8.0 is achieved in full UHD [3840 × 2160/59.94/P] progressively scanned image.

High resolution with 8.8 mega pixels

Super-sampled 1920x1080 HD-SDI outputs (down-converted from 4K) offers superb picture quality.

Retains a faithful 4:2:2 color space at 10-bits/sample.

Camera head power consumption: <38W.

Employs existing SMPTE-304/311 Hybrid fiber cable and connectivity.

Two HD (2K) progressive outputs directly from the camera head.

AC Power + Digital and analog teleprompter outputs at the camera head

Camera Head SK-UHD4000 / SK-UHD4000E

Lens mount B4 Bayonet

Imaging device 4 x 2/3-inch MOS Image sensor

Total pixels 2,270 (H) × 1,144(V) 2.6 million pixels

TV system SK-UHD4000 : 3,840 (H) x 2,160 (V) /59.94Hz

SK-UHD4000E: 3,840 (H) x 2,160 (V) /50Hz

Optical system F1.7 prism

Optical filters 2x motorized filter wheel

ND( CAP, CLEAR, 1/4ND, 1/16 ND, 1/64 ND)

CC(CROSS, 3200K, 4300K, 6300K, 8000K)

ECC 5600K

Sensitivity 59.94p :F8 @ 2000 lx, 3200 K, 89.9% reflectance

50p :F9 @ 2000 lx, 3200 K, 89.9% reflectance

Signal to Noise ratio 62dB at 1080i

Resolution Min 1800TVL (4K output from CU-UHD4000)

Down-Convert mode Horizontal Min 1100TVL,

Vertical Min 1000TVL

(At center with lens iris F2.8 to F4, depending on lens)

Vertical smear No smear

Registration 0.01 % (excluding lens characteristics)

Gain selection L (low) -3/0dB

M (medium) 0/+3/+6/+9/+12/+15/+18/+21 dB

H (high) +3/+6/+9/+12/+15/+18/+21/+24 dB

Electric shutter Preset mode

1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 second

(59.94Hz)

1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 second (50Hz)

Lock scan mode

1/60.15 to 1/2043 second (59.94Hz)

1/50.17 to 1/1939 second (50Hz)

AES mode

Automatic video level control by shutter speed.

Power consumption 38W Head with Camera Adaptor (without VF)

Dimensions 133(W) x 191(H) x 262(D) mm

Mass approx. 4.7kg (7.8lbs), with Camera Adaptor (without VF)

Temperature range Operation -10 °C to +45 °C , 14 °F to +113 °F

Storage -20 °C to +60 °C , -4 °F to +140 °F

Input & Output MON/VF/RET OUT: 1x BNC HD-SDI(1080i)

REMOTE:1x 4-pin Multi for remote control panel

VF: 1x 20-pin Multi for VF

LENS: 1x 12-pin Multi for LENS

MIC: 1x 3-pin XLR for MIC-1

SD Memory Card Slot

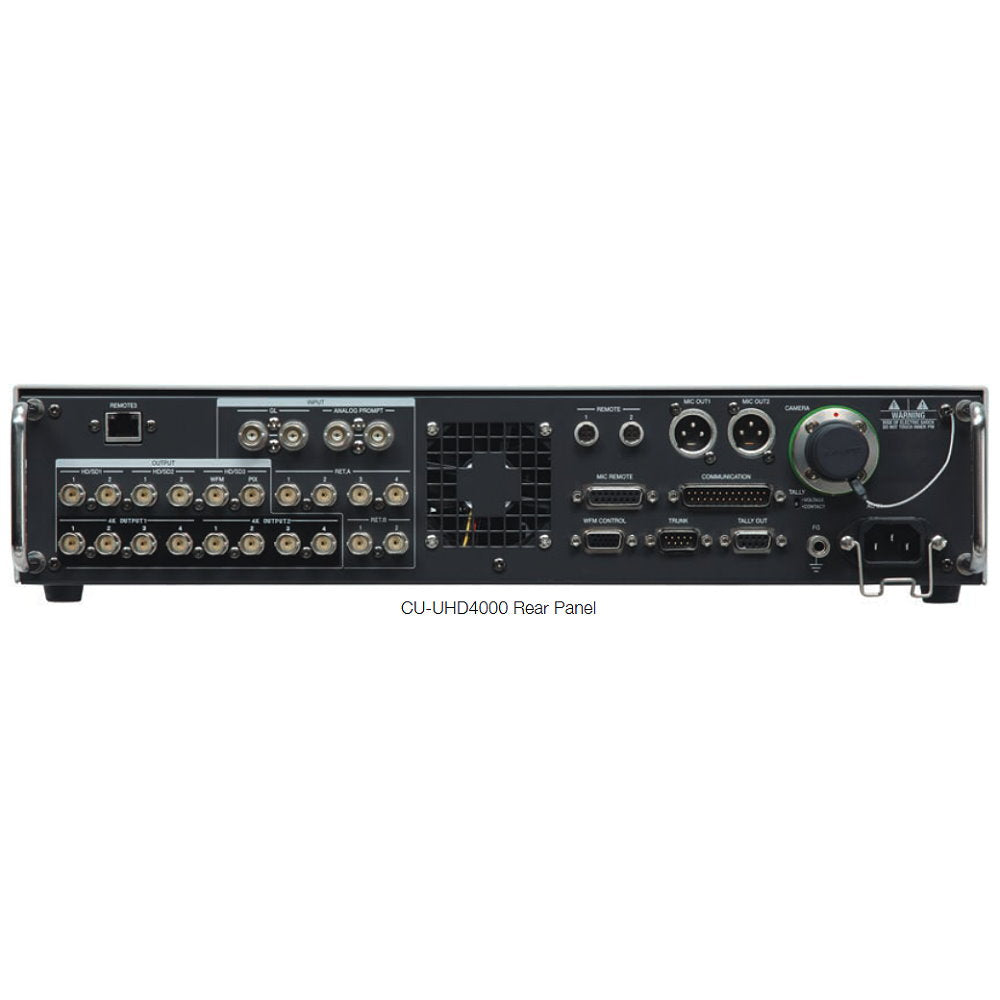

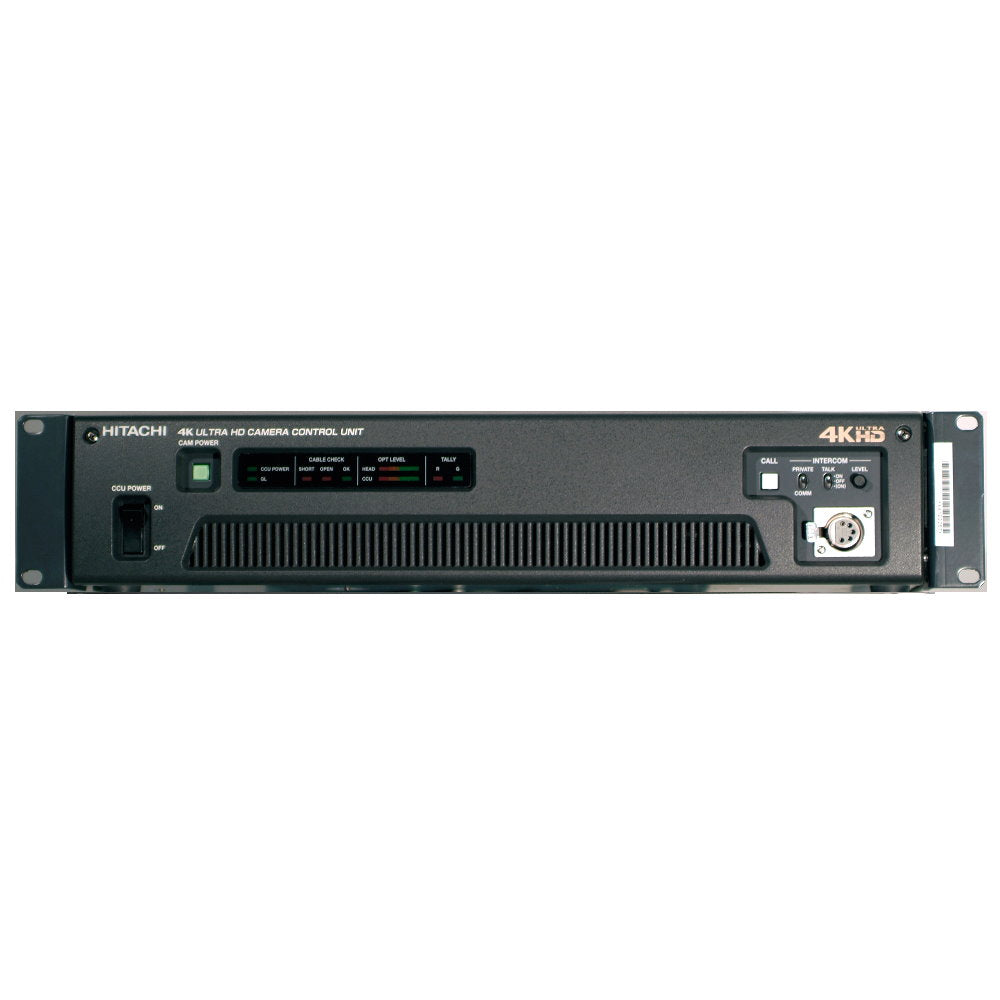

Package Includes: SK-UHD4000 Camera Head, TA-Z3 tripod adapter, VF-PBM307 7” Color LCD studio viewfinder, AT-750 viewfinder mount, CA-HF4000 fiber optic cable adapter, CU-UHD4000 CCU, RU-1000VR basic remote unit with C-102RH 10 meter control cable.
