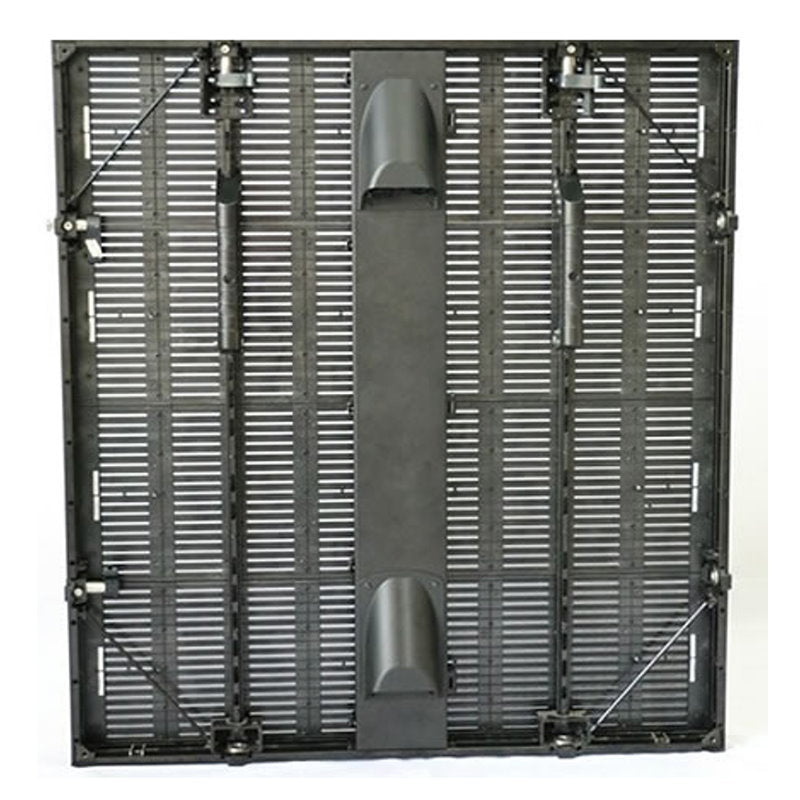

Desay M4, M5, M6, M8, M10, M12, M16 Outdoor Rental Display

Desay

Parameter Value
Application environment Outdoor rental
Transparency ratio(%) 0
Pixel pitch (mm) 4.762/4.688
Brightness (nits) 5000
Pixel configuration SMD 3 in 1
Scanning Mode 1/7
Panel weight (kgs) 19.8
Pixel per ㎡ 44800
Pixel matrix per panel 168x192
Display refresh rate (Hz) 3840
Input power (Max/Avg.) (w/㎡) 560/190
Panel size (W×H×D) (mm) 800×900×65
Panel area (㎡) 0.72
Panel material Aluminum
Ingress protection (front/rear) IP65/IP54
Certification CE,RoHS, UL
*Desay reserves the right to change any technical specifications without prior notice.



-
+





Inquire about Desay M4, M5, M6, M8, M10, M12, M16 Outdoor Rental Display

This is where your TEXT BOX 1 goes






Perfect display effect

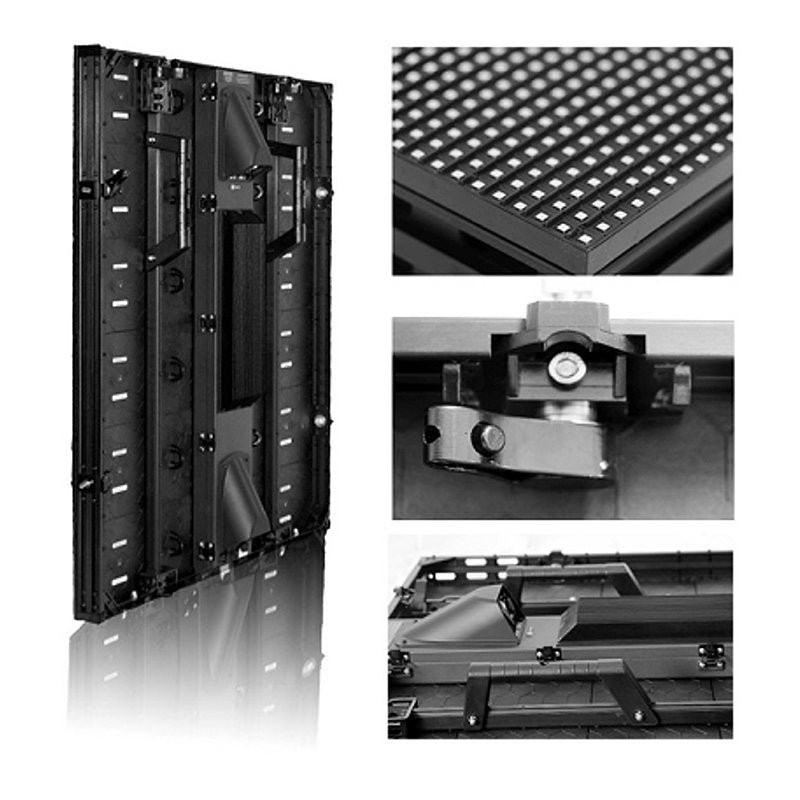

  • Seamless locking design, deep-black louver enables a sharp and crispy screen image.
  • Unique dot- by-dot calibration on both color and brightness of each pixel effectively erase the dark spot and stain, achieves perfect image quality.
  • High brightness, high refresh rate, wide viewing angle



Multi-functional

8:9 ratio is easier to build a big display.
Both indoor and outdoor use, adjustable brightness based on enviromnent.

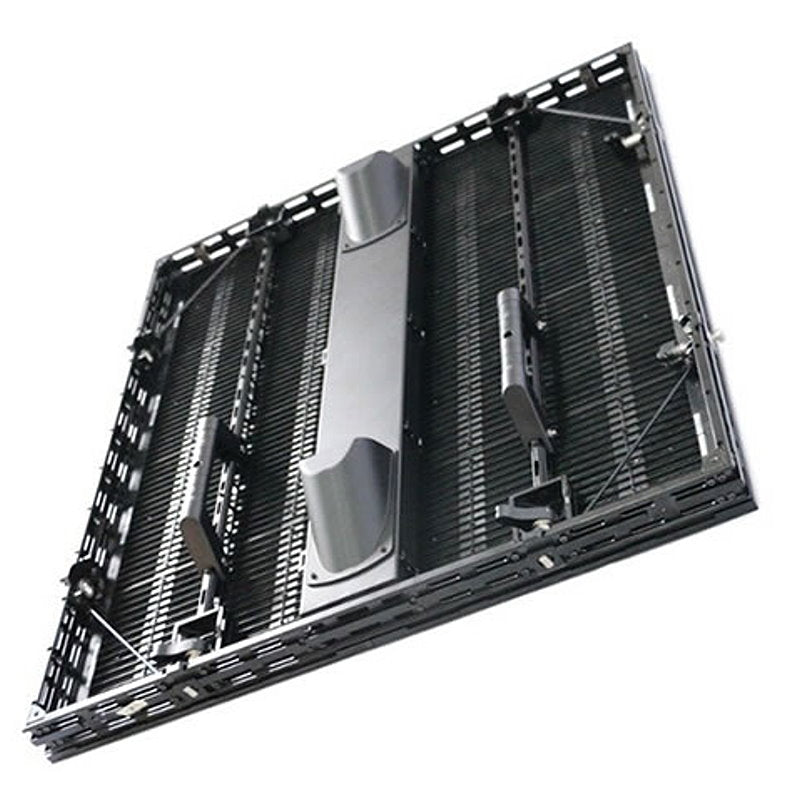

Enclosed cabinet design and solid cabinet structure are suitable for fixed installation, hanging, stacking and so on.





Parameter Value
Application environment Outdoor rental
Transparency ratio(%) 0
Pixel pitch (mm) 4.762/4.688
Brightness (nits) 5000
Pixel configuration SMD 3 in 1
Scanning Mode 1/7
Panel weight (kgs) 19.8
Pixel per ㎡ 44800
Pixel matrix per panel 168x192
Display refresh rate (Hz) 3840
Input power (Max/Avg.) (w/㎡) 560/190
Panel size (W×H×D) (mm) 800×900×65
Panel area (㎡) 0.72
Panel material Aluminum
Ingress protection (front/rear) IP65/IP54
Certification CE,RoHS, UL
*Desay reserves the right to change any technical specifications without prior notice.
