By Coleder

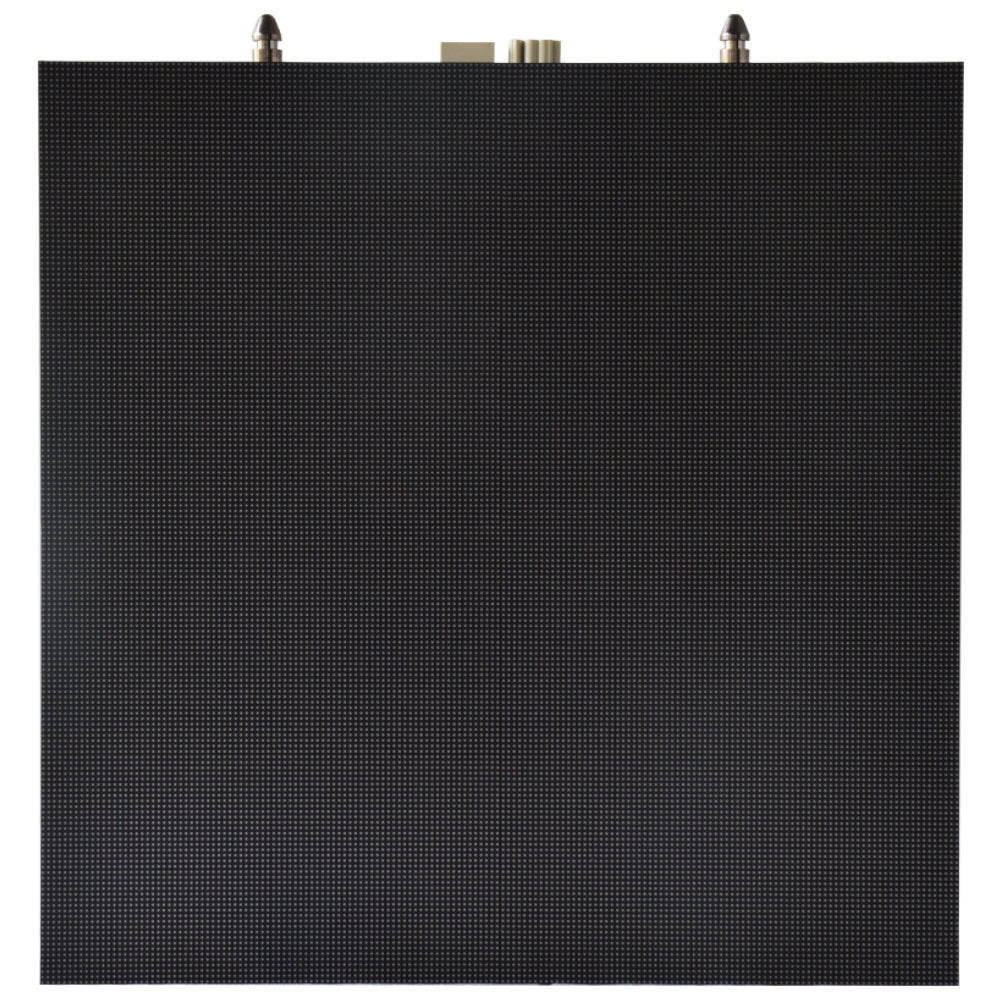

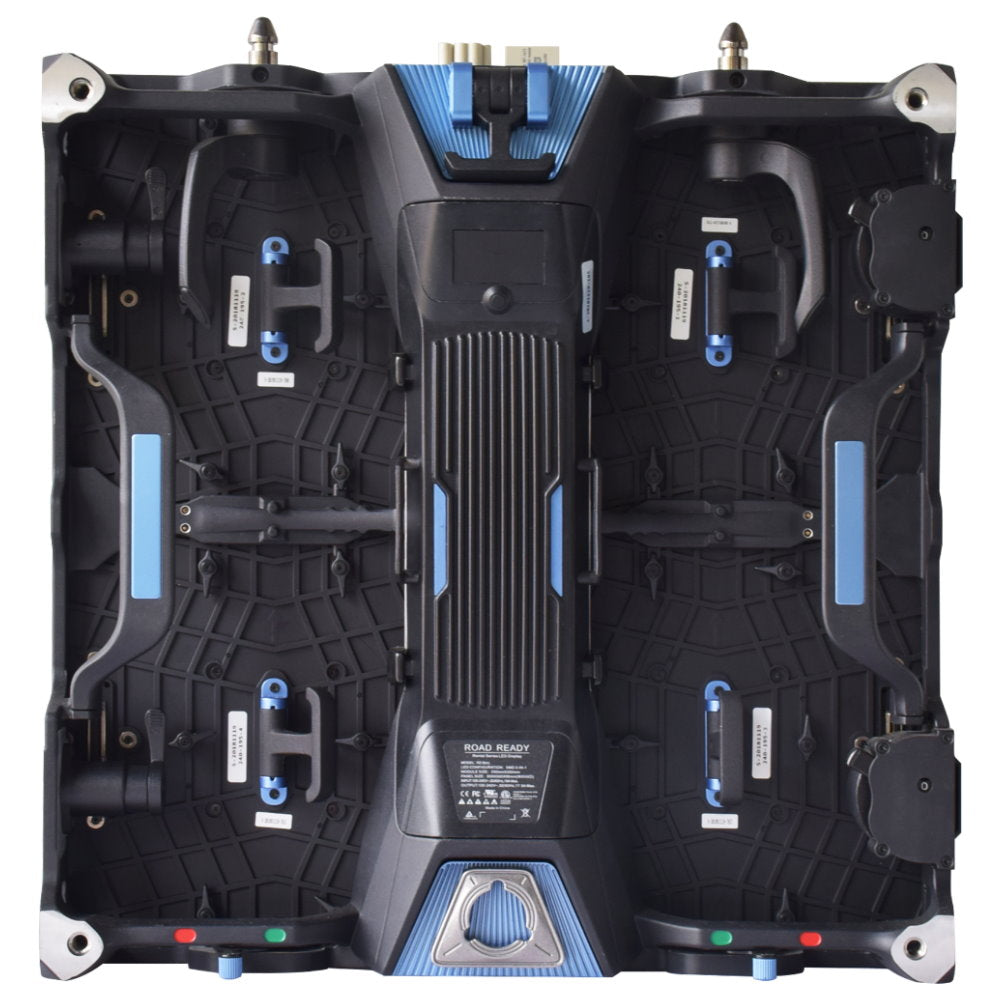

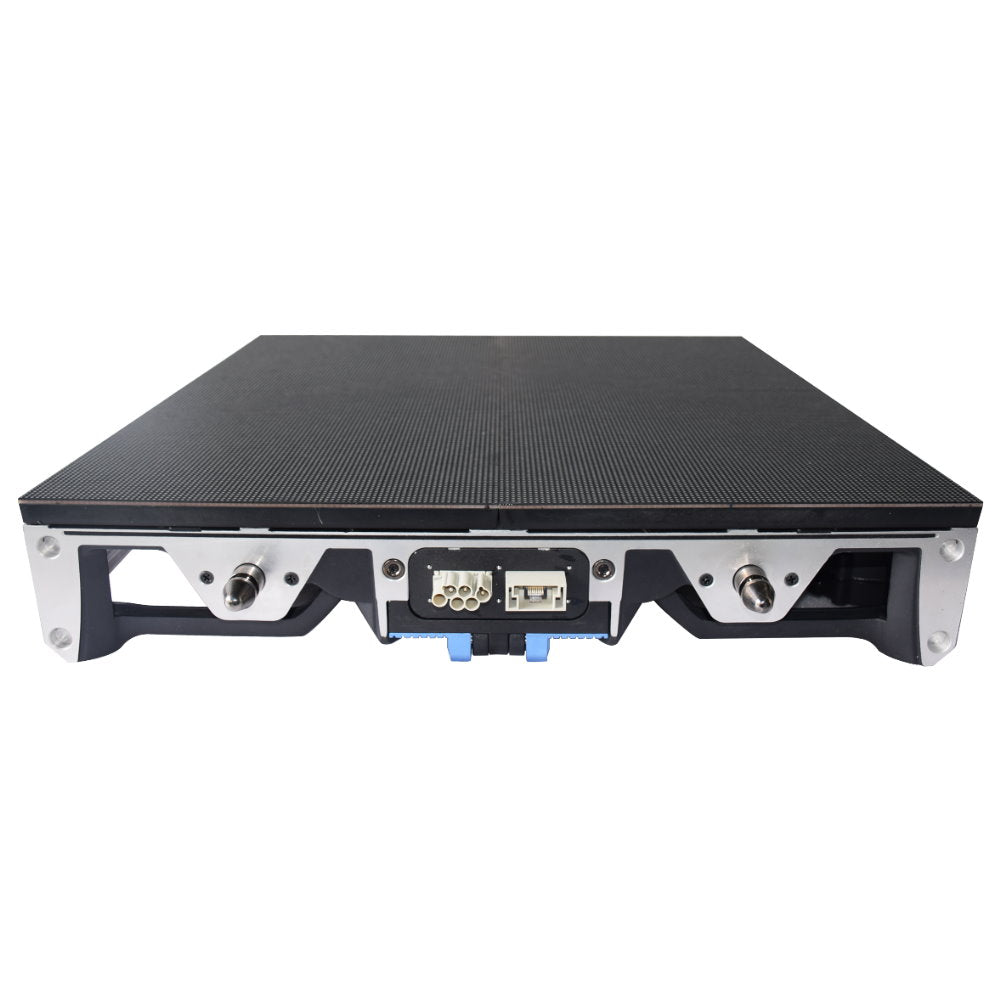

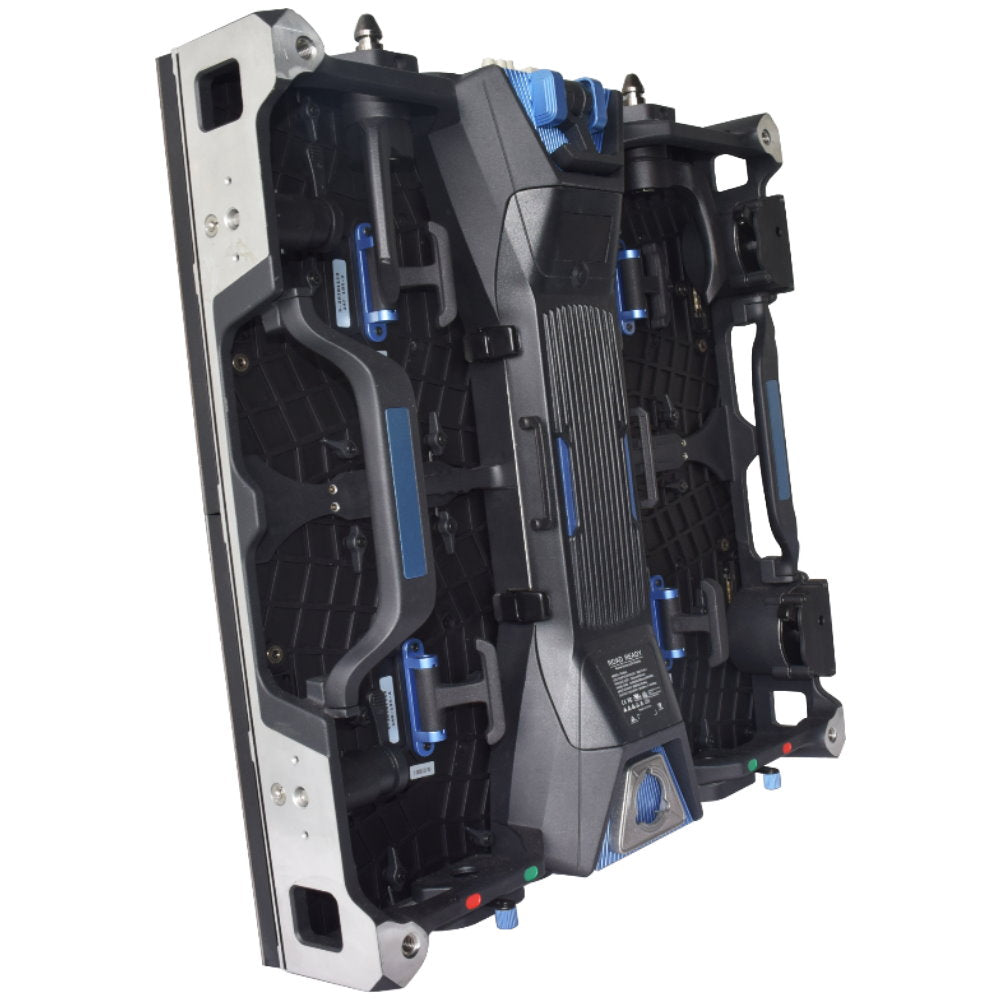

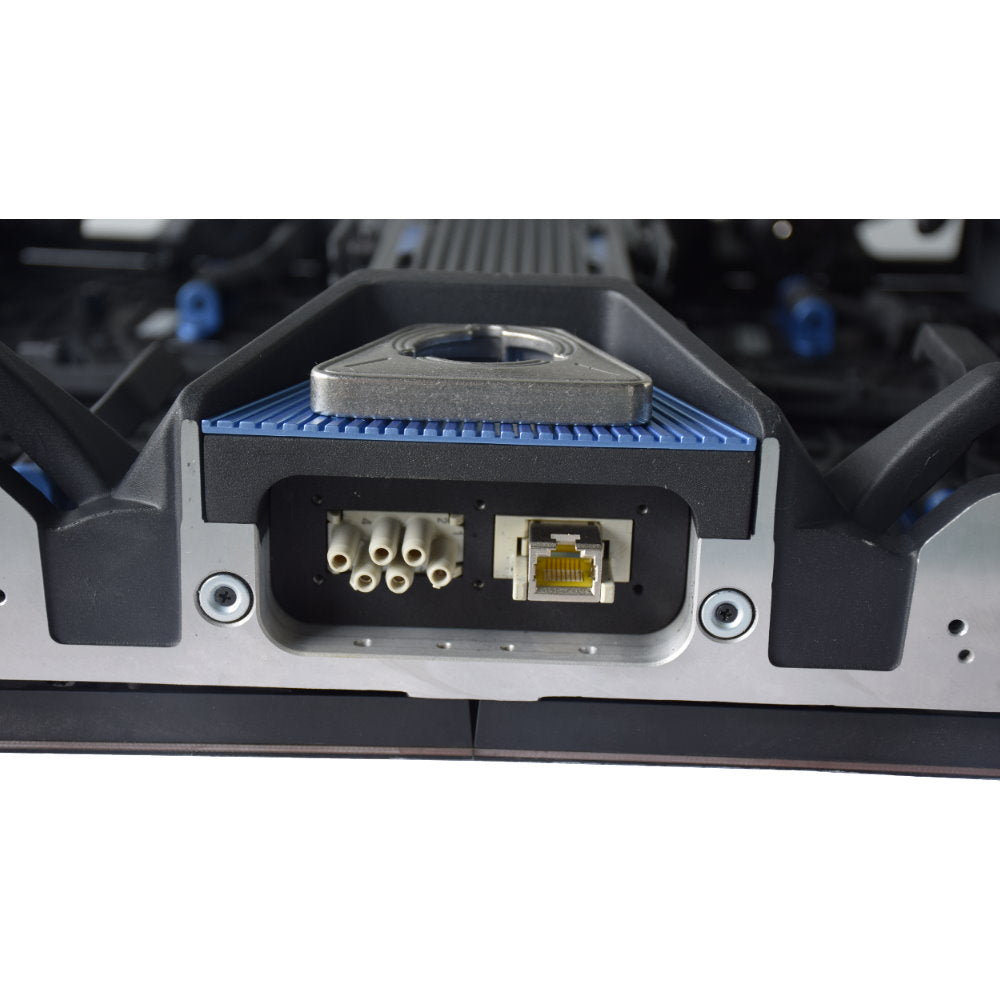

Coleder Road Ready Rental LED Outdoor Display Panel 3.9mm, 4.8mm
Couldn't load pickup availability
Availability:
SKU:
road ready outdoor
Tags:
| Type | R2.6(in)Hot | R2.9(in) | R3.9(out)Hot | R4.8(out) |
|---|---|---|---|---|
| Pixel Pitch (mm) |
2.6mm | 2.97mm | 3.91mm | 4.81mm |
| Pixel Density (Dots/㎡) |
147,456 | 112,896 | 65,536 | 43,264 |
| Panel Resolution (W*H) |
192*192 | 168*168 | 128*128 | 104*104 |
| Panel Weight (KG) |
9.7kgs | 9.7kgs | 9.7kgs | 10.2kgs |
| Protection Level (IP Front/Back) |
IP40 | IP40 | IP65/54 | IP65/54 |
| Max./Ave. Power Consumption (Per Panel) |
120/50 | 120/50 | 120/50 | 140/60 |
| Max. Rigging | 16Panels | 16Panels | 16Panels | 15Panels |
| Curved installation | -5°~0°~+5° | -5°~0°~+5° | -5°~0°~+5° | -5°~0°~+5° |
| Certification | CE-TUV, ETL, RoHS, FCC | |||
