By Blackmagic
Blackmagic HyperDeck Studio 2 Pro
Regular price
$1,995.00
Regular price
Sale price
$1,995.00
Unit price
per
Couldn't load pickup availability
Regular price
$1,995.00
Regular price
Sale price
$1,995.00
HyperDeck Studio disk recorders let you record the highest quality uncompressed or compressed ProRes and DNxHD video formats using fast 2.5" SSDs. Designed with familiar VTR controls, HyperDeck Studio includes innovative features that extend beyond the capabilities of traditional decks. Dual SSD slots let you record continuously, so when one disk is full recording automatically continues on the next SSD. You can mount an SSD recorded from HyperDeck Studio on any computer to access your files, so you can work with your media directly without copying the files! There are three great HyperDeck Studio models to choose from depending on your budget and what video formats you need to work with!

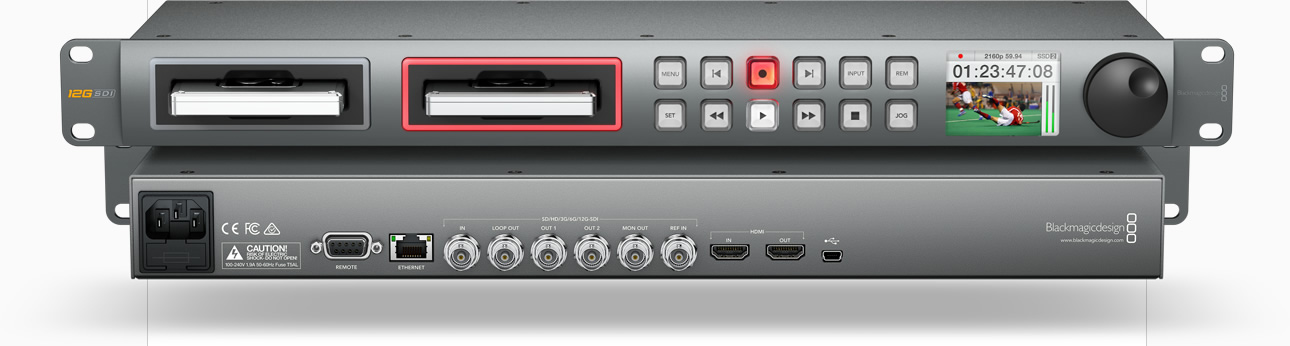

Replace Aging Decks
Record broadcast quality 10-bit video
HyperDeck Studio is a fantastic modern replacement for aging broadcast decks. You get the same functionality and control of a professional deck with the advantage of recording directly to uncompressed or industry standard ProRes and DNxHD video formats. Connect cameras, switchers or any other video feed to HyperDeck Studio and create files that are perfect for every production and post production workflow! With a slim 1 rack unit design, HyperDeck Studio is considerably smaller than a traditional VTR and fits easily into any equipment rack, OB vehicle or flyway kit!

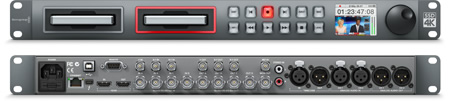

HyperDeck Studio Pro
HyperDeck Studio Pro is the ultimate in compatibility and technology, featuring a more advanced design that includes 6G-SDI so you get SD, HD and Ultra HD formats, plus HyperDeck Studio Pro includes a wide range of video and audio connections in both analog and digital so you get the widest compatibility with older and newer equipment. Get SD, HD up to 1080p60 and Ultra HD up to 2160p30 all in the one deck! Also includes 6G-SDI and Quad SDI, HDMI 4K, analog component, balanced analog audio and AES/EBU audio compatibility. You even get built in Thunderbolt for computer capture and UltraScope software for live scopes!
High Frame Rate Ultra HD
Record incredible high frame rate 2160p60 video!
2160 Ultra HD capture
The advanced HyperDeck Studio 12G model includes 12G-SDI which allows Ultra HD at higher frames up to 60 fps. For years broadcasters have used high frame rate 720p and 1080p HD to cover sport and other fast action events. Now with 12G-SDI, HyperDeck Studio 12G can record the same high frame rates in Ultra HD. Now broadcasters can obtain the same production values of high frame rates, combined with the incredibly high resolution of Ultra HD, all down a single SDI BNC cable. 12G-SDI is multi rate so it also plugs into all your SD, HD-SDI, 3G-SDI and 6G-SDI equipment, and HyperDeck Studio 12G switches standards instantly, as it records whatever SDI signal is input and plays back whatever files you put on the SSD! Only 12G-SDI is the format of the future, that also connects to all the equipment you have today!
Full 10-bit Quality
Record 10-bit 4:2:2 broadcast quality video
HyperDeck Studio 12G
HyperDeck Studio Pro
HyperDeck Studio
12G-SDI
Video: 2160p60
6G-SDI
Video: 2160p30
3G-SDI
Video: 1080p30
HyperDeck Studio records SD/HD 10-bit 4:2:2 uncompressed video for perfect broadcast quality. With uncompressed video you can create the sharpest VFX plates for match moving, compositing and more. You get deep dynamic color range for color correction and perfect keying without jagged edges. You can also use industry standard compressed video formats that maintain incredible HD quality at reduced files sizes. With HyperDeck Studio 12G and HyperDeck Studio Pro you can now push quality to new heights, with additional support for Ultra HD using multiple high quality ProRes file formats.
Industry Standard Formats
Record uncompressed, ProRes and DNxHD
HyperDeck Studio models gives you the choice of recording quality! You can record and play back incredible uncompressed 10-bit 4:2:2, or choose from high quality ProRes 422 HQ or DNxHD formats. HyperDeck Studio models have ProRes 422, ProRes 422 LT or ProRes 422 Proxyfor longer recording. Using ProRes 422 Proxy you can record over 24 hours of 1080HD video on a single 480GB SSD drive! You could record for 2 days non stop before swapping SSD drives!

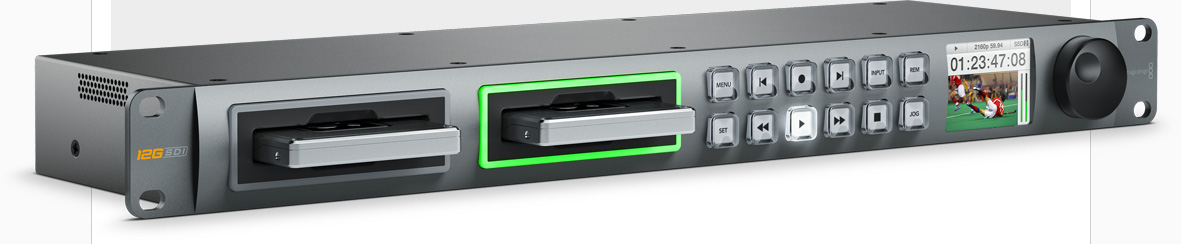

Unparalleled File Compatibility
Saves files that are ready to be used in production!
HyperDeck Studio records the widest compatible QuickTime files in 10-bit uncompressed or compressed formats. Depending on your format and frame rate, you can choose to record uncompressed QuickTime, ProRes or DNxHD files. That means you can instantly record files that will work with the most popular software packages such as DaVinci Resolve, Final Cut Pro X, Adobe Premiere Pro , After Effects, Media Composer and more. HyperDeck Studio gives you compatible files so you’re free to choose the editing, color correction and finishing tools that are best for your clients and their jobs.
Specs
Description
HyperDeck Studio Pro is the ultimate in compatibility and technology, featuring a more advanced design that includes 6G-SDI so you get SD, HD and Ultra HD formats, plus HyperDeck Studio Pro includes a wide range of video and audio connections in both analog and digital so you get the widest compatibility with older and newer equipment. Get SD, HD up to 1080p60 and Ultra HD up to 2160p30 all in the one deck! Also includes 6G-SDI and Quad SDI, HDMI 4K, analog component, balanced analog audio and AES/EBU audio compatibility. You even get built in Thunderbolt for computer capture and UltraScope software for live scopes!

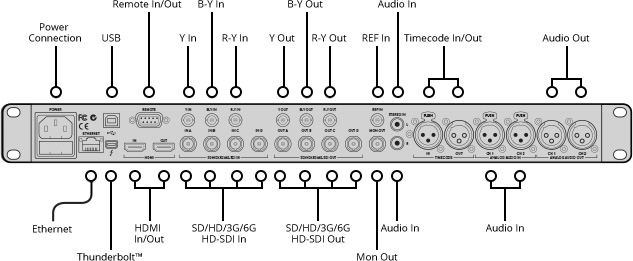

Connections
SDI Video Inputs
1
SDI Video Outputs
4, Single Link or Quad Link.
SDI Rates
270Mb, 1.5G, 3G, 6G.
HDMI Video Inputs
1 x HDMI type A connector including Ultra HD 4K support.
HDMI Video Outputs
1 x HDMI type A connector including Ultra HD 4K support.
Analog Video Inputs
Y, B-Y, R-Y
Analog Video Outputs
Y, B-Y, R-Y
Analog Audio Inputs
2 x XLR connectors for professional balanced analog audio. 2 x RCA connectors for unbalanced analog audio from consumer equipment.
Analog Audio Outputs
2 x XLR connectors for professional balanced analog audio.
Timecode Connection
1 x XLR in and 1 x XLR out.
SDI Audio Inputs
16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
SDI Audio Outputs
16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
HDMI Audio Inputs
8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
HDMI Audio Outputs
8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
Reference Input
Tri-Sync or Black Burst.
Recorder Configuration
Front panel configurable or USB 2.0 high speed interface.
Computer Interface
1 x type B USB 2.0 port for initial setup, software updates and HyperDeck Utility software control.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M Level B
SDI Metadata Support
Time Code: HD RP188. Closed Captioning: CEA-708.
Audio Sampling
Television standard sample rate of 48kHz and 24-bit
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
REC 601, REC 709
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media
Media
2 x SSD for SD, HD and Ultra HD recording.
Media Type
SATA-II or SATA-III solid state disc.
Media Format
Can format discs to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
Uncompressed QuickTime, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime, Avid DNxHD QuickTime and Avid DNxHD MXF up to 1080i60.
Computer Capture
Thunderbolt for Mac/Windows.
Control
Built in Control Panel
12 buttons for transport and menu control, 2.2 inch color display.
External Control
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol.
Software
Software Included
Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only).
Internal Software Upgrade
Firmware built into software driver. Loaded at system start, or via updater software.
Operating Systems
Mac 10.12 Sierra,
Mac 10.13 High Sierra or later.
Windows 8.1 or Windows 10.
Display
Built in LCD for video, audio and timecode monitoring and menu settings.

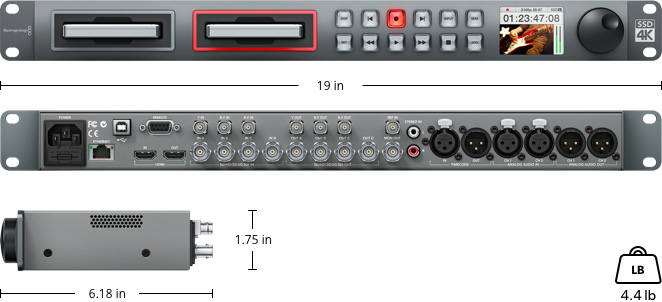

Physical Installation
1 rack unit size. Less than 7 inches deep.
Power Requirements
Power Supply
1x Internal 100 - 240V AC.
Physical Specifications
Environmental Specifications
Operating Temperature:
5° to 40° C (41°to 104° F)
Storage Temperature:
-20° to 45° C (-4° to 113° F)
Relative Humidity:
0% to 90% non-condensing
What's Included
HyperDeck Studio Pro
SD card with software, user manual, Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol.
Warranty
12 Month Limited Manufacturer’s Warranty.
