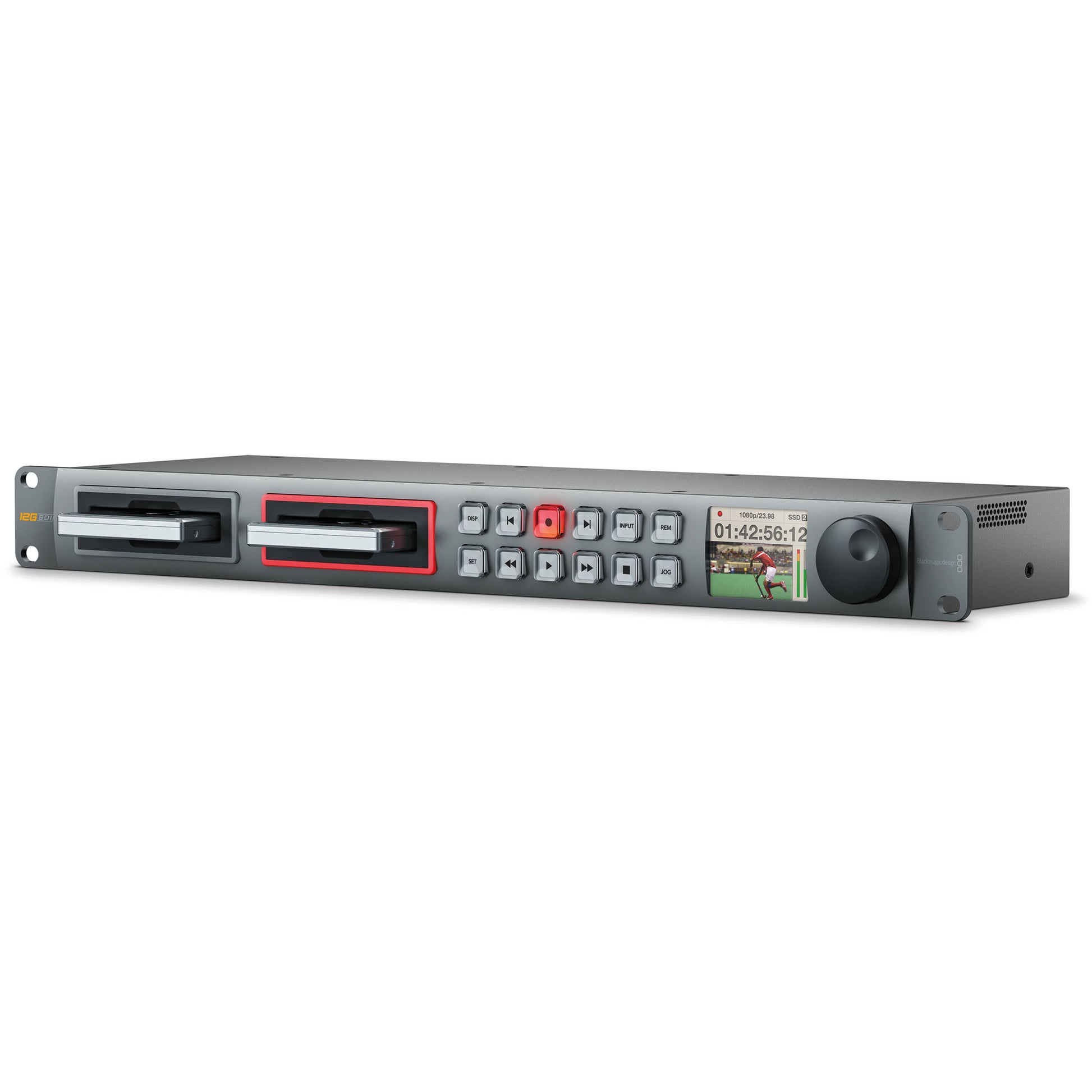

Blackmagic HyperDeck Studio 12G

MSRP: $1,495.00

Blackmagic

Specs

Description

When you need to go beyond 1080p30, HyperDeck Studio 12G is a more advanced version of HyperDeck Studio. Featuring 12G-SDI connections and HDMI 2.0, HyperDeck Studio 12G works with all SD, HD and Ultra HD formats up to 2160p60 over a single cable. You still get all of the benefits of HyperDeck Studio, including its familiar VTR style deck controls and broadcast quality compressed and uncompressed 10-bit 4:2:2 recording.

Connections

SDI Video Inputs

1

SDI Video Outputs

2

SDI Rates

270 Mb, 1.5G, 3G, 6G, 12G.

HDMI Video Inputs

HDMI 2.0 type A connector with support for Ultra HD 4K 10-bit 60p 4:2:2.

HDMI Video Outputs

HDMI 2.0 type A connector with support for Ultra HD 4K 10-bit 60p 4:2:2.

Analog Video Inputs

None

Analog Video Outputs

None

Analog Audio Inputs

None, embedded audio only.

Analog Audio Outputs

None, embedded audio only.

Timecode Connection

None

SDI Audio Inputs

16 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files.

SDI Audio Outputs

16 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files.

HDMI Audio Inputs

8 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files.

HDMI Audio Outputs

8 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files.

Reference Input

Tri-Sync or Black Burst.

Recorder Configuration

Front panel configurable or USB 2.0 high speed interface.

Computer Interface

1 x USB 2.0 Mini-B port for software updates and HyperDeck Utility software control.

HyperDeck Studio 12G

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M Level B

SDI Metadata Support

HD RP188 and closed captioning CEA-708.

Audio Sampling

Television standard 24-bit, 48 kHz sample rate.

Video Sampling

4:2:2

Color Precision

10-bit

Color Space

REC 601, REC 709, REC 2020 (playback only)

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Media

Media

2 x SSD for SD, HD and Ultra HD recording.

Media Type

SATA-II or SATA-III solid state disc.

Media Format

Can format discs to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs

Uncompressed QuickTime, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime, Avid DNxHD/HR QuickTime and Avid DNxHD/HR MXF.

Computer Capture

None

Control

Built in Control Panel

12 buttons for transport and menu control, 2.2 inch color display.

External Control

RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol.

Software

Software Included

Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only).

Internal Software Upgrade

Loaded at system start, or via updater software using USB port.

Operating Systems

Mac icon

Mac 10.12 Sierra,
Mac 10.13 High Sierra or later.

Windows Icon

Windows 8.1 or Windows 10.


Display

Built in LCD for video, audio and timecode monitoring and menu settings.

Physical Installation

1 rack unit size. Less than 7 inches deep.

Power Requirements

Power Supply

1 x Internal 100 - 240V AC.

Physical Specifications

HyperDeck Studio 12G

Environmental Specifications

Operating Temperature:

5° to 40° C (41°to 104° F)

Storage Temperature:

-20° to 45° C (-4° to 113° F)

Relative Humidity:

0% to 90% non-condensing

What's Included

HyperDeck Studio 12G

SD card with software, user manual, Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol

Warranty

12 Month Limited Manufacturer's Warranty.

-
+




HyperDeck Studio disk recorders let you record the highest quality uncompressed or compressed ProRes and DNxHD video formats using fast 2.5" SSDs. Designed with familiar VTR controls, HyperDeck Studio includes innovative features that extend beyond the capabilities of traditional decks. Dual SSD slots let you record continuously, so when one disk is full recording automatically continues on the next SSD. You can mount an SSD recorded from HyperDeck Studio on any computer to access your files, so you can work with your media directly without copying the files! There are three great HyperDeck Studio models to choose from depending on your budget and what video formats you need to work with!

Replace Aging Decks

Record broadcast quality 10-bit video

HyperDeck Studio is a fantastic modern replacement for aging broadcast decks. You get the same functionality and control of a professional deck with the advantage of recording directly to uncompressed or industry standard ProRes and DNxHD video formats. Connect cameras, switchers or any other video feed to HyperDeck Studio and create files that are perfect for every production and post production workflow! With a slim 1 rack unit design, HyperDeck Studio is considerably smaller than a traditional VTR and fits easily into any equipment rack, OB vehicle or flyway kit!

Replace Aging Decks

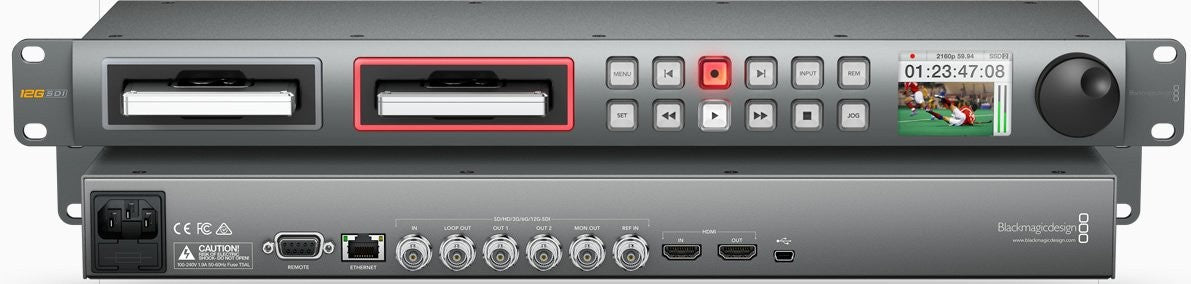

HyperDeck Studio 12G front and back12G-SDI Ultra HD icon

HyperDeck Studio 12G

When you need to go beyond 1080p30, HyperDeck Studio 12G is a more advanced version of HyperDeck Studio. Featuring 12G-SDI connections and HDMI 2.0, HyperDeck Studio 12G works with all SD, HD and Ultra HD formats up to 2160p60 over a single cable. You still get all of the benefits of HyperDeck Studio, including its familiar VTR style deck controls and broadcast quality compressed and uncompressed 10-bit 4:2:2 recording.

High Frame Rate Ultra HD

Record incredible high frame rate 2160p60 video!

2160 Ultra HD capturePlus button 2160 Ultra HD capture

The advanced HyperDeck Studio 12G model includes 12G-SDI which allows Ultra HD at higher frames up to 60 fps. For years broadcasters have used high frame rate 720p and 1080p HD to cover sport and other fast action events. Now with 12G-SDI, HyperDeck Studio 12G can record the same high frame rates in Ultra HD. Now broadcasters can obtain the same production values of high frame rates, combined with the incredibly high resolution of Ultra HD, all down a single SDI BNC cable. 12G-SDI is multi rate so it also plugs into all your SD, HD-SDI, 3G-SDI and 6G-SDI equipment, and HyperDeck Studio 12G switches standards instantly, as it records whatever SDI signal is input and plays back whatever files you put on the SSD! Only 12G-SDI is the format of the future, that also connects to all the equipment you have today!

Full 10-bit Quality

Record 10-bit 4:2:2 broadcast quality video

Full 10-bit Quality graph HyperDeck Studio 12G HyperDeck Studio Pro HyperDeck Studio 12G-SDI Video: 2160p60 6G-SDI Video: 2160p30 3G-SDI Video: 1080p30

HyperDeck Studio records SD/HD 10-bit 4:2:2 uncompressed video for perfect broadcast quality. With uncompressed video you can create the sharpest VFX plates for match moving, compositing and more. You get deep dynamic color range for color correction and perfect keying without jagged edges. You can also use industry standard compressed video formats that maintain incredible HD quality at reduced files sizes. With HyperDeck Studio 12G and HyperDeck Studio Pro you can now push quality to new heights, with additional support for Ultra HD using multiple high quality ProRes file formats.

Industry Standard Formats

Industry Standard Formats

Record uncompressed, ProRes and DNxHD

HyperDeck Studio models gives you the choice of recording quality! You can record and play back incredible uncompressed 10-bit 4:2:2, or choose from high quality ProRes 422 HQ or DNxHD formats. HyperDeck Studio models have ProRes 422, ProRes 422 LT or ProRes 422 Proxyfor longer recording. Using ProRes 422 Proxy you can record over 24 hours of 1080HD video on a single 480GB SSD drive! You could record for 2 days non stop before swapping SSD drives!

Unparalleled File Compatibility

Saves files that are ready to be used in production!

HyperDeck Studio records the widest compatible QuickTime files in 10-bit uncompressed or compressed formats. Depending on your format and frame rate, you can choose to record uncompressed QuickTime, ProRes or DNxHD files. That means you can instantly record files that will work with the most popular software packages such as DaVinci Resolve, Final Cut Pro X, Adobe Premiere Pro , After Effects, Media Composer and more. HyperDeck Studio gives you compatible files so you’re free to choose the editing, color correction and finishing tools that are best for your clients and their jobs.

ProRes icon DNxHD icon Unparalleled File Compatibility

Specs

Description

When you need to go beyond 1080p30, HyperDeck Studio 12G is a more advanced version of HyperDeck Studio. Featuring 12G-SDI connections and HDMI 2.0, HyperDeck Studio 12G works with all SD, HD and Ultra HD formats up to 2160p60 over a single cable. You still get all of the benefits of HyperDeck Studio, including its familiar VTR style deck controls and broadcast quality compressed and uncompressed 10-bit 4:2:2 recording.

Connections

SDI Video Inputs

1

SDI Video Outputs

2

SDI Rates

270 Mb, 1.5G, 3G, 6G, 12G.

HDMI Video Inputs

HDMI 2.0 type A connector with support for Ultra HD 4K 10-bit 60p 4:2:2.

HDMI Video Outputs

HDMI 2.0 type A connector with support for Ultra HD 4K 10-bit 60p 4:2:2.

Analog Video Inputs

None

Analog Video Outputs

None

Analog Audio Inputs

None, embedded audio only.

Analog Audio Outputs

None, embedded audio only.

Timecode Connection

None

SDI Audio Inputs

16 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files.

SDI Audio Outputs

16 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files.

HDMI Audio Inputs

8 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files.

HDMI Audio Outputs

8 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files.

Reference Input

Tri-Sync or Black Burst.

Recorder Configuration

Front panel configurable or USB 2.0 high speed interface.

Computer Interface

1 x USB 2.0 Mini-B port for software updates and HyperDeck Utility software control.

HyperDeck Studio 12G

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M Level B

SDI Metadata Support

HD RP188 and closed captioning CEA-708.

Audio Sampling

Television standard 24-bit, 48 kHz sample rate.

Video Sampling

4:2:2

Color Precision

10-bit

Color Space

REC 601, REC 709, REC 2020 (playback only)

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Media

Media

2 x SSD for SD, HD and Ultra HD recording.

Media Type

SATA-II or SATA-III solid state disc.

Media Format

Can format discs to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs

Uncompressed QuickTime, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime, Avid DNxHD/HR QuickTime and Avid DNxHD/HR MXF.

Computer Capture

None

Control

Built in Control Panel

12 buttons for transport and menu control, 2.2 inch color display.

External Control

RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol.

Software

Software Included

Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only).

Internal Software Upgrade

Loaded at system start, or via updater software using USB port.

Operating Systems

Mac icon

Mac 10.12 Sierra,
Mac 10.13 High Sierra or later.

Windows Icon

Windows 8.1 or Windows 10.


Display

Built in LCD for video, audio and timecode monitoring and menu settings.

Physical Installation

1 rack unit size. Less than 7 inches deep.

Power Requirements

Power Supply

1 x Internal 100 - 240V AC.

Physical Specifications

HyperDeck Studio 12G

Environmental Specifications

Operating Temperature:

5° to 40° C (41°to 104° F)

Storage Temperature:

-20° to 45° C (-4° to 113° F)

Relative Humidity:

0% to 90% non-condensing

What's Included

HyperDeck Studio 12G

SD card with software, user manual, Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol

Warranty

12 Month Limited Manufacturer's Warranty.
