Desay H3, 4, 6.9 Outdoor Rental or Fixed Display

Desay

Parameter Value
Application envionment Outdoor Rental
Pixel pitch (mm) 3.906
Brightness (nits) 5000
Pixel configuration(R/G/B) SMD 3 in 1
Panel weight 12.5
Pixel per ㎡

65,536

Pixel matrix per panel 128×256
Display refresh rate (Hz) 3840
Input power (Max/Avg.) (w/㎡) 700/245
Panel size (W×H×D) (mm) 500×1000×90
Panel area (㎡) 0.5
Panel material Magnesium+Carbon fibre
Ingress protection (front/rear) IP65
Certification CE,RoHS,TUV
*Desay reserves the right to change any technical specifications without prior notice.



-
+





Inquire about Desay H3, 4, 6.9 Outdoor Rental or Fixed Display

This is where your TEXT BOX 1 goes

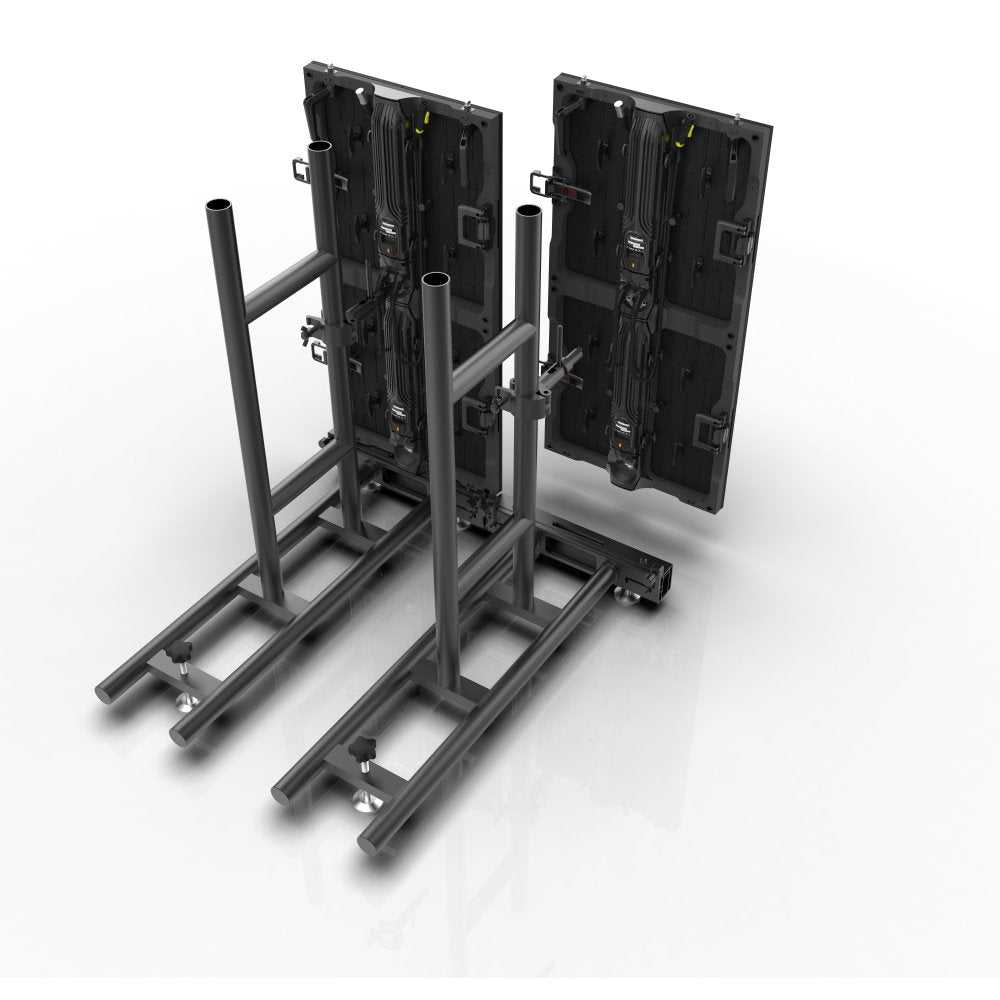

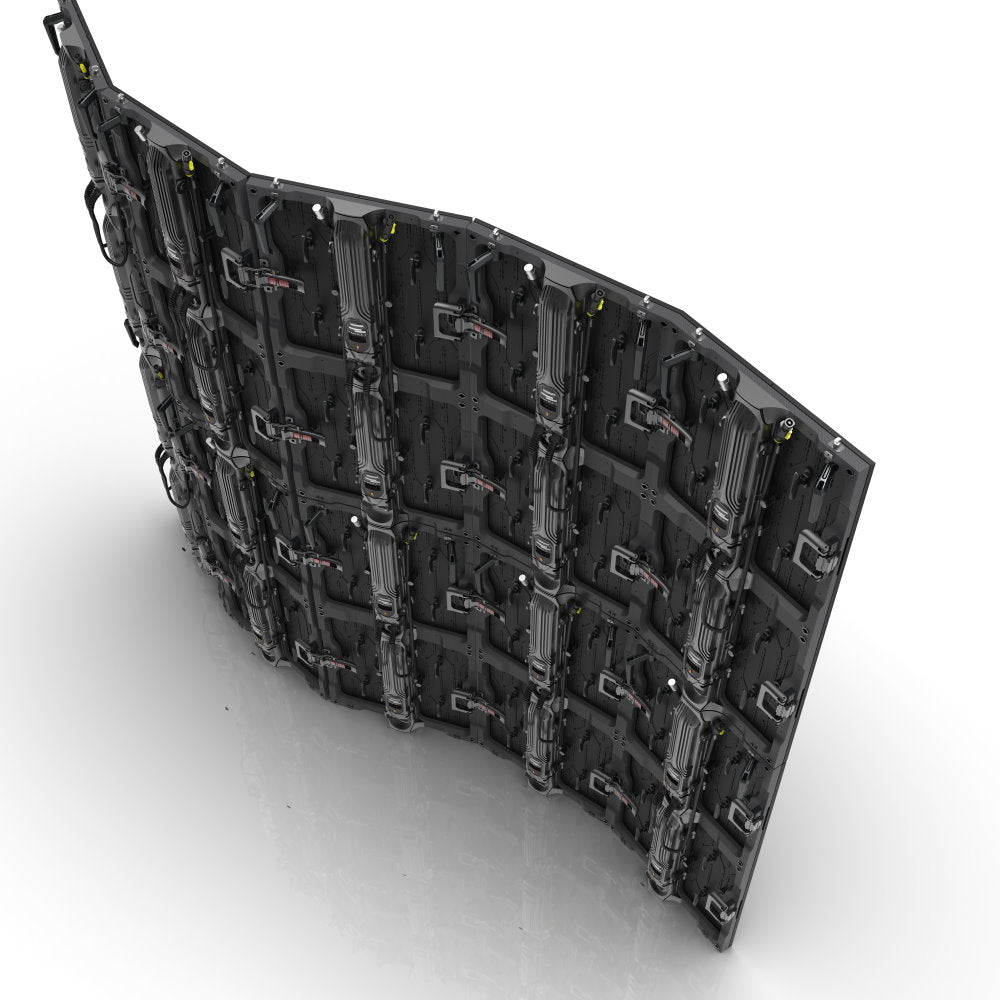

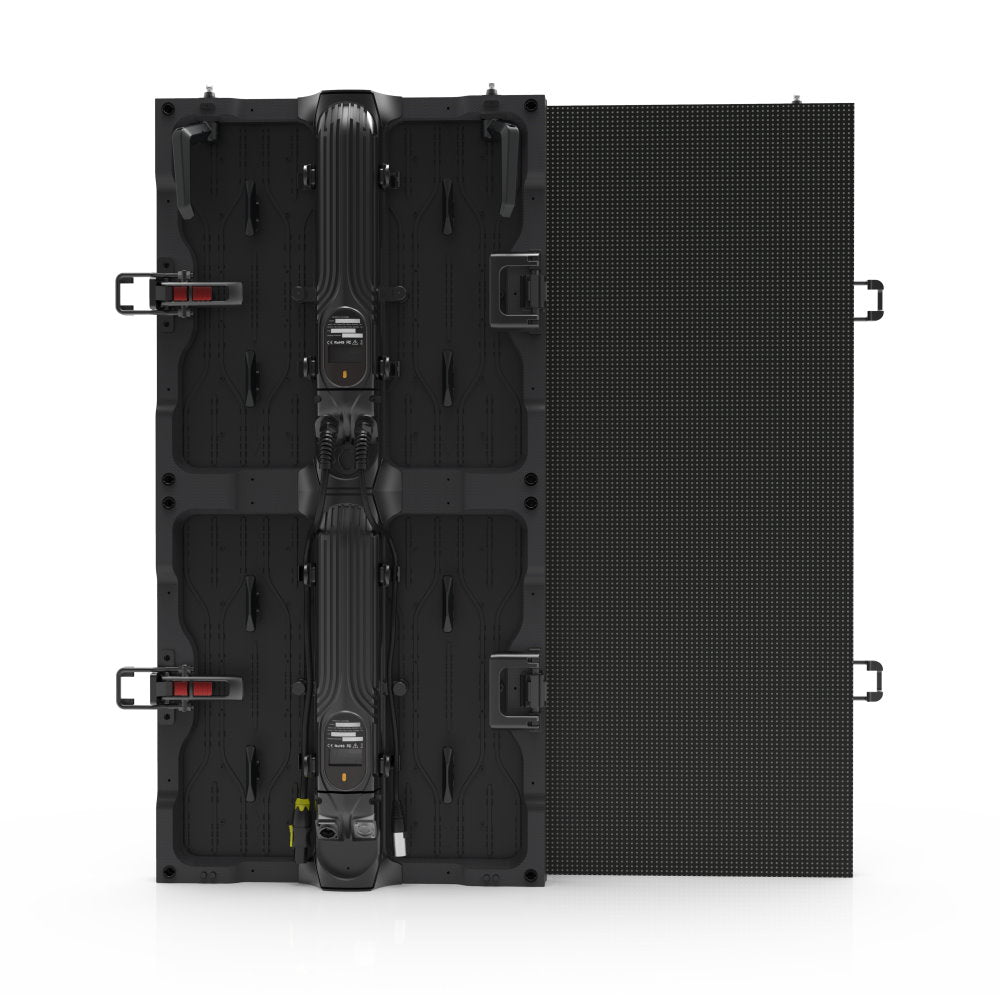

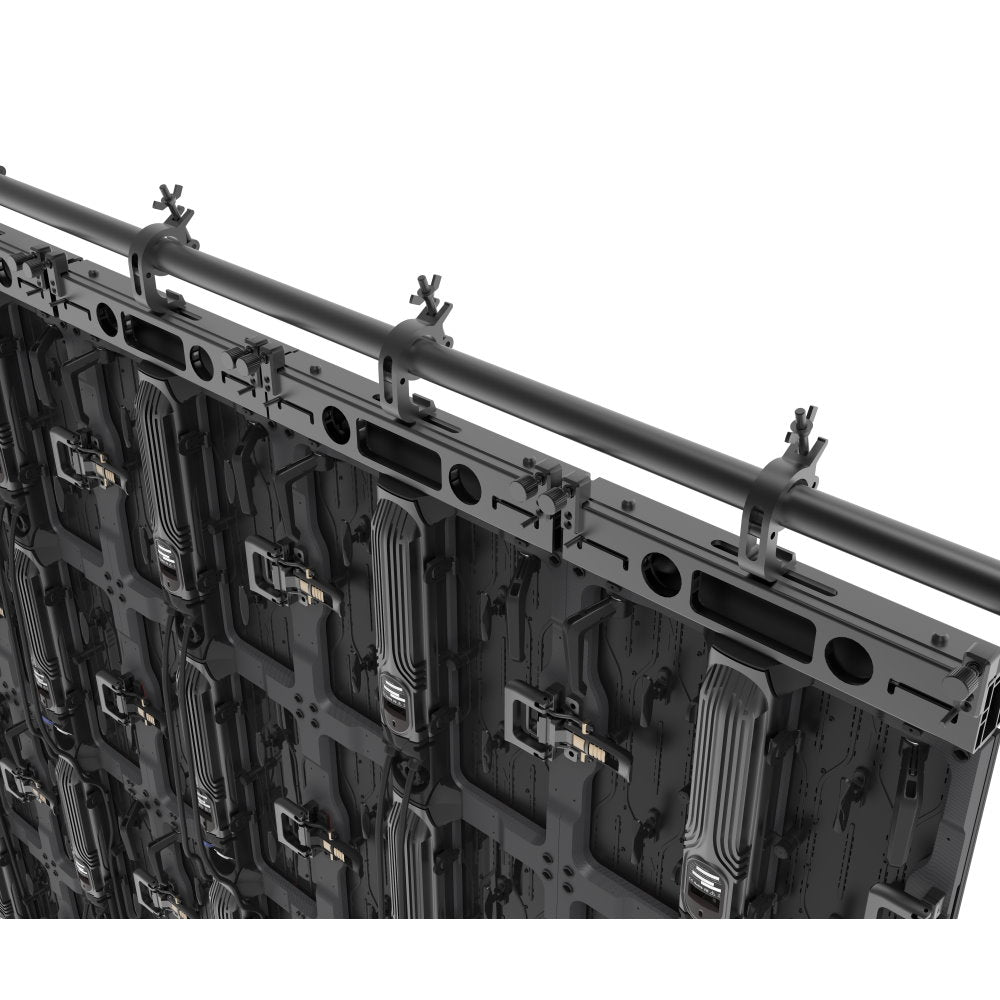

Desay H Series rental led panel adopts the novel carbon fiber material combined with die casting magnesium alloy, which is ultra light and very slim. The led module and power supply box is with excellent modular design, supporting quick plug-n-play and easy front and rear access. The patent curve lock supports ±3° and ±5° to create the concave or convex shape. In addition, the high refresh rate and high contrast ratio of H Series brings out the amazing displaying effect.




Parameter Value
Application envionment Outdoor Rental
Pixel pitch (mm) 3.906
Brightness (nits) 5000
Pixel configuration(R/G/B) SMD 3 in 1
Panel weight 12.5
Pixel per ㎡

65,536

Pixel matrix per panel 128×256
Display refresh rate (Hz) 3840
Input power (Max/Avg.) (w/㎡) 700/245
Panel size (W×H×D) (mm) 500×1000×90
Panel area (㎡) 0.5
Panel material Magnesium+Carbon fibre
Ingress protection (front/rear) IP65
Certification CE,RoHS,TUV
*Desay reserves the right to change any technical specifications without prior notice.
